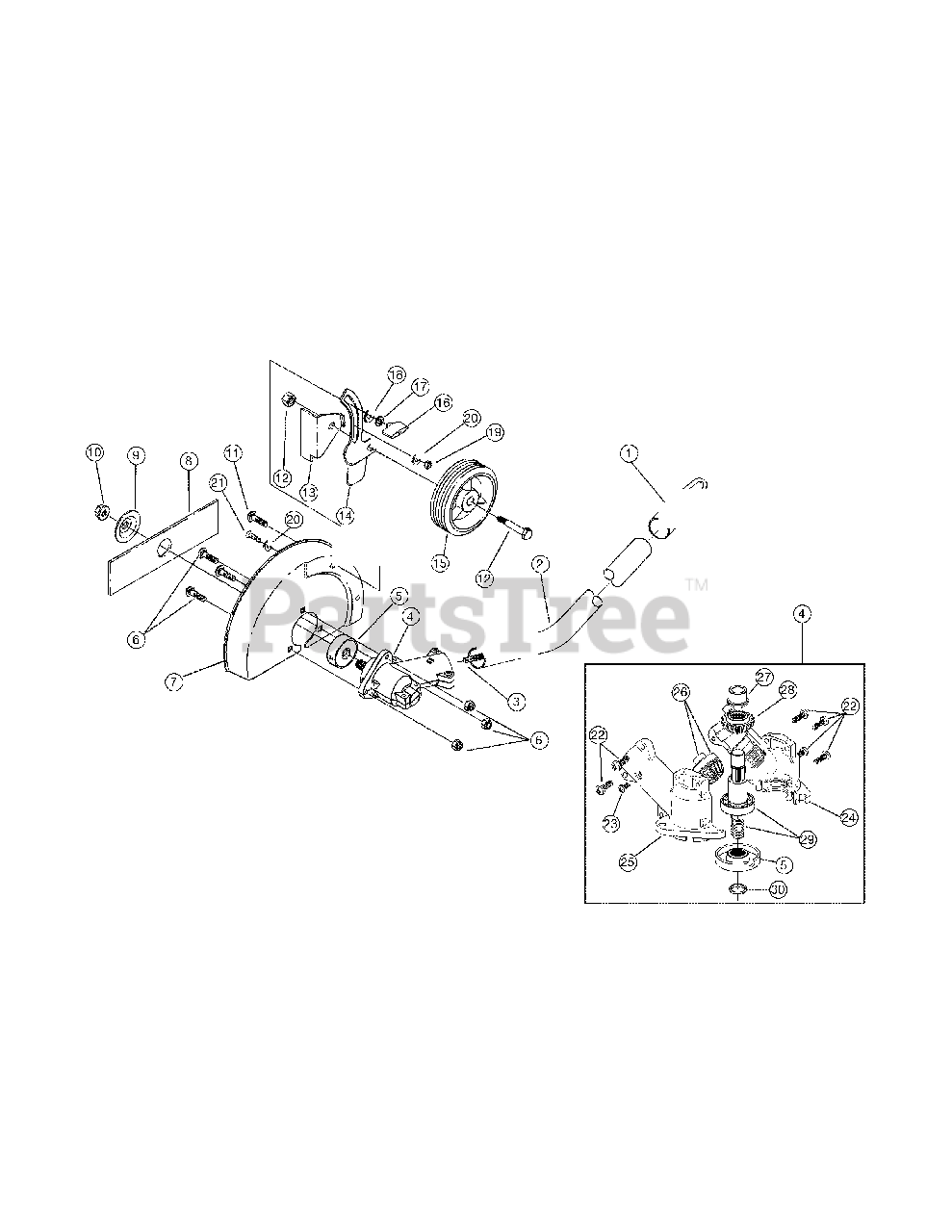

LE 720 R (41AJLE-A054) - Troy-Bilt Trimmer Plus Lawn Edger Attachment General Assembly Parts Diagram

Trimmer Plus Lawn Edger Attachment

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 791-612605

Hanger
(Superseded to 731-08926)

$2.49

$

In Stock, Qty 16

0

2

MTD 791-180915

Drive Shaft Housing Assembly

$

$

Not available

3

Troy-Bilt 791-181570

Drive Shaft Assembly

$57.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 791-182193

Gearbox Assembly (includes 5, 6, 10, 19 & 20)

$92.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 791-182196

Blade Driver

$20.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 753-1217

Shield Mount Screw Assembly

$2.99

$

In Stock, Qty 10

0

7

MTD 791-182294

Blade Shield

$

$

Not available

8

Troy-Bilt 791-613223B

Edger Blade

$12.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 791-147490

Retaining Washer

$10.99

$

In Stock, Qty 7

0

10

Troy-Bilt 791-147491

Lock Nut
(Superseded to 712-04105)

$9.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 791-182213

Shoulder Bolt
(Superseded to 710-0703)

$3.99

$

In Stock, Qty 20+

0

12

MTD 791-181591

Wheel Mounting Hardware

$

$

Not available

13

MTD 791-181592

Deflector

$

$

Not available

14

MTD 791-181593

Guide Bracket

$

$

Not available

15

MTD 791-181242

Wheel

$

$

Not available

16

MTD 791-182214

Adjustment Knob

$

$

Not available

17

Troy-Bilt 791-182215

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

18

Troy-Bilt 791-182216

Washer

$

$

Not available

19

Troy-Bilt 791-182237

Locknut

$

$

Not available

20

Troy-Bilt 791-182236

Washer

$5.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 791-181858

Screw

$

$

Not available

22

Troy-Bilt 791-182195

Gearbox Mounting Hardware

$6.99

$

In Stock, Qty 15

0

23

Troy-Bilt 791-145569

Anti-Rotation Screw

$9.49

$

In Stock, Qty 11

0

24

MTD 791-182191

Left Housing

$

$

Not available

25

MTD 791-182192

Right Housing

$

$

Not available

26

Troy-Bilt 791-182194

Pinion Gear Assembly

$29.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 791-182199

Output Shaft Bushing

$

$

Not available

28

Troy-Bilt 791-182198

Output Shaft Gear

$

$

Not available

29

Troy-Bilt 791-182197

Output Shaft Assembly (includes 27 & 28)

$

$

Not available

30

Troy-Bilt 753-04348

Palnut

$6.49

$

In Stock, only 1 left!

0

Troy-Bilt 791-613226

Locking Rod

Note: Not shown

$13.99

$

Usually ships in 3-6 days

0

Troy-Bilt 791-180014B

Blade Retainer Kit

Note: Not shown (includes 9 & 10)

$12.99

$

In Stock, only 1 left!

0
