LGT 1050 (13WQ92AP010) - Cub Cadet 50" Lawn Tractor (2012) Kohler SV730-3002 Oil Pan & Lubrication Parts Diagram

50" Lawn Tractor

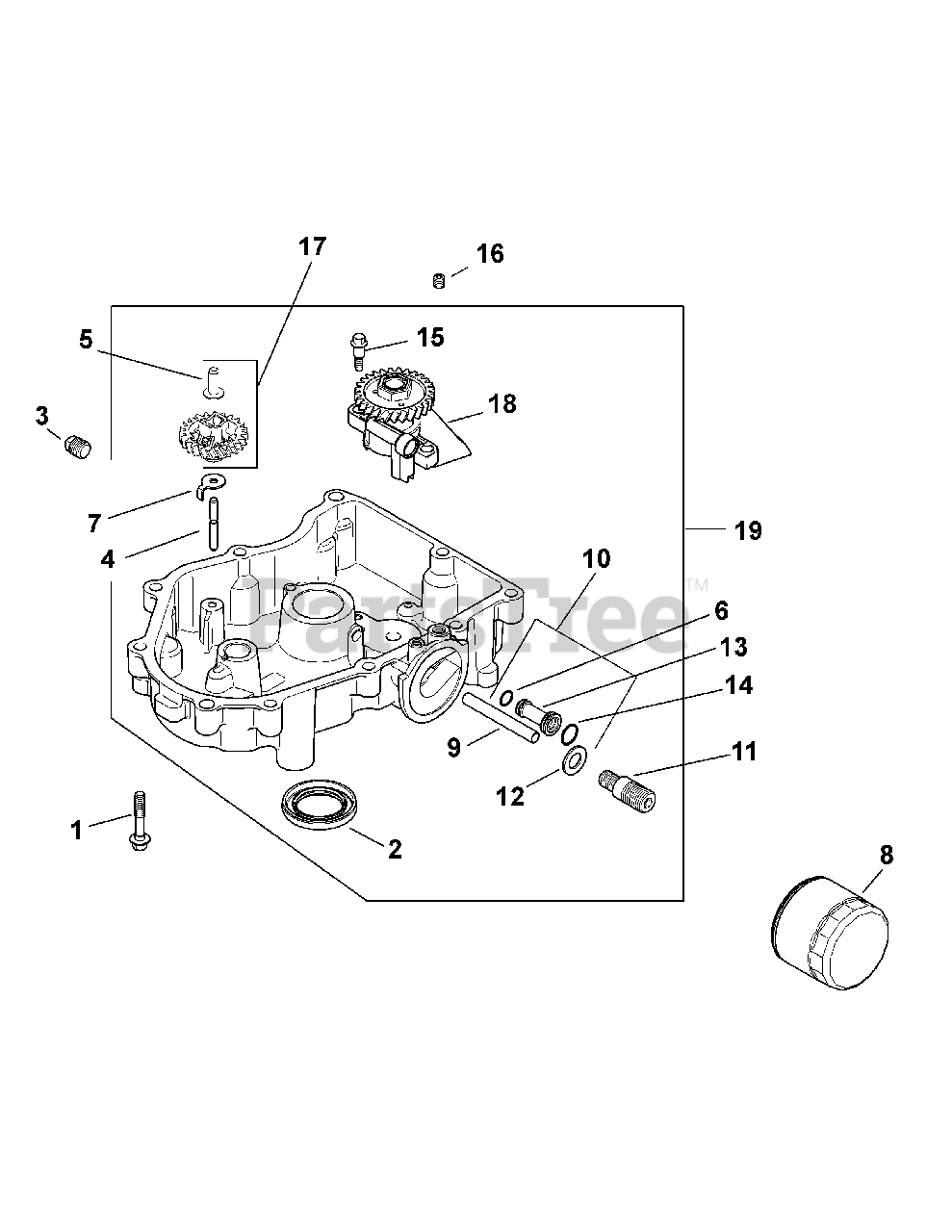

Kohler SV730-3002 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-086-17-S

Flg. Screw, M8 x 1.25 x 45

$2.49

$

In Stock, Qty 20+

0

2

Cub Cadet KH-25-032-06-S

Oil Seal

$10.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-25-139-57-S

Sq. Hd. PipePlug, 3/8

$2.49

$

In Stock, Qty 14

0

4

Cub Cadet KH-12-144-02

Governor Gear Shaft

$

$

Not available

5

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

6

Cub Cadet KH-24-153-01

Oil Pick-Up O-Ring

$

$

Not available

7

Cub Cadet KH-24-448-02-S

Locking Tab

$2.49

$

In Stock, only 2 left!

0

8

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-32-123-01-S

Oil Feed Tube - Filter To Pan

$

$

Not available

10

Cub Cadet KH-32-123-09-S

Oil Feed Tube Assembly

$2.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-32-136-05-S

Oil Filter Nipple

$

$

Not available

12

Cub Cadet KH-32-468-02-S

Flat Washer

$2.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-32-123-06-S

Oil Feed Tube

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-32-153-05-S

O-Ring

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-32-086-01-S

Shd. Thd. Frm. Screw, M6 x .0 x 6.5

$2.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-25-139-60-S

Pipe Plug, 1/8"

$3.49

$

In Stock, only 3 left!

0

17

Cub Cadet KH-32-310-02-S

Governor Gear Kit (Inc. 5)

$9.49

$

In Stock, only 1 left!

0

18

Cub Cadet KH-32-393-16-S

Oil Pump Assembly

$

$

Not available

19

Cub Cadet KH-32-199-14-S

Oil Pan Assembly
(Superseded to KH-32-199-15-S)

$

$

Not available
