LGT 1050 (13WQ92AP010) - Cub Cadet 50" Lawn Tractor (2014) Hydrostatic Transmission (Hydro-Gear 320-0610) Parts Diagram

50" Lawn Tractor

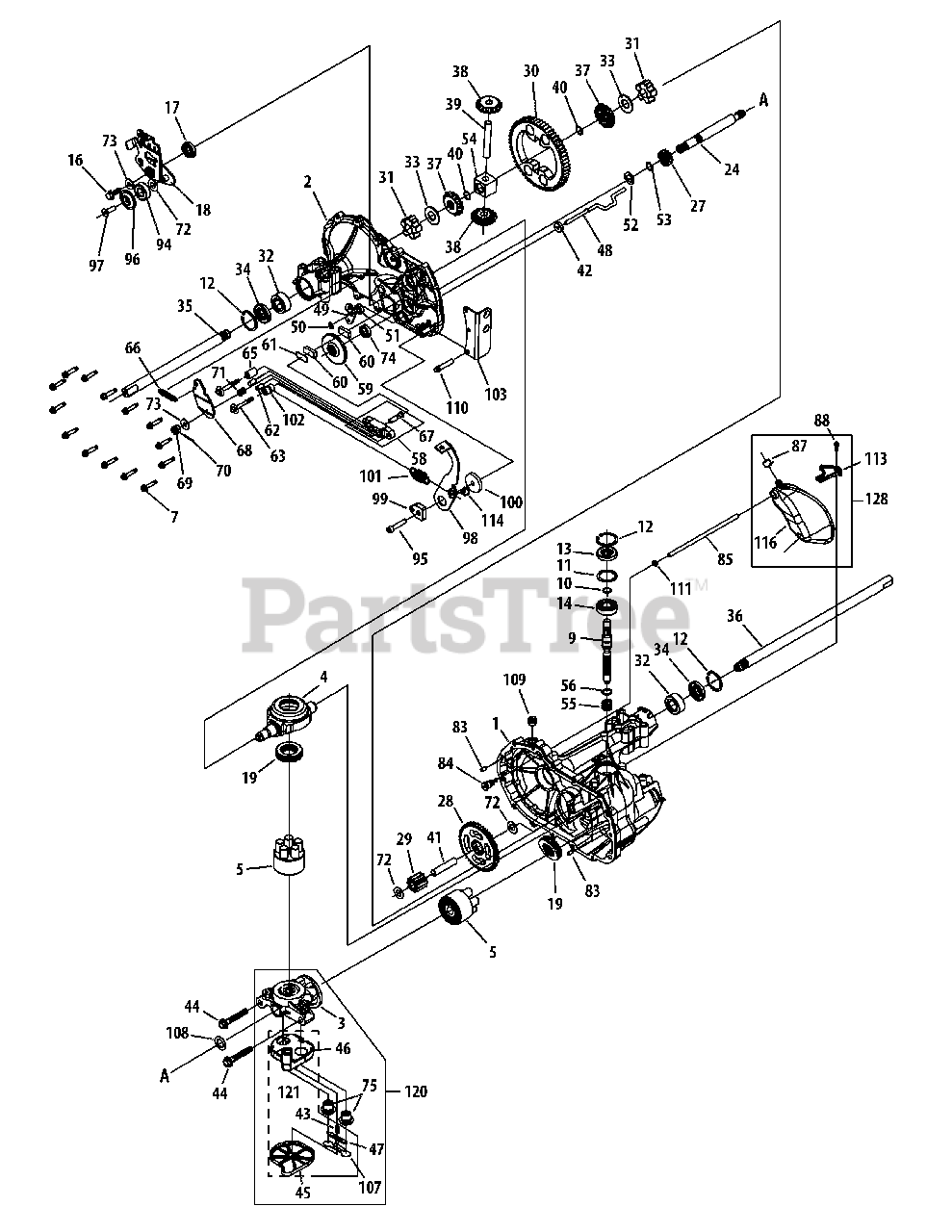

Hydrostatic Transmission (Hydro-Gear 320-0610) Parts Diagram

  • Title

1

Cub Cadet HG-70467

Main Housing Assembly

$246.99

$

In Stock, only 1 left!

0

1

Cub Cadet n/a

Main Housing, Machined

$

$

Currently unavailable

1

Cub Cadet n/a

Bushing ,865 x 985 x .790

$

$

Currently unavailable

2

Cub Cadet HG-70483

Main Housing Assembly

$159.99

$

Usually ships in 3-6 days

0

2

Cub Cadet n/a

Main Housing, Machined

$

$

Currently unavailable

2

Cub Cadet n/a

Bushing ,865 x 985 x .790

$

$

Currently unavailable

2

Cub Cadet n/a

Bushing 624 x 719 x . 562

$

$

Currently unavailable

3

Cub Cadet HG-70477

Center Section Assembly

$147.99

$

Usually ships in 3-6 days

0

3

Cub Cadet n/a

Center Section Machined

$

$

Currently unavailable

3

Cub Cadet n/a

Bushing. 707 x . 788 x . 591

$

$

Currently unavailable

4

Cub Cadet HG-51048

Swashplate, Trunnion Machined

$82.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-70331

Block - Assembly

$175.99

$

Usually ships in 3-6 days

0

5

Cub Cadet n/a

Block - Cylinder

$

$

Currently unavailable

5

Cub Cadet n/a

Piston

$

$

Currently unavailable

5

Cub Cadet n/a

Spring, Compression

$

$

Currently unavailable

5

Cub Cadet n/a

Washer - Thrust

$

$

Currently unavailable

7

Cub Cadet HG-53246

Hex Flange Screw 1/4-20 x-1,25

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet HG-51062

Shaft, Input
(Superseded to HG-51062P)

$124.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2000022

Ring - Retaining

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-50951

Spacer

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-50329

Ring - Retaining

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet HG-51161

SeaL Lip .67 x 1.58 x .276

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-50315

Ball Bearing 17mm Id x 40mm Od

$16.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-51064

Bolt. Flange 5/16-24 x .94 (Patch)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet HG-51140

Lip Seal 18 x 32 x 7

$9.49

$

Usually ships in 3-6 days

0

18

Cub Cadet HG-51119

Arm Control

$39.99

$

Usually ships in 3-6 days

0

19

Cub Cadet HG-50551P

Bearing 30x52 x 13 Thrust

$27.99

$

Usually ships in 3-6 days

0

24

Cub Cadet HG-50966

Shaft Motor

$60.99

$

Usually ships in 3-6 days

0

27

Cub Cadet HG-51767

Gear - Pinnion 12t

$

$

Not available

28

Cub Cadet HG-51766

10t/49t Gear

$31.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-51043

Gear Jot Jackshaft

$26.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-71829

60t Bull Gear

$91.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-51088

Sleeve Bearing . 75 x 1.750 x .625

$10.99

$

In Stock, only 3 left!

0

32

Cub Cadet HG-51089

Sleeve Bearing .75 x 1.575 x ,625

$11.99

$

In Stock, only 4 left!

0

33

Cub Cadet HG-44875

Washer 3/4 Id x 1-1/2 Od x .13 Thk

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-51066

Lip Seal Axle Seal

$8.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-51079

Shaft Axle . 75 x 11. 39 ( Dd R. H, )

$70.99

$

Usually ships in 3-6 days

0

36

Cub Cadet HG-51078

Shaft Axle .75 x 17. 99 ( Dd, L, H.)

$81.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-51769

Miter Gear (Splined)

$15.99

$

In Stock, only 1 left!

0

38

Cub Cadet HG-51768

Miter Gear 15t (0 .5 Id)
(Superseded to HG-51830)

$44.99

$

Usually ships in 3-6 days

0

39

Cub Cadet HG-50146

Shaft

$

$

Not available

40

Cub Cadet HG-44871

Ring, Spiral Retaining

$3.99

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51083

Pin, Jackshaft

$30.99

$

Usually ships in 3-6 days

0

42

Cub Cadet HG-51100

Magnet, Ring

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet HG-51136

Spring, Bypass

Note: NLA

$

$

Not available

44

Cub Cadet HG-50016

Hydro Mtg Screw 3/8-24 x 2.5

$4.99

$

Usually ships in 3-6 days

0

45

Cub Cadet HG-51581

Bottom, Filter

$12.99

$

Usually ships in 3-6 days

0

46

Cub Cadet HG-51580

Base Filter W/ Poppet

$

$

Not available

47

Cub Cadet HG-51091

Actuator Bypass

$6.99

$

Usually ships in 3-6 days

0

48

Cub Cadet HG-51098

Rod Bypass Actuator

$23.99

$

Usually ships in 3-6 days

0

49

Cub Cadet HG-51135

Arm, Bypass

$7.99

$

In Stock, only 1 left!

0

50

Cub Cadet HG-51116

Retaining Ring 0.250 External

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet HG-51081

Seal, Lip . 741 x .250 x .250 Tc

$7.49

$

Usually ships in 3-6 days

0

52

Cub Cadet HG-44371

Flat Washer 5/8 Id x 1.0 Od x . 05

$14.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-44145

Retaining Ring

$3.99

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-51071

Bearing, Center Block

$

$

Not available

55

Cub Cadet HG-2003014

Spring - Helical Compression

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-2003017

Washer

$3.99

$

Usually ships in 3-6 days

0

58

Cub Cadet HG-62589

Kit, Brake Yoke

$42.99

$

Usually ships in 3-6 days

0

58

Cub Cadet n/a

Brake Yoke

$

$

Currently unavailable

58

Cub Cadet n/a

Sq. Hd, Bolt 5/16-24 Ribbed

$

$

Currently unavailable

59

Cub Cadet HG-51072

Rotor, Brake

$16.99

$

In Stock, Qty 7

0

60

Cub Cadet 917-0678

Brake Puck

$6.99

$

In Stock, Qty 20+

0

61

Cub Cadet 917-0682

Puck Plate

$9.49

$

In Stock, Qty 7

0

62

Cub Cadet 941-0343

Brake Actuating Pin
(Superseded to 741-0343)

$

$

Not available

63

Cub Cadet HG-51146

Hex Screw 1/4-20 x 2 w/ Patch

$3.49

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-23711

Spacer

$11.99

$

Usually ships in 3-6 days

0

66

Cub Cadet HG-51607

Kit, Spring

$

$

Not available

67

Cub Cadet n/a

So. Hd, Bolt 5/16-24- Ribbed

$

$

Currently unavailable

68

Cub Cadet HG-44094

Arm, Brake

$8.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 912-0273

Slotted Hex Nut 5/16-24

$4.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 914-0507

Cotter Pin 3/32 x 3/4

$4.49

$

In Stock, Qty 19

0

71

Cub Cadet HG-50919

Comp. Spring Brake Anti-Drag

$3.99

$

Usually ships in 3-6 days

0

72

Cub Cadet HG-50132

Washer, Ht .5 I. D. x 1 OD, x .032

$4.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 736-0371

Flat Washer, 11/32 ID x 7/8 OD

$4.49

$

In Stock, Qty 7

0

74

Cub Cadet HG-70719

Kit, Seal

$13.99

$

Usually ships in 3-6 days

0

74

Cub Cadet n/a

Oil, Seal 625 x Lo x .25

$

$

Currently unavailable

74

Cub Cadet n/a

Ring, Ret-Star Washer

$

$

Currently unavailable

74

Cub Cadet n/a

Bulletin, Shaft Seal

$

$

Currently unavailable

75

Cub Cadet HG-51084

Check Plug Assem, .027 Washer

$33.99

$

Usually ships in 3-6 days

0

83

Cub Cadet HG-9004800-2506

Pin, Standard Headless

$3.99

$

Usually ships in 3-6 days

0

84

Cub Cadet HG-51143

Fitting, 5/16 Sae 5/32 Tube

Note: NLA

$14.99

$

Usually ships in 3-6 days

0

85

Cub Cadet HG-51147

Hose, Expansion Tank

$4.99

$

Usually ships in 3-6 days

0

87

Cub Cadet HG-51251

Cap,. Vent

$

$

Not available

88

Cub Cadet HG-50653

Bolt, Self Tapping 10-32 x 112

$

$

Not available

94

Cub Cadet HG-44147

Ball Bearing .62 Id x 1,38 x 44

$34.99

$

Usually ships in 3-6 days

0

95

Cub Cadet HG-50837

Cap Screw, 5/16-24 x 1-112

$3.49

$

Usually ships in 3-6 days

0

96

Cub Cadet HG-51200

Spacer, Locating

$6.99

$

Usually ships in 3-6 days

0

97

Cub Cadet HG-50870

Screw, Sfhcs

$

$

Not available

98

Cub Cadet HG-51120

Arm, Return

$

$

Not available

99

Cub Cadet HG-51097

Puck, Adjusting

$10.99

$

Usually ships in 3-6 days

0

100

Cub Cadet HG-52493

Washer, .32 OD x 1.6 ID x .24

$4.99

$

Usually ships in 3-6 days

0

101

Cub Cadet HG-51131

Spring, Extension

$5.49

$

Usually ships in 3-6 days

0

102

Cub Cadet HG-51123

Spacer, .56 x .26 x .87

Note: NLA

$

$

Not available

103

Cub Cadet HG-51223

Bracket, Torque

$8.99

$

Usually ships in 3-6 days

0

107

Cub Cadet HG-51134

Deflector

$

$

Not available

108

Cub Cadet HG-51069

Washer, Motor Shaft .71 Id 1.15 Od

$3.99

$

Usually ships in 3-6 days

0

109

Cub Cadet HG-9005110-5600

Plug, SAE #6

$18.99

$

Usually ships in 3-6 days

0

110

Cub Cadet HG-50868

Torx Head Screw, 5/16-18

$2.99

$

Usually ships in 3-6 days

0

111

Cub Cadet HG-51144

O-Ring, .07 x .301 ID

$4.49

$

Usually ships in 3-6 days

0

113

Cub Cadet HG-51179

Bracket, Support Expansion Tank

$3.49

$

Usually ships in 3-6 days

0

114

Cub Cadet HG-51184

Spring Guide

$

$

Not available

116

Cub Cadet HG-70503

Silicon Sponge

$35.99

$

Usually ships in 3-6 days

0

120

Cub Cadet HG-71315

Center Section - Bypass Assm

$320.99

$

Usually ships in 3-6 days

0

120

Cub Cadet n/a

Center Section Machined

$

$

Currently unavailable

120

Cub Cadet n/a

Base Filter w/ Poppet

$

$

Currently unavailable

120

Cub Cadet n/a

Check Plug Assembly

$

$

Currently unavailable

120

Cub Cadet n/a

Spring Bypass

$

$

Currently unavailable

120

Cub Cadet n/a

Actuator Bypass

$

$

Currently unavailable

120

Cub Cadet n/a

Deflector

$

$

Currently unavailable

120

Cub Cadet n/a

Bottom, Filter

$

$

Currently unavailable

120

Cub Cadet n/a

Bushing, .707 x .788 x .591

$

$

Currently unavailable

121

Cub Cadet HG-70756

Filter Assembly

$25.99

$

Usually ships in 3-6 days

0

121

Cub Cadet n/a

Bottom Filter

$

$

Currently unavailable

121

Cub Cadet n/a

Base Filter w/ Poppet

$

$

Currently unavailable

121

Cub Cadet n/a

Spring Bypass

$

$

Currently unavailable

121

Cub Cadet n/a

Actuator Bypass

$

$

Currently unavailable

121

Cub Cadet n/a

Deflector

$

$

Currently unavailable

128

Cub Cadet HG-70503

Kit, Expansion Tank

$35.99

$

Usually ships in 3-6 days

0

121

Cub Cadet n/a

Tank, Expansion

$

$

Currently unavailable

121

Cub Cadet n/a

Cap, Vent

$

$

Currently unavailable

121

Cub Cadet n/a

Bolt, Self Tapping 10-32 x 1/2

$

$

Currently unavailable

121

Cub Cadet n/a

Bracket, Support Expansion Tank

$

$

Currently unavailable

121

Cub Cadet n/a

Silicon-Sponge 112 x 1/2 x 3/16

$

$

Currently unavailable

Cub Cadet HG-50928

Sealant

$96.99

$

Usually ships in 3-6 days

0

Cub Cadet HG-70463

Seal, O-Ring Kit

$39.99

$

Usually ships in 3-6 days

0

20w-50 Oil (78.8 oz)

$

$

Not available
