LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986)

Lawn Tractor

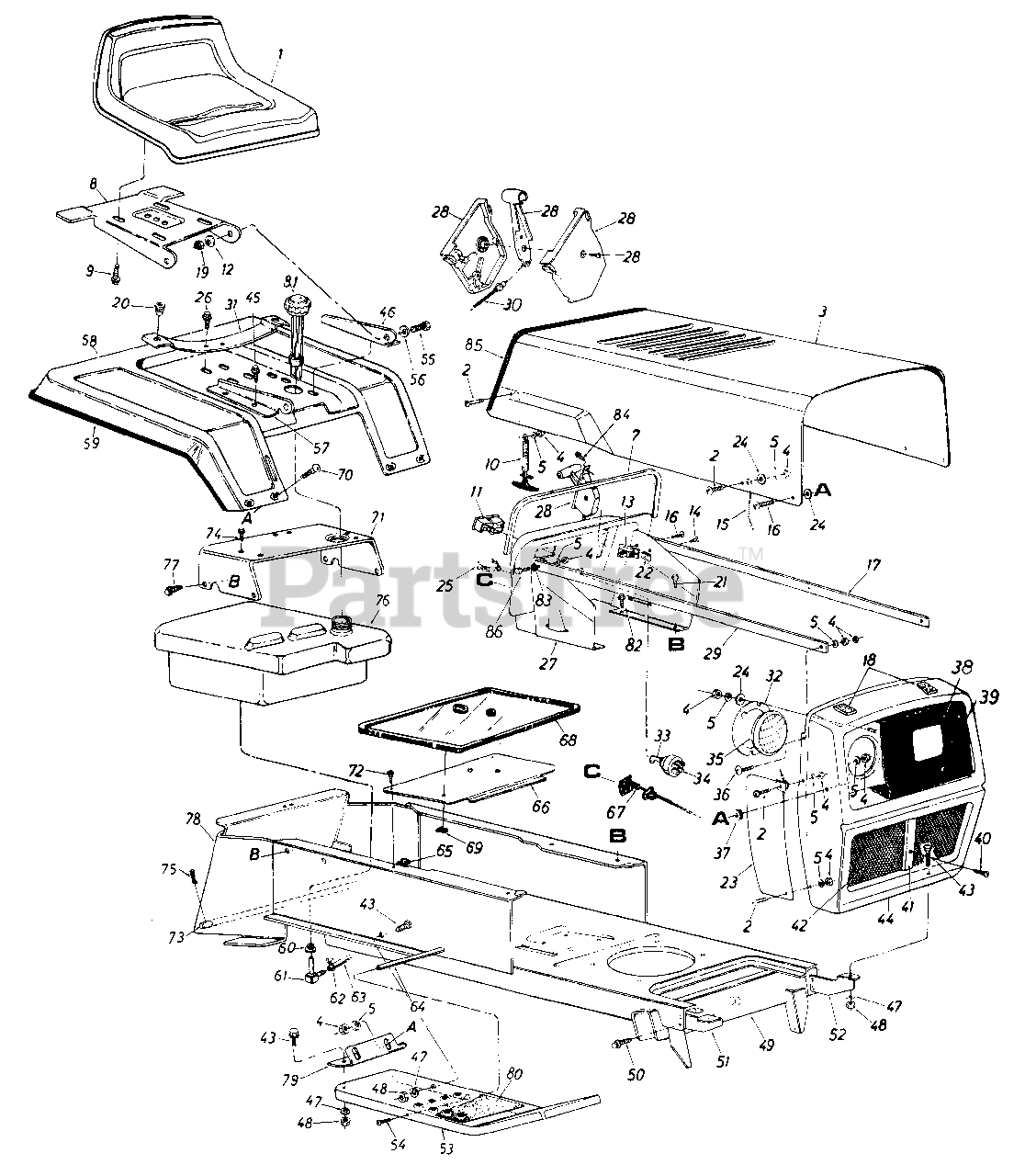

LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986) > Parts Diagrams (8) > Body Assembly

  • Title
757-0318

1

Seat Assembly

Part# 757-0318 (Superseded to 957-0318)

OEM Warranty Repair Part for White Outdoor

Not available

710-0286

2

Truss Mach. Scr. 1/4-20 x .50" Lg.*

Part# 710-0286

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

13808

3

Hood

Part# 13808

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

No Longer Available HOOD

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available HOOD

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

712-0287

4

Hex Nut 1/4-20 Thd.*

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

5

L-Wash. 1/4 " Scr. *

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

731-0511

7

Vinyl Molding Strip 29"

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.84

15067

8

Seat Pivot Bracket

Part# 15067

Not available

710-0623

9

Hex Wash. AD 0 AB-Tap Scr. 318 x .75" Lg.

Part# 710-0623

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

723-0296

10

Hood Latch Ass'y.

Part# 723-0296

OEM Warranty Repair Part for White Outdoor

Not available

725-0925

11

Ammeter

Part# 725-0925 (Superseded to 925-0925)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $21.86

736-0242

12

Bell-Wash. .34" I.D. x .88" O.D.

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

725-0459

13

Circuit Breaker 8 Amp.

Part# 725-0459 (Superseded to 753-0685)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $28.76

710-0599

14

Hex Tap Scr. #10 x .50" Lg.*

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

727-0199

15

Hood Stop

Part# 727-0199

OEM Warranty Repair Part for White Outdoor

Not available

710-0255

16

Truss Mach. Scr. 1/4-20 x .75" Lg.*

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

749-0651

17

Grille Positioning Rod

Part# 749-0651

OEM Warranty Repair Part for White Outdoor

Not available

722-0135

18

PVC Foam Strip 1/2 X 1.OO" x 2.00" Lg.

Part# 722-0135

OEM Warranty Repair Part for White Outdoor

Not available

712-0158

19

Hex Cent. L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.27

731-0555

20

Grommet

Part# 731-0555 (Superseded to 731-0555A)

OEM Warranty Repair Part for White Outdoor

Not available

710-0599

21

Hex Thd. Rolling Scr. 1/4" x .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

712-0344

22

Speed Nut #10Z

Part# 712-0344

OEM Warranty Repair Part for White Outdoor

Not available

14748

23

Grille Side Panel R.H.

Part# 14748

Not available

14749

Grille Side Panel L.H.

Part# 14749

Note: (Not Shown)

Not available

736-0173

24

Fl-Wash. '/4" I.D.

Part# 736-0173

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

725-1130

25

Light Switch

Part# 725-1130

OEM Warranty Repair Part for White Outdoor

Not available

710-0607

26

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

Part# 710-0607

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.82

16427

27

Dash Panel Ass'y.

Part# 16427

OEM Warranty Repair Part for White Outdoor

Not available

831-0823

28

Throttle Control Box Comp.

Part# 831-0823 (Superseded to 831-0823A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $24.29

749-0651

29

Grille Positioning Rod

Part# 749-0651

OEM Warranty Repair Part for White Outdoor

Not available

746-0634

30

Throttle Control Wire

Part# 746-0634 (Superseded to 946-0634)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.21

732-0431

31

Seat Spring

Part# 732-0431

Not available

09960

32

Head Lamp Retainer

Part# 09960

OEM Warranty Repair Part for White Outdoor

Not available

725-0201

33

Ignition Key

Part# 725-0201 (Superseded to 925-0201)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.91

725-0267

34

Ignition Switch

Part# 725-0267 (Superseded to 925-0267B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $26.44

725-0222

35

Head Lamp

Part# 725-0222 (Superseded to 925-0222)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $42.24

710-0255

36

Truss Machine Scr. 1/4-20 x . 75 " Lg .

Part# 710-0255 (Superseded to 710-0924)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

735-0144

37

Rubber Wash. .50" I.D. x 1.00 O.D. x .25 Thk.

Part# 735-0144

OEM Warranty Repair Part for White Outdoor

Not available

731-0465

38

Headlight Bezel

Part# 731-0465

OEM Warranty Repair Part for White Outdoor

Not available

710-0148

39

Hex Wash. Hd. Scr. #8-32 x .38" Lg.

Part# 710-0148

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0425

40

Truss Mach. Scr. #10-24 x .62" Lg.

Part# 710-0425

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.37

723-0347

41

Center Moulding

Part# 723-0347

Not available

13730

42

Grille Screen

Part# 13730

OEM Warranty Repair Part for White Outdoor

Not available

710-0118

43

Hex Scr. 5/16-18 x .75" Lg.*

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

13800

44

Grille Ass'y.

Part# 13800

Not available

710-0607

45

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

Part# 710-0607

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.82

15803

46

Seat Brkt. L.H.

Part# 15803

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

47

L-Wash. 5/16" Scr.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0267

48

Hex Nut 5/16-18 Thd.*

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

13820

49

Lower Frame Ass'y.

Part# 13820

OEM Warranty Repair Part for White Outdoor

Not available

710-0726

50

Hex Thd. Rolling AB 0 Scr. 5/16 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

13862

51

Grille Mount Brkt. R.H.

Part# 13862

OEM Warranty Repair Part for White Outdoor

Not available

13863

52

Grille Mount Brkt. L.H.

Part# 13863

OEM Warranty Repair Part for White Outdoor

Not available

16390

53

Running Board R.H.

Part# 16390

OEM Warranty Repair Part for White Outdoor

Not available

13827

Running Board L.H.

Part# 13827

Note: (Not Shown)

OEM Warranty Repair Part for White Outdoor

Not available

710-0323

54

Truss Mach. Scr. 5/16-18 x .75" Lg.*

Part# 710-0323

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.23

710-0118

55

Hex Bolt 5/16-18 x .75" Lg.*

Part# 710-0118 (Superseded to 710-3008)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

736-0242

56

Bell-Wash. .34" I.D. x .88" O.D.

Part# 736-0242

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

15802

57

Seat Brkt. R.H.

Part# 15802

OEM Warranty Repair Part for White Outdoor

Not available

15886

58

Rear Fender

Part# 15886

OEM Warranty Repair Part for White Outdoor

Variations

MTD/TROY-BILT RED (0638)

No Longer Available FENDER-RR

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

731-0511

59

Trim Strip 81" Lg.

Part# 731-0511

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.84

735-0149

60

Bushing

Part# 735-0149 (Superseded to 935-0149)

Note: (Gas Tank)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.16

751-3054

61

90ø Nipple

Part# 751-3054

Not available

726-0207

62

Hose Clamp

Part# 726-0207

OEM Warranty Repair Part for White Outdoor

Not available

751-0173

63

Gas Line 46" Lg.

Part# 751-0173 (Superseded to 751-10349-16)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.13

738-0435

64

Running Board Rod

Part# 738-0435

OEM Warranty Repair Part for White Outdoor

Not available

726-0130

65

Speed Nut

Part# 726-0130 (Superseded to 926-0130)

OEM Warranty Repair Part for White Outdoor

Not available

14023

66

Transmission Cover

Part# 14023

Not available

746-0613

67

Choke Control Comp.

Part# 746-0613 (Superseded to 946-0613A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $20.34

731-0752

68

Transmission Cover

Part# 731-0752

OEM Warranty Repair Part for White Outdoor

Not available

726-0230

69

Speed Nut 1/4" Stud

Part# 726-0230

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $19.19

710-0167

70

Carriage Bolt 1/4-20 x .50"

Part# 710-0167

OEM Warranty Repair Part for White Outdoor

Not available

15849

71

Seat Mounting Channel

Part# 15849

OEM Warranty Repair Part for White Outdoor

Not available

710-0351

72

B-Tap Scr. #10 x .50" Lg.

Part# 710-0351

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

738-0482

73

Hitch Rod

Part# 738-0482

OEM Warranty Repair Part for White Outdoor

Not available

710-0607

74

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

Part# 710-0607

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.82

714-0147

75

Internal Cotter Pin

Part# 714-0147

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.36

751-0367

76

Gas Tank

Part# 751-0367

OEM Warranty Repair Part for White Outdoor

Not available

710-0726

77

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

13813

78

Hitch Plate

Part# 13813

OEM Warranty Repair Part for White Outdoor

Not available

15846

79

Fender Brkt. R.H.

Part# 15846

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-FENDER-RH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

15847

Fender Brkt. L.H.

Part# 15847

OEM Warranty Repair Part for MTD

Variations

POWDER BLACK (0637)

No Longer Available BRACKET-FENDER-LH

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

731-0755

80

Foot Pad

Part# 731-0755

OEM Warranty Repair Part for White Outdoor

Not available

751-0370

81

Gas Gauge

Part# 751-0370

OEM Warranty Repair Part for White Outdoor

Not available

710-0726

82

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

736-0222

83

External Wash. 1/4" I.D.

Part# 736-0222 (Superseded to 936-0222)

OEM Warranty Repair Part for White Outdoor

Not available

710-0779

84

Truss. Mach. Scr. #10 x .5" Lg.

Part# 710-0779 (Superseded to 710-0779A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.08

731-0551

85

Trim strip 30" Lg.

Part# 731-0551

Not available

710-0166

86

Truss Mach. Scr. 1/4-20 X 1.00

Part# 710-0166 (Superseded to 710-0166A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.02
