LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986)

Lawn Tractor

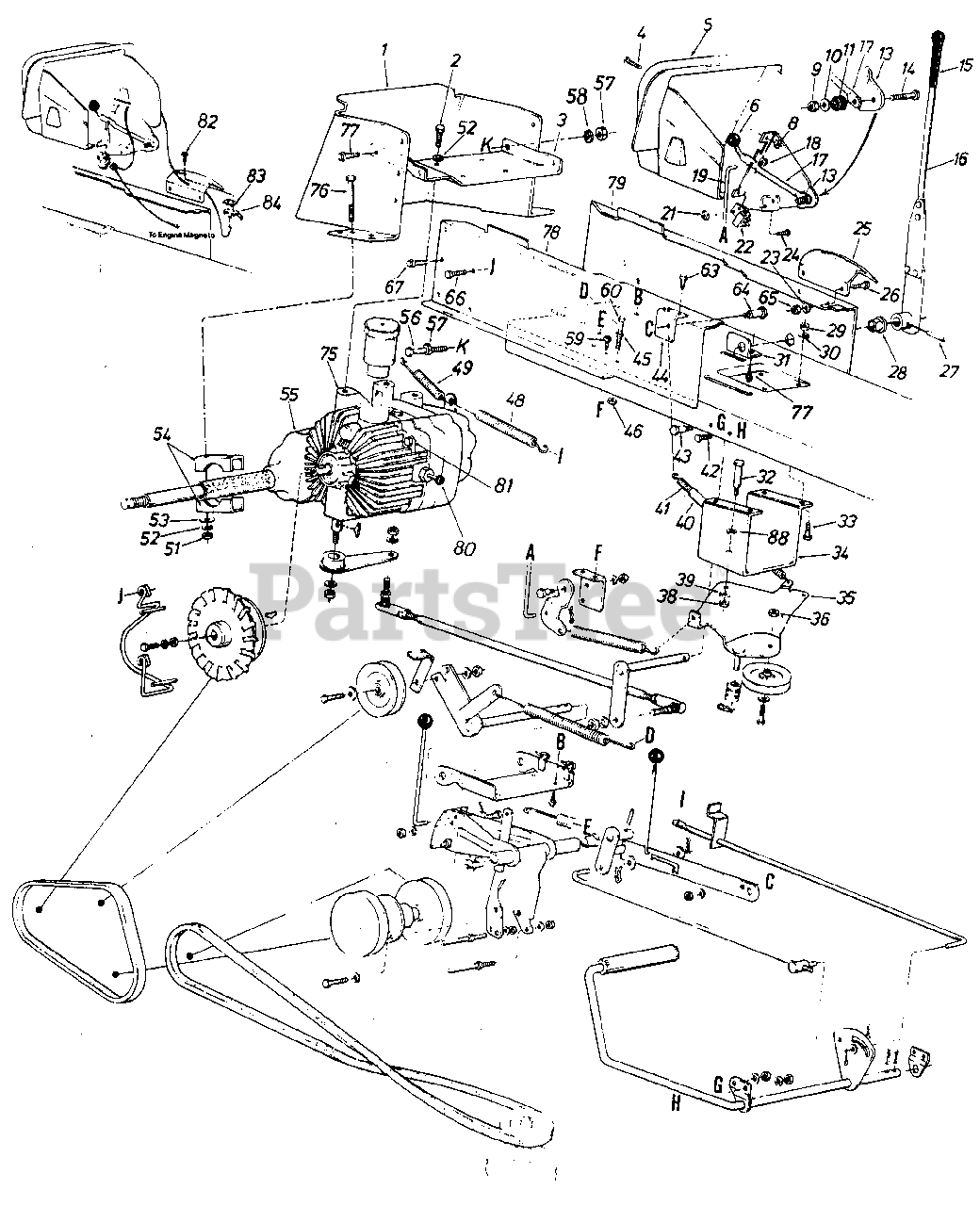

LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986) > Parts Diagrams (8) > Drive Assembly Part 1 Of 2

  • Title
13813

1

Hitch Plate

Part# 13813

OEM Warranty Repair Part for White Outdoor

Not available

710-0216

2

Hex Bolt 3/8-16 x .75" Lg.

Part# 710-0216

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.12

13835

3

Rear Axle Support Brkt.

Part# 13835

Not available

710-0286

4

Truss Mach. Scr. 1/4-20 X .50" Lg.*

Part# 710-0286

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

16427

5

Dash Panel Ass'y.

Part# 16427

OEM Warranty Repair Part for White Outdoor

Not available

720-0165

6

Knob Blade Clutch

Part# 720-0165 (Superseded to 920-0232)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.29

712-0271

8

Hex Sems Nut 1/4-20 Thd.

Part# 712-0271

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.03

712-0107

9

Hex Cent. L-Nut 1/4-20 Thd.

Part# 712-0107 (Superseded to 912-0107)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.26

736-0173

10

Fl-Wash. .28" I.D. x .74" O.D. x .063

Part# 736-0173

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

735-0126

11

Rubber Wash. .33" I.D. x 87" O.D. x .30

Part# 735-0126 (Superseded to 735-0126A)

OEM Warranty Repair Part for White Outdoor

Not available

13950

13

Deck Clutch Cont. Brkt.

Part# 13950

OEM Warranty Repair Part for White Outdoor

Not available

710-0106

14

Hex Bolt 1/4-20 x 1.25" Lg.

Part# 710-0106

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

720-0143

15

Grip

Part# 720-0143

OEM Warranty Repair Part for White Outdoor

Not available

14038

16

Control Arm Ass'y.

Part# 14038

Not available

747-0513

17

Blade Clutch Lever

Part# 747-0513

OEM Warranty Repair Part for White Outdoor

Not available

726-0106

18

Push Nut 1/4" O.D. Rod

Part# 726-0106 (Superseded to 926-0106)

OEM Warranty Repair Part for White Outdoor

Not available

747-0307

19

Deck Control Rod

Part# 747-0307

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $44.79

712-0121

21

Hex Nut #10-24 Thd.

Part# 712-0121 (Superseded to 912-0121)

OEM Warranty Repair Part for White Outdoor

Not available

725-0465

22

Safety Switch

Part# 725-0465 (Superseded to 925-0465A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $21.29

736-0119

23

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

710-0473

24

Truss Mach. Scr. #10-24 x .50" Lg.

Part# 710-0473

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

14020

25

Speed Control Bracket

Part# 14020

OEM Warranty Repair Part for White Outdoor

Not available

710-0759

26

Hex Bolt 5/16-18 x .62" Lg.*

Part# 710-0759

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

715-0114

27

Spring Pin Spiral 1/4" Dia. x 1.5" Lg.

Part# 715-0114 (Superseded to 915-0114)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.89

741-0225

28

Hex Flange Brg.

Part# 741-0225 (Superseded to 941-0225)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.20

712-0267

29

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

30

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

14035

31

Speed Control Shaft Brkt.

Part# 14035

Not available

738-0155

32

Shld. Scr. .437" Dia. x .162" Lg.

Part# 738-0155 (Superseded to 938-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

710-0376

33

Hex Bolt 5/16-18 x 1.00" Lg.

Part# 710-0376

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.91

13826

34

Idler Support Brkt.

Part# 13826

OEM Warranty Repair Part for White Outdoor

Not available

13893

35

Idler Brkt. Ass'y.

Part# 13893

Not available

712-0181

36

Hex L-Nut 3/8-16 Thd.

Part# 712-0181 (Superseded to 912-0181)

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

38

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

39

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

731-0483

40

Convoluted Conduit .50" I.D.

Part# 731-0483 (Superseded to 731-0757-4)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $11.53

732-0308

41

Ext. Spring .50" O.D. x 6.37" Lg.

Part# 732-0308 (Superseded to 732-0308A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.34

710-0201

42

Hex Bolt 3/8-16 x .62" Lg.

Part# 710-0201

OEM Warranty Repair Part for White Outdoor

Not available

738-0234

43

Shld. Scr. .50" Dia. x .395" Lg. (3/8-16)

Part# 738-0234

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.55

13833

44

Parking Brake Cam Mtg. Brkt.

Part# 13833 (Superseded to 13833A)

OEM Warranty Repair Part for White Outdoor

Not available

712-0267

45

Hex Nut 5/16-28 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

712-0158

46

Hex L-Nut 5/16-18 Thd.

Part# 712-0158 (Superseded to 912-0158)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.27

732-0413

48

Brake Tension Spring

Part# 732-0413 (Superseded to 932-0413)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.53

732-0157

49

Ext. Spring Brake Return

Part# 732-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $10.64

712-0798

51

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0169

52

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0258

53

Fl-Wash. .390" I.D. x 1.00" O.D. x .125" Thk.

Part# 736-0258

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

13892

54

Rear Axle Bracket

Part# 13892

OEM Warranty Repair Part for White Outdoor

Not available

55

Transaxle

Part#

Note: (See Breakdown)

Not available

710-0501

56

Hex Bolt 1/4-20 x 2" Lg.

Part# 710-0501

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $5.02

712-0287

57

Hex Nut 1/4-20 Thd.

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-0329

58

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

710-0599

59

Hex Wash. Hd. Self-Tap Scr. 1/4-20 X .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

710-0442

60

Hex Bolt 5/16-18 x 1.50" Lg.

Part# 710-0442 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0599

63

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

738-0155

64

Shld. Scr. .437" Dia. x .162" Lg.

Part# 738-0155 (Superseded to 938-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

712-0267

65

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

710-0773

66

Hex Wash. Hd. Scr. 3/8-16 x .50" Lg.

Part# 710-0773

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.00

710-0726

67

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

717-0426

75

Hydrostatic Pump Comp.

Part# 717-0426

OEM Warranty Repair Part for White Outdoor

Not available

710-0316

76

Hex Bolt 3/8-16 x 3.5" Lg.

Part# 710-0316

OEM Warranty Repair Part for White Outdoor

Not available

710-0726

77

Hex AB-Tap Scr. 5/16 x .75" Lg.

Part# 710-0726

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.04

13849

78

Side Panel Upper Frame R. H.

Part# 13849

Not available

16445

79

Side Panel Upper Frame L. H.

Part# 16445

Not available

731-0493

80

Cap

Part# 731-0493

OEM Warranty Repair Part for White Outdoor

Not available

710-0492

81

Socket Hd. Bolt 3/8-16 x 2.75" Lg.

Part# 710-0492

OEM Warranty Repair Part for White Outdoor

Not available

710-0227

82

Hex Wash. Hd. Scr. #8 x .50" Lg.

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

726-0222

83

Insulator Nut Plate

Part# 726-0222 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

725-0759

84

Spring Switch

Part# 725-0759 (Superseded to 753-0579)

OEM Warranty Repair Part for White Outdoor

Not available

736-0141

88

Wave Washer

Part# 736-0141 (Superseded to 936-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81
