LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986)

Lawn Tractor

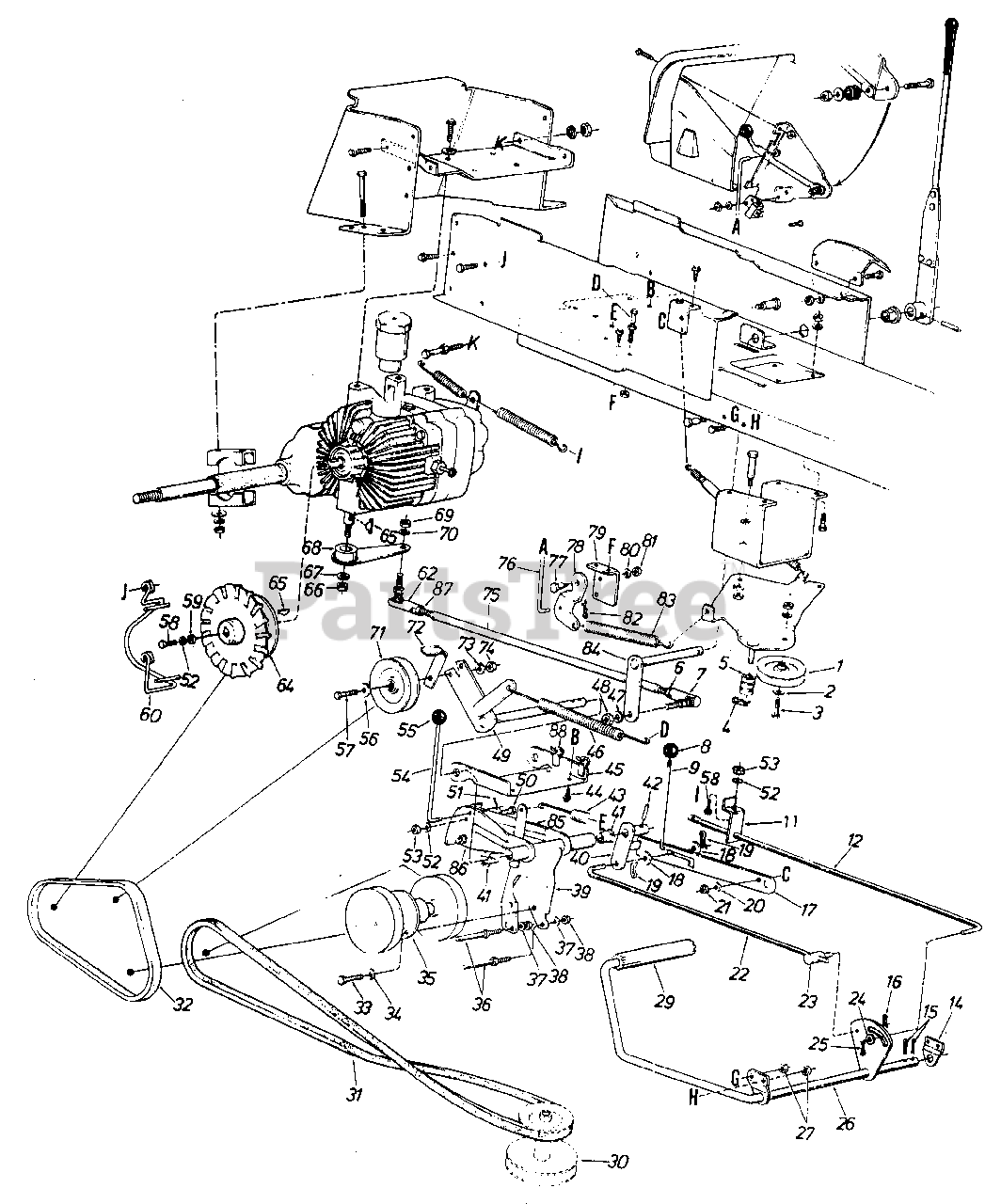

LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986) > Parts Diagrams (8) > Drive Assembly Part 2 Of 2

  • Title
756-0293

1

4" Dia. "V"-ldler Pulley

Part# 756-0293 (Superseded to 756-0487)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $36.07

736-0300

2

Fl-Wash. 3/8" I.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0342

3

Hex Bolt 3/8-16 x 1.25" Lg.

Part# 710-0342 (Superseded to 710-3005)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

714-0104

4

Intern. Cotter Pin 5116" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

748-0278

5

Spacer

Part# 748-0278 (Superseded to 948-0278)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $8.17

712-0711

6

Hex Jam L-Nut 3/8-24 Thd.

Part# 712-0711

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

723-0156

7

Ball Joint Ass'y. 3/8-24 Thd.

Part# 723-0156 (Superseded to 923-0156)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $12.34

720-0166

8

Ball Knob

Part# 720-0166

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.63

747-0300

9

Parking Brake Link

Part# 747-0300

Not available

14027

11

Brake Rod Hanger

Part# 14027

Not available

747-0400

12

Brake Rod

Part# 747-0400

OEM Warranty Repair Part for White Outdoor

Not available

13859

14

Clutch Rod Brg. Brkt.

Part# 13859

OEM Warranty Repair Part for White Outdoor

Not available

714-0115

15

Cotter Pin 118" Dia. x 1.00" Lg.

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.79

714-0145

16

Hairpin Cotter 1/2" Dia.

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for White Outdoor

Not available

13832

17

Parking Brake Cam

Part# 13832

OEM Warranty Repair Part for White Outdoor

Not available

736-0101

18

Fl-Wash. .406 I.D. x 1.00" O.D. x .030

Part# 736-0101 (Superseded to 936-0101)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.21

714-0145

19

Hairpin Cotter 1/2" Dia.

Part# 714-0145 (Superseded to 914-0145)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

20

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0267

21

Hex Nut 5/16-18 Thd.*

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

747-0306

22

Brake Cam Rod

Part# 747-0306

OEM Warranty Repair Part for White Outdoor

Not available

711-0198

23

Pivot Bushing

Part# 711-0198 (Superseded to 911-0198)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.66

736-0275

24

Fl-Wash. .401" I.D. x .749" O.D. x .057" Thk.

Part# 736-0275 (Superseded to 936-0275)

OEM Warranty Repair Part for White Outdoor

Not available

714-0507

25

Cotter Pin 3132" Dia. x .75" Lg.

Part# 714-0507 (Superseded to 914-0507)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

13856

26

Clutch Brake Pedal Ass'y.

Part# 13856

Not available

712-0375

27

Hex L-Nut 3/8-16 Thd.

Part# 712-0375

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

735-0196

29

Foot Pad

Part# 735-0196 (Superseded to 735-0239A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.63

756-0328

30

Two-Step Engine Pulley 4.75" and 5.56"

Part# 756-0328

OEM Warranty Repair Part for White Outdoor

Not available

754-0245

31

"V"-Belt 1/2" X 59" Lg.

Part# 754-0245 (Superseded to 954-0245)

OEM Warranty Repair Part for White Outdoor

Not available

754-0255

32

"V"-Belt 1/2" X 37" Lg.

Part# 754-0255 (Superseded to 954-0255)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $12.97

710-0198

33

Hex Sems Bolt 5/16-18 x .75" Lg.

Part# 710-0198 (Superseded to 910-0198)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

34

L-Wash. 5/16" I.D.

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

756-0324

35

Jack Shaft Ass'y.

Part# 756-0324

OEM Warranty Repair Part for White Outdoor

Not available

711-0696

36

Stud 3/8-16 x 3.62" Lg.

Part# 711-0696

Not available

736-0169

37

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

712-0798

38

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

13823

39

Jack Shaft Mtg. Brkt. Ass'y.

Part# 13823

OEM Warranty Repair Part for White Outdoor

Not available

13871

40

Clutch Idler Horn Ass'y.

Part# 13871

OEM Warranty Repair Part for White Outdoor

Not available

741-0295

41

Nyliner 5/8" I.D. x .88" Lg.

Part# 741-0295 (Superseded to 941-0591)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

715-0114

42

Spring Pin Spiral 1/4" Dia. x 1.5" Lg.

Part# 715-0114 (Superseded to 915-0114)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.89

732-0153

43

Ext. Spring

Part# 732-0153

Note: (Jack Shaft)

OEM Warranty Repair Part for White Outdoor

Not available

710-0599

44

Hex Wash. Hd. Self-Tap Scr. 1/4-20 X .50" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

13822

45

Idler Mtg. Brkt.

Part# 13822

OEM Warranty Repair Part for White Outdoor

Not available

732-0384

46

Ext. Spring

Part# 732-0384 (Superseded to 932-0384)

Note: (Drive Idler)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $10.52

736-0169

47

L-Wash. 3/8" I.D.*

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

712-0241

48

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

13815

49

Clutch Brkt. Ass'y.

Part# 13815

Not available

710-0289

50

Hex Bolt 1/4-20 x .50" Lg.

Part# 710-0289 (Superseded to 910-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

714-0104

51

Internal Cotter Pin 5/16" Dia. Rod

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

736-0329

52

L-Wash. 1/4" I.D.

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

712-0287

53

Hex Nut 1/4-20 Thd.*

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

747-0312

54

Relief Valve Lockout Rod

Part# 747-0312

Not available

720-0187

55

Ball Knob

Part# 720-0187

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.29

736-0300

56

Fl-Wash. 3/8" I.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

710-0342

57

Hex Bolt 3/8-16 x 1.25" Lg.

Part# 710-0342 (Superseded to 710-3005)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

710-0258

58

Hex Bolt 1/4-20 X .62" Lg.

Part# 710-0258 (Superseded to 710-0751)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.87

736-0176

59

Fl-Washer

Part# 736-0176 (Superseded to 936-0176)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

14016

60

Belt Guard Ass'y.

Part# 14016

OEM Warranty Repair Part for White Outdoor

Not available

723-0351

62

Ball Joint Ass'y. 3/8-24 L.H. Thd.

Part# 723-0351 (Superseded to 923-0351)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $31.15

756-0364

64

Transaxle Pulley w/ Fan

Part# 756-0364

Not available

714-0156

65

Hi-Pro Key 118" x 1/2" Dia.

Part# 714-0156

OEM Warranty Repair Part for White Outdoor

Not available

712-0798

66

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

736-0169

67

L-Wash. 3/8" I.D.*

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

14022

68

Pintle Arm Ass'y.

Part# 14022

Not available

712-0241

69

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

736-0169

70

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

756-0293

71

4" "V"-ldler Pulley

Part# 756-0293 (Superseded to 756-0487)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $36.07

13819

72

Belt Guard

Part# 13819

Note: (Clutch Idler)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available GUARD-BELT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

73

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

712-0798

74

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.06

747-0321

75

Speed Control Rod

Part# 747-0321

OEM Warranty Repair Part for White Outdoor

Not available

747-0307

76

Deck Control Rod

Part# 747-0307

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $44.79

738-0155

77

Shld. Scr. .437" Dia. x .162" Lg. (5/16-18)

Part# 738-0155 (Superseded to 938-0155)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

13887

78

Deck Control Pivot Brkt.

Part# 13887 (Superseded to 13887A)

OEM Warranty Repair Part for White Outdoor

Not available

13833

79

Parking Brake Cam Mtg. Brkt.

Part# 13833 (Superseded to 13833A)

OEM Warranty Repair Part for White Outdoor

Not available

736-0119

80

L-Wash. 5/16" I.D.*

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

712-0267

81

Hex Nut 5/16-18 Thd.

Part# 712-0267 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

714-0104

82

Internal Cotter Pin 5/16" Rod

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

732-0478

83

Extension Spring

Part# 732-0478 (Superseded to 932-0478)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.18

14034

84

Speed Control Shaft Ass'y.

Part# 14034

OEM Warranty Repair Part for White Outdoor

Not available

14025

85

Relief Valve Cam L.H.

Part# 14025

Not available

14026

86

Relief Valve Cam R.H.

Part# 14026

Not available

712-0312

87

Hex Jam L-Nut 3/8-24 L.H. Thd.

Part# 712-0312 (Superseded to 712-0312A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.97

726-0193

88

Plastic Hose Clamp

Part# 726-0193

OEM Warranty Repair Part for White Outdoor

Not available
