LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986)

Lawn Tractor

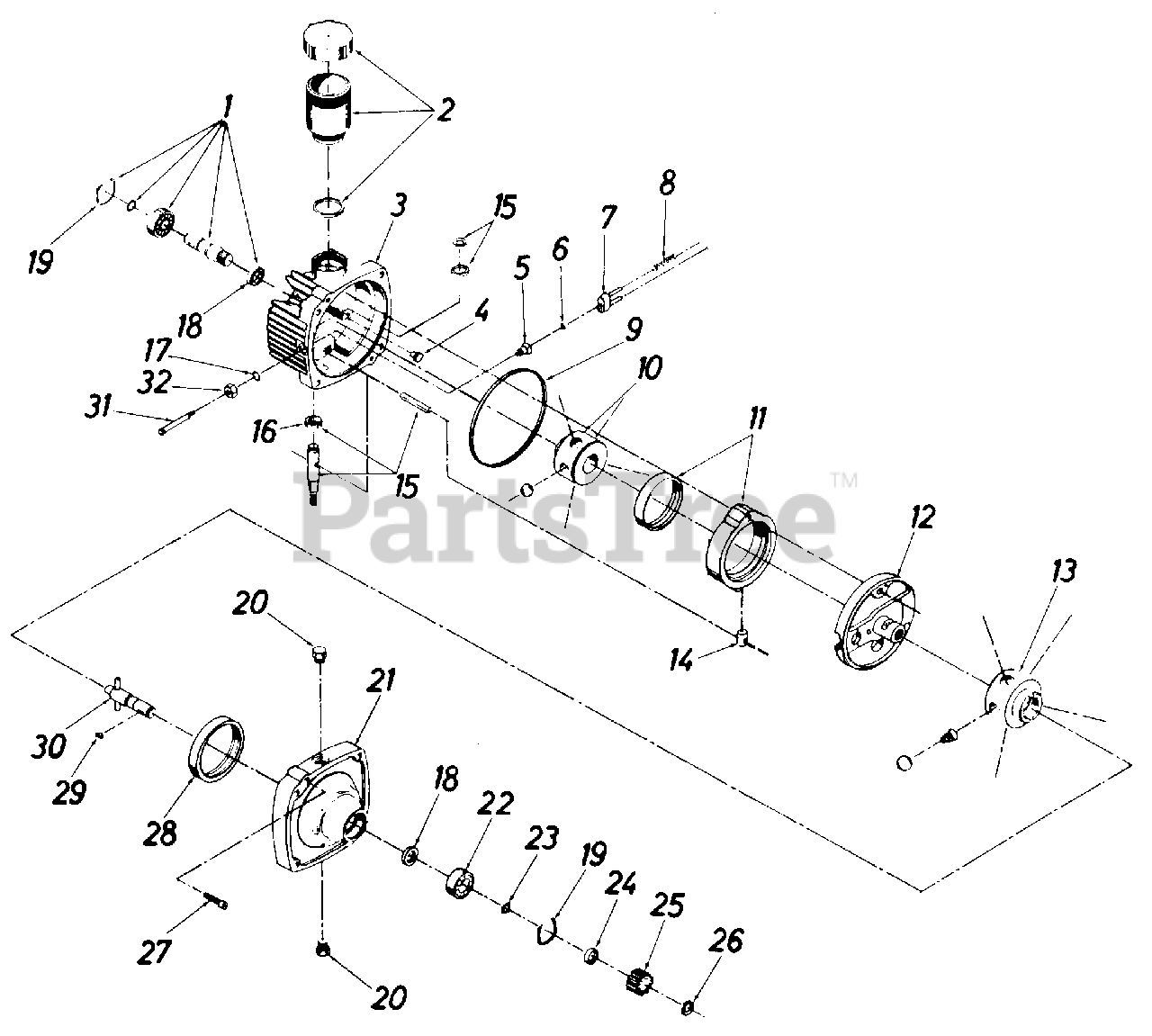

LGT-1455 (136-782-190) - White Outdoor Lawn Tractor (1986) > Parts Diagrams (8) > Hydrostatic Transmission Assembly

  • Title
ET-990067-000

1

Kit Input Shaft

Part# ET-990067-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-990077-000

2

Kit Reservoir

Part# ET-990077-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-990176-000

3

Kit Cover

Part# ET-990176-000

Not available

ET-101597-000

4

Button

Part# ET-101597-000

Not available

ET-024234-000

5

O-Ring Fitting Guide Subassembly

Part# ET-024234-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-008761-010

6

O-Ring

Part# ET-008761-010

OEM Warranty Repair Part for White Outdoor

Not available

ET-024166-000

7

Bracket Pins Subassembly

Part# ET-024166-000

Not available

ET-072149-000

8

Valve Spring

Part# ET-072149-000

Not available

ET-008771-162

9

Square Cut Seal Ring

Part# ET-008771-162

OEM Warranty Repair Part for White Outdoor

Not available

ET-022712-000

10

Pump Rotor Ball Subassembly

Part# ET-022712-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-102449-000

11

Cam Ring Subassembly

Part# ET-102449-000

Not available

ET-102532-000

12

Pintle Subassembly

Part# ET-102532-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-022711-000

13

Motor Rotor Ball Subassembly

Part# ET-022711-000 (Superseded to ET-104111-000)

OEM Warranty Repair Part for White Outdoor

Not available

ET-095203-000

14

Cam Ring Insert

Part# ET-095203-000

Not available

ET-990083-000

15

Kit Control Shaft

Part# ET-990083-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-093895-000

16

Oil Seal

Part# ET-093895-000 (Superseded to ET-093895-000P)

OEM Warranty Repair Part for White Outdoor

Not available

ET-008761-013

17

O-Ring .013

Part# ET-008761-013

OEM Warranty Repair Part for White Outdoor

Not available

ET-093955-000

18

Oil Seal

Part# ET-093955-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-091231-000

19

Retaining Ring

Part# ET-091231-000

Not available

ET-025090-006

20

O-Ring Plug Subassembly

Part# ET-025090-006

OEM Warranty Repair Part for White Outdoor

Not available

ET-032278-000

21

Body

Part# ET-032278-000

Not available

ET-090797-000

22

Ball Bearing

Part# ET-090797-000

Note: (Output)

OEM Warranty Repair Part for White Outdoor

Not available

ET-097121-000

23

Snap Ring

Part# ET-097121-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-095202-000

24

Spacer

Part# ET-095202-000

Not available

ET-040511-000

25

Drive Gear (12 Teeth)

Part# ET-040511-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-096098-066

26

External Retaining Ring

Part# ET-096098-066

OEM Warranty Repair Part for White Outdoor

Not available

ET-095912-125

27

Socket Hd. Scr. 5/16-18 x 1.25" Lg.

Part# ET-095912-125

Not available

ET-040519-000

28

Motor Race

Part# ET-040519-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-009476-000

29

Woodruff Key #3

Part# ET-009476-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-022892-000

30

Output Shaft Subassembly

Part# ET-022892-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-062240-000

31

Dump Valve Shaft

Part# ET-062240-000

OEM Warranty Repair Part for White Outdoor

Not available

ET-024235-000

32

Nut Gasket Subassembly

Part# ET-024235-000

OEM Warranty Repair Part for White Outdoor

Not available
