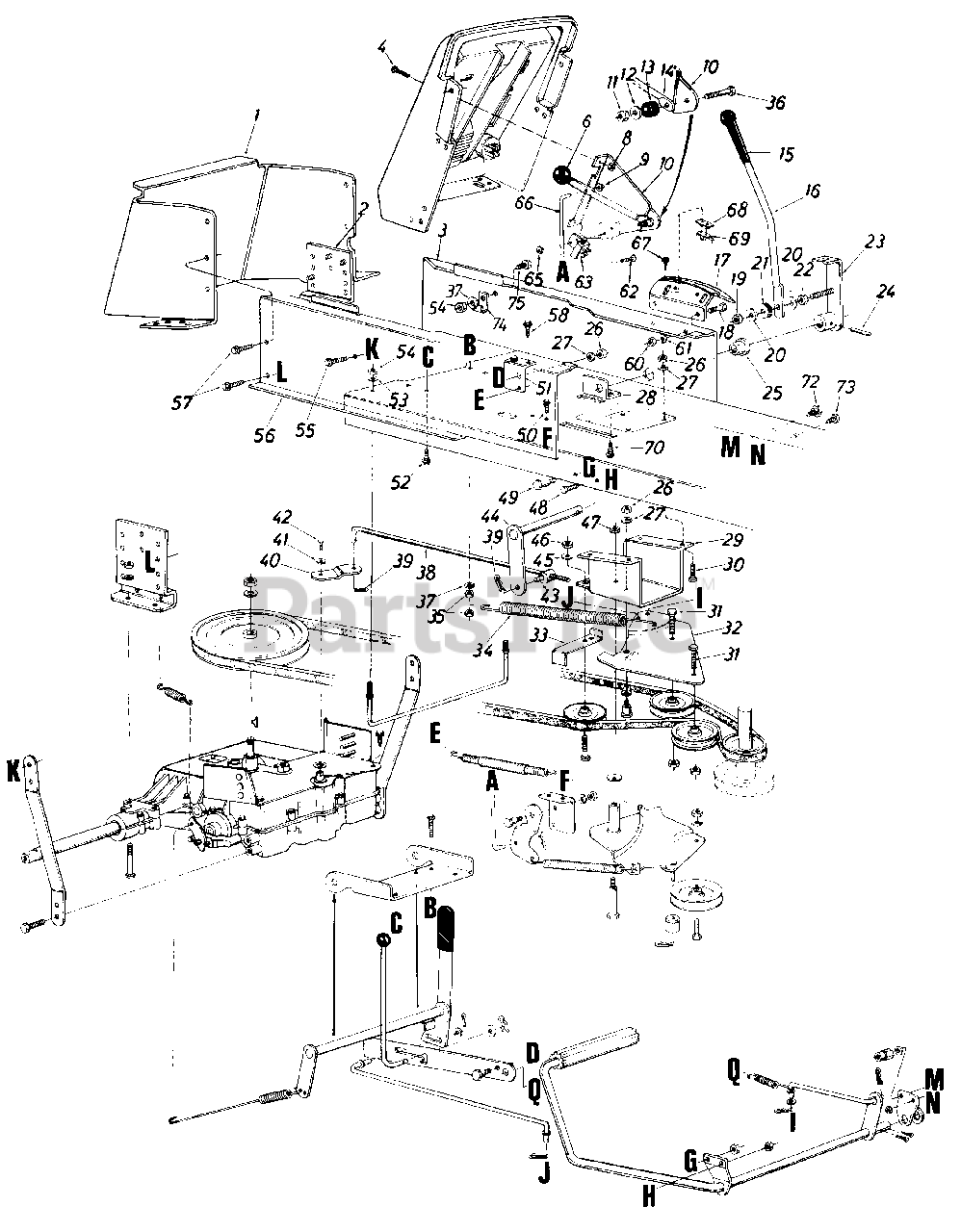

LGT-160 (139-756-190) - White Outdoor 46" Lawn Tractor (1989) Drive Mounting Assembly Parts Diagram

46" Lawn Tractor

Drive Mounting Assembly Parts Diagram

  • Title

1

White Outdoor 13813B

Hitch Plate

Variations

White Outdoor 13813B-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

14067

Transaxle Support Bracket

$

$

Not available

3

16445A

Side Panel Upper Frame L.H.

$

$

Not available

4

White Outdoor 710-0286

Truss. Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

6

White Outdoor 720-0165

Ball Knob
(Superseded to 920-0232)

Note: (Blade Clutch)

$9.99

$

In Stock, only 4 left!

0

8

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 726-0106

Push Cap 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

10

White Outdoor 13950A

Deck Clutch Control Brkt.

$

$

Not available

11

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

12

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .734" O.D. x .063 Thk.

$3.99

$

In Stock, Qty 10

0

13

White Outdoor 735-0126

Rubber Wash. .330" I.D. x .87" O.D. x .32 Thk.
(Superseded to 735-0126A)

$

$

Not available

14

White Outdoor 747-0513

Blade Clutch Lever

$

$

Not available

15

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

16

747-0566

Shift Lever

$

$

Not available

17

White Outdoor 17313

Shift Bracket

Variations

White Outdoor 17313-0637

No Longer Available BRACKET-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 710-0118

Hex Bolt 5/16-18 x .62" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

20

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875" O.D. x .063 Thk.

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 735-0126

Rubber Wash. .330" I.D. x .87" O.D. x .32 Thk.
(Superseded to 735-0126A)

$

$

Not available

22

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

23

White Outdoor 14195

Handle Mount Brkt. Ass'y.

Note: (Shift Lever)

$

$

Not available

24

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 1.5" Lg.

$8.49

$

In Stock, Qty 9

0

25

White Outdoor 741-0225

Plastic Hex Bearing .625" I.D.
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

27

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

28

14035

Speed Control Shaft Brkt.

$

$

Not available

29

White Outdoor 14063

Transaxle Clutch Support Brkt.

$

$

Not available

30

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 17

0

31

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

32

17311

Idler Bracket Ass'y.

$

$

Not available

33

White Outdoor 13819

Belt Guard

Variations

White Outdoor 13819-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 732-0307A

Extension Spring .995" O.D. x 11.0" Lg.
(Superseded to 932-0307A)

$

$

Not available

35

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

36

White Outdoor 710-0106

Hex Bolt 1/4-20 X 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

37

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

38

747-0341

Shift Link

$

$

Not available

39

White Outdoor 714-0145

Hairpin Cotter 3/8"

$4.49

$

In Stock, Qty 20+

0

40

14192

Shifter Bracket

$

$

Not available

41

White Outdoor 736-0270

Belleville Wash. .25" I.D. x.375" O.D.

$3.99

$

In Stock, Qty 14

0

42

White Outdoor 710-0513

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 710-0513A)

Note: (Special)

$4.49

$

In Stock, Qty 10

0

43

White Outdoor 711-0198

Pivot Bushing
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

44

White Outdoor 14034

Speed Control Shaft Ass'y.

$

$

Not available

45

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .060 Thk.

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$5.99

$

In Stock, Qty 20+

0

47

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

48

White Outdoor 710-0201

Hex Bolt 3/8-16 x .62" Lg.

$

$

Not available

49

White Outdoor 738-0143

Shoulder Bolt .500" Dia. x .340" Lg. (3/8-16)

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 710-0599

Hex Thd. Rolling Scr. 1/4-20 0 x.50" Lg.

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 13833

Parking Brake Cam Mtg. Brkt.
(Superseded to 13833A)

$

$

Not available

52

White Outdoor 710-0599

Hex Thd. Rolling Scr. 1/4-20 0 x.50" Lg.

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

54

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

55

White Outdoor 710-0773

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x .5" Lg.

$6.99

$

In Stock, Qty 5

0

56

13848D

Side Panel Upper Frame-R.H.

$

$

Not available

57

White Outdoor 710-0604

Hex Wash. Hd. Tap Scr. 5/16-18 x 5/8" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 710-0599

Hex Thd. Rolling Scr. 1/4-20 0 x.50" Lg.

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

61

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.

$3.99

$

In Stock, only 1 left!

0

63

White Outdoor 725-0465A

Safety Switch
(Superseded to 925-0465A)

$28.99

$

In Stock, only 2 left!

0

65

White Outdoor 712-0121

Hex Nut #10-24 Thd.

$3.99

$

In Stock, Qty 20+

0

66

White Outdoor 747-0708

Deck Control Rod
(Superseded to 747-0708A)

$

$

Not available

67

White Outdoor 710-0227

Hex Wash. Hd. Scr. #8 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

68

White Outdoor 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 10

0

69

White Outdoor 725-0758

Spring Switch
(Superseded to 753-0580)

$

$

Not available

70

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

72

White Outdoor 738-0143

Shld. Bolt .498" Dia. x .34"

$3.99

$

In Stock, Qty 20+

0

73

White Outdoor 710-0201

Hex Bolt 3/8-16 x .62" Lg.

$

$

Not available

74

White Outdoor 726-0175

Clamp

$

$

Not available

75

White Outdoor 710-0258

Hex Bolt 1/4-20 x 5/8" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0
