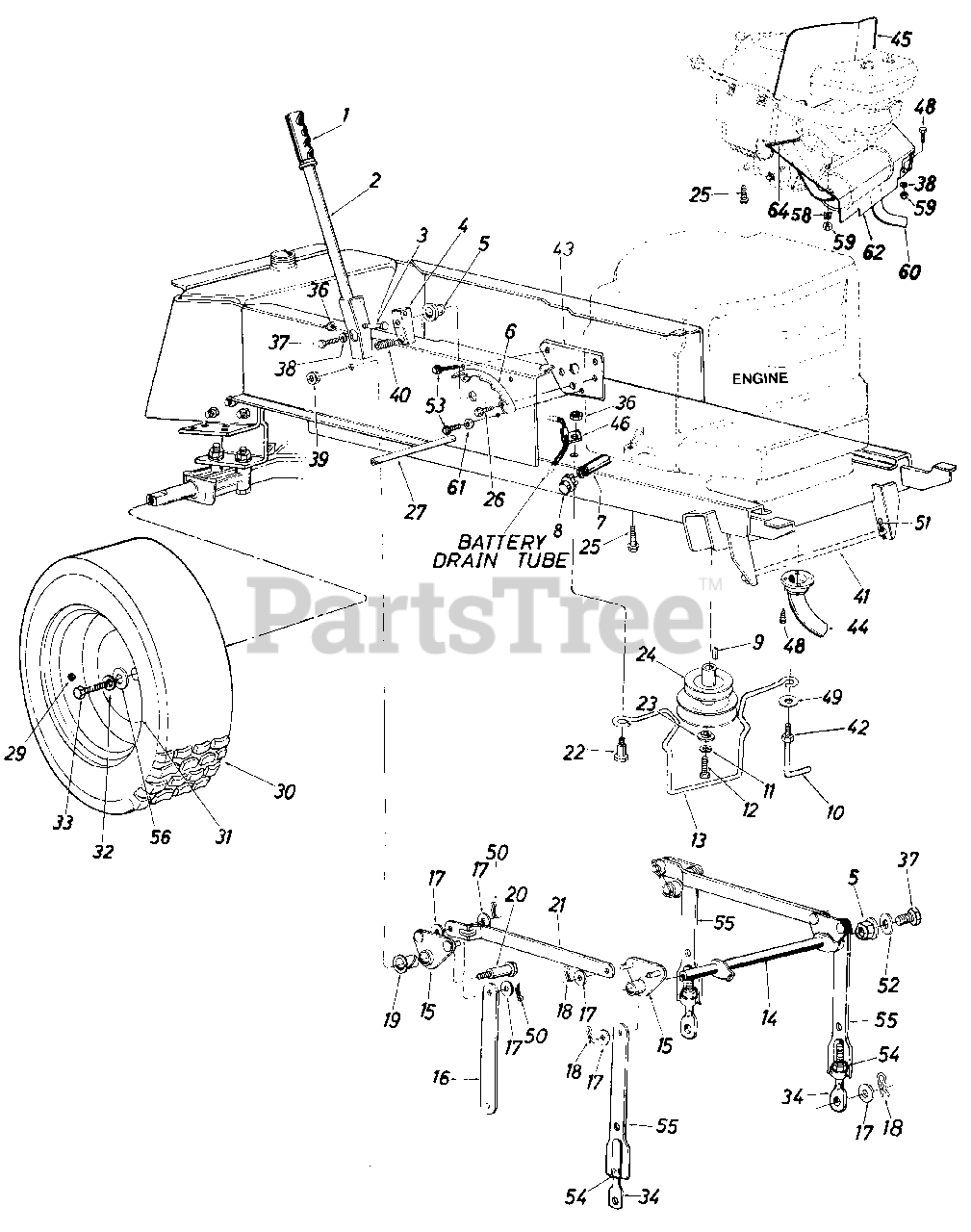

LGT-160 (139-756-190) - White Outdoor 46" Lawn Tractor (1989) Rear Wheel Assembly Parts Diagram

46" Lawn Tractor

Rear Wheel Assembly Parts Diagram

  • Title

1

White Outdoor 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

2

White Outdoor 17282

Lift Handle Ass'y.

$

$

Not available

3

White Outdoor 710-0442

Hex Scr. 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

4

White Outdoor 748-0274A

Lift Shaft Drive

$

$

Not available

5

White Outdoor 741-0225

Plastic Hex Brg. 5/8" I.D.
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

6

White Outdoor 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

White Outdoor 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 737-0164

Pipe Nipple 3/8-18 Npt.
(Superseded to 937-0164)

$

$

Not available

8

White Outdoor 737-0143

Pipe Cap 3/8-18 Npt.

$

$

Not available

9

White Outdoor 714-0118

Sq. Key 1/4" x 1.50"

$6.49

$

Usually ships in 3-6 days

0

10

White Outdoor 747-0216

Belt Guard Lock Pin

$

$

Not available

11

White Outdoor 736-0171

L-Wash. 7/16" Scr.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0757

Hex Scr. 7/16-20 x 1.50" Lg.

$8.99

$

In Stock, Qty 5

0

13

White Outdoor 747-0320

Belt Guard

$

$

Not available

14

White Outdoor 13889

Lift Shaft Ass'y.

$

$

Not available

15

White Outdoor 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

White Outdoor 14399

Link
(Superseded to 14399-0637)

Note: (Deck)

Variations

White Outdoor 14399-0637

LINK-DECK - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0192

Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090

$3.99

$

In Stock, only 2 left!

0

18

White Outdoor 714-0101

Hairpin Cotter

$4.49

$

In Stock, only 4 left!

0

19

White Outdoor 741-0295

Nyliner 518" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

20

White Outdoor 738-0445

Shld. Scr. 5/8" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

White Outdoor 13790

Connecting Link
(Superseded to 13790-0637)

Variations

White Outdoor 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 738-0296

Shld. Scr. .437 Dia. x .268 0 Lg. 5/16-18

$3.99

$

In Stock, Qty 13

0

23

White Outdoor 736-0322

Flat Wash. .44" I.D. x 1.25" O.D. x .17

$8.49

$

In Stock, Qty 20+

0

24

White Outdoor 756-0342A

Two-Step Engine Pulley

$

$

Not available

25

White Outdoor 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.

$6.49

$

In Stock, Qty 7

0

26

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 738-0435

Running Board Rod

$

$

Not available

29

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

30

Rear Wheel Ass'y. Comp.

$

$

Not available

White Outdoor 734-1064

Wheel Ass'y. Comp. 20 x 10.0
(Superseded to 634-0177-0911)

$440.99

$

Usually ships in 3-6 days

0

31

Rear Wheel Rim Only

$

$

Not available

White Outdoor 734-0764

Rim Only 20 x 10.0
(Superseded to 634-04369)

$124.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)

$13.99

$

In Stock, only 4 left!

0

36

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-0237

Hex Scr. 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

38

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 712-0266

Hex Center L-Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 732-0369

Compression Spring
(Superseded to 932-0369)

$9.49

$

In Stock, only 1 left!

0

41

White Outdoor 738-0392

Deck Connecting Rod

$32.99

$

Usually ships in 3-6 days

0

42

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

43

White Outdoor 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

White Outdoor 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

44

UNKNOWN

$

$

Not available

45

White Outdoor 17452

Heat Shield

$

$

Not available

46

White Outdoor 726-0175

Mounting Clamp

$

$

Not available

White Outdoor 734-1504

Hub Cap
(Superseded to 734-1615A)

Note: (Not Shown)

$30.99

$

Usually ships in 3-6 days

0

48

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 736-0242

Bell-Wash. .39" I.D.

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 714-0149B

Int. Cotter Pin

$3.99

$

In Stock, Qty 20+

0

52

White Outdoor 736-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125

$4.49

$

In Stock, only 4 left!

0

53

White Outdoor 710-0600

Hex Wash. Hd. AB-Tap Scr. 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

54

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 17303

Adj. Deck Link
(Superseded to 17303-0637)

Variations

White Outdoor 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)

$15.99

$

In Stock, only 4 left!

0

$15.99

$

In Stock, only 4 left!

0

56

White Outdoor 736-0346

Fl-Wash. .34" I.D. x 2 0n O.D.

$

$

Not available

58

White Outdoor 736-0170

Spec. L-Wash. 5116" I.D.

$5.99

$

Usually ships in 3-6 days

0

59

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

60

White Outdoor 751-0474

Muffler

$

$

Not available

61

White Outdoor 736-0264

Flat Wash. .344" I.D.

$6.49

$

In Stock, only 1 left!

0

62

White Outdoor 16934

Front Heat Shield

$

$

Not available

64

White Outdoor 731-0511

Trim Strip 10" Lg.

$3.49

$
