LGT-1655 (138-786-190) - White Outdoor Lawn Tractor (1988) Transmission Mounting Assembly Parts Diagram

Lawn Tractor

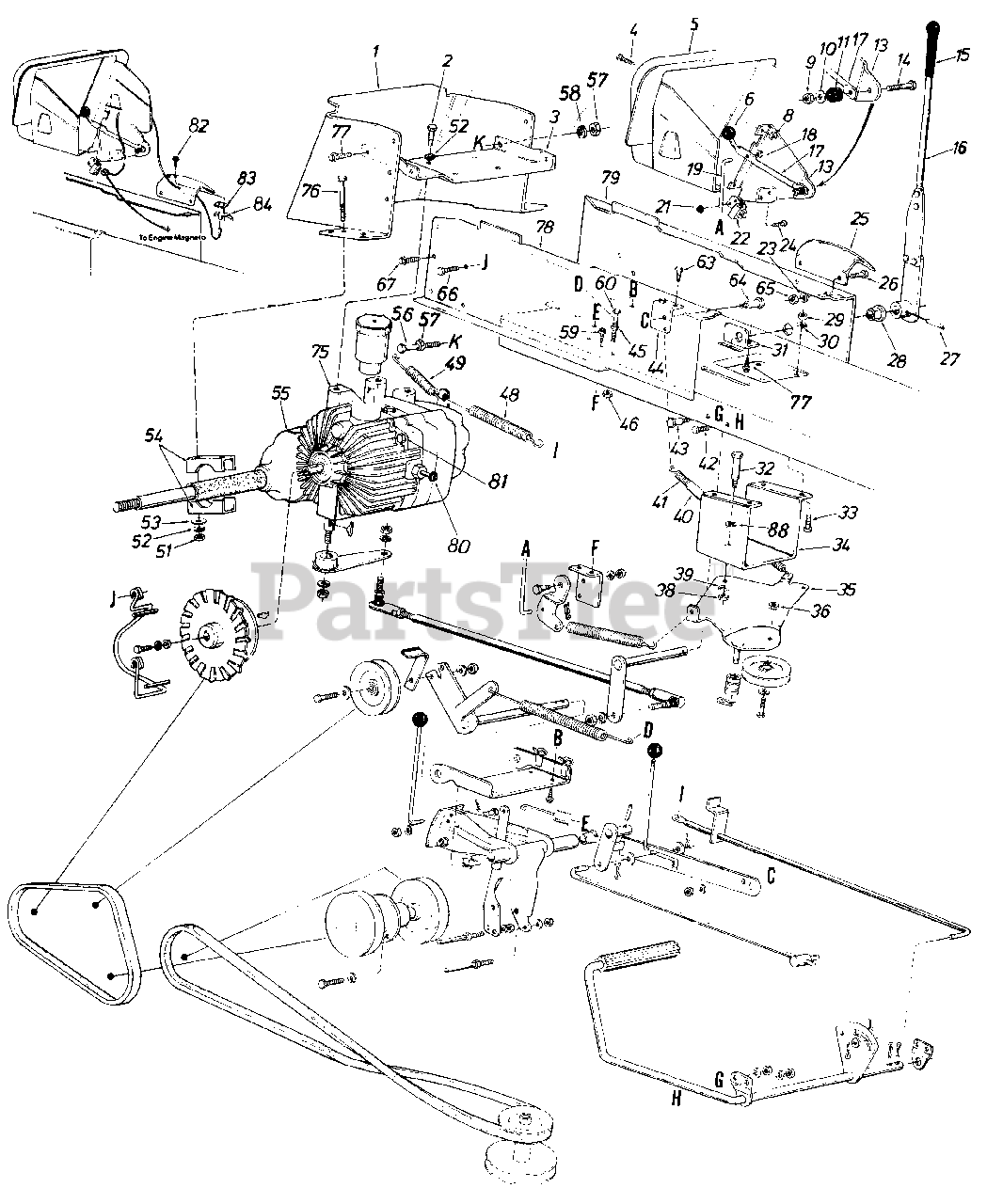

Transmission Mounting Assembly Parts Diagram

  • Title

1

White Outdoor 13813

Hitch Plate

$

$

Not available

2

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

3

13835

Rear Axle Support Brkt.

$

$

Not available

4

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 16427

Dash Panel Ass'y.

$

$

Not available

6

White Outdoor 720-0165

Knob-Blade Clutch
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

8

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

10

White Outdoor 736-0173

Fl-Wash. .28" I.D. x .74" O.D. x.063

$3.99

$

In Stock, Qty 10

0

11

White Outdoor 735-0126

Rubber Wash. .33" I.D. x .87" O.D. x .30
(Superseded to 735-0126A)

$

$

Not available

13

White Outdoor 13950

Deck Clutch Cont. Brkt.

$

$

Not available

14

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

15

White Outdoor 720-0143

Grip

$

$

Not available

16

14038

Control Arm Ass'y.

$

$

Not available

17

White Outdoor 747-0513

Blade Clutch Lever

$

$

Not available

18

White Outdoor 726-0106

Push Nut 1/4" O.D. Rod

$3.99

$

Usually ships in 3-6 days

0

19

White Outdoor 747-0708

Deck Control Rod
(Superseded to 747-0708A)

$

$

Not available

21

White Outdoor 712-0121

Hex Nut #10-24 Thd.

$3.99

$

In Stock, Qty 20+

0

22

White Outdoor 725-0465

Safety Switch
(Superseded to 925-0465A)

$28.99

$

In Stock, only 2 left!

0

23

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.

$3.99

$

In Stock, only 1 left!

0

25

White Outdoor 14020

Speed Control Bracket

$

$

Not available

26

White Outdoor 710-0759

Hex Bolt 5/16-18 x .62" Lg.

$6.49

$

Usually ships in 3-6 days

0

27

White Outdoor 715-0114

Spring Pin Spiral 1/4" Dia. x 1.5" Lg.

$8.49

$

In Stock, Qty 9

0

28

White Outdoor 741-0225

Hex Flange Brg.
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

29

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

30

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

31

14035

Speed Control Shaft Brkt.

$

$

Not available

32

White Outdoor 738-0155

Shld. Scr. .437" Dia. x .162" Lg.
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

33

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 17

0

34

White Outdoor 13826

Idler Support Brkt.

$

$

Not available

35

13893

Idler Brkt. Ass'y.

$

$

Not available

36

White Outdoor 712-0181

Hex L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 5

0

38

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

39

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 731-0483

Convoluted Conduit .50" I.D.
(Superseded to 731-0757-4)

$15.99

$

In Stock, only 2 left!

0

41

White Outdoor 732-0308

Ext. Spring .50" O.D. x 6.37" Lg.
(Superseded to 732-0308A)

$10.99

$

In Stock, Qty 12

0

42

White Outdoor 710-0201

Hex Bolt 3/8-16 x .62" Lg.

$

$

Not available

43

White Outdoor 738-0234

Shld. Scr. .50" Dia. x .395"Lg. (3/8-16)

$9.99

$

In Stock, only 4 left!

0

44

White Outdoor 13833

Parking Brake Cam Mtg. Brkt.
(Superseded to 13833A)

$

$

Not available

45

White Outdoor 712-0267

Hex Nut 5/16-28 Thd.
(Superseded to 912-3010)

$

$

Not available

46

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

48

White Outdoor 732-0413

Brake Tension Spring
(Superseded to 932-0413)

$11.99

$

In Stock, Qty 6

0

49

White Outdoor 732-0157

Ext. Spring-Brake Return

$13.99

$

Usually ships in 3-6 days

0

51

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

52

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0258

Fl-Wash. .390" I.D. x 1.00" O.D. x .125" Thk.

$4.49

$

In Stock, only 4 left!

0

54

White Outdoor 13892

Rear Axle Bracket

$

$

Not available

55

Transaxle

Note: (See Breakdown)

$

$

Not available

56

White Outdoor 710-0501

Hex Bolt t/4-20 x 2" Lg.

$6.99

$

In Stock, only 1 left!

0

57

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

58

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

59

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

63

White Outdoor 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

64

White Outdoor 738-0155

Shld. Scr. .437" Dia. x .162" Lg.
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

65

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

66

White Outdoor 710-0773

Hex Wash. Hd. Scr. 3/8-16 x .50" Lg.

$6.99

$

In Stock, Qty 5

0

67

White Outdoor 710-0726

Hex Wash. Hd. Self-Tap Scr.5/16-18 x 75n Lg.

$3.99

$

In Stock, Qty 20+

0

75

White Outdoor 717-0426

Hydrostatic Pump Comp.

$

$

Not available

76

White Outdoor 710-0316

Hex Bolt 3/8-16 x 3.5" Lg.

$

$

Not available

77

White Outdoor 710-0726

Hex AB-Tap Scr. 5/16 x.75" Lg.

$3.99

$

In Stock, Qty 20+

0

78

13849

Side Panel Upper Frame R.H.

$

$

Not available

79

16445

Side Panel Upper Frame L.H.

$

$

Not available

80

White Outdoor 731-0493

Cap

$

$

Not available

81

White Outdoor 710-0492

Socket Hd. Bolt 3/8-16 x 2.75" Lg.

$

$

Not available

82

White Outdoor 710-0227

Hex Wash. Hd. Scr. #8 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

83

White Outdoor 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 10

0

84

White Outdoor 725-0759

Spring Switch
(Superseded to 753-0579)

$

$

Not available

88

White Outdoor 736-0141

Wave Washer
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0
