LGT 2554 (960430074-00) - Husqvarna 54" Lawn Tractor (2009-09) Engine Parts Diagram

54" Lawn Tractor

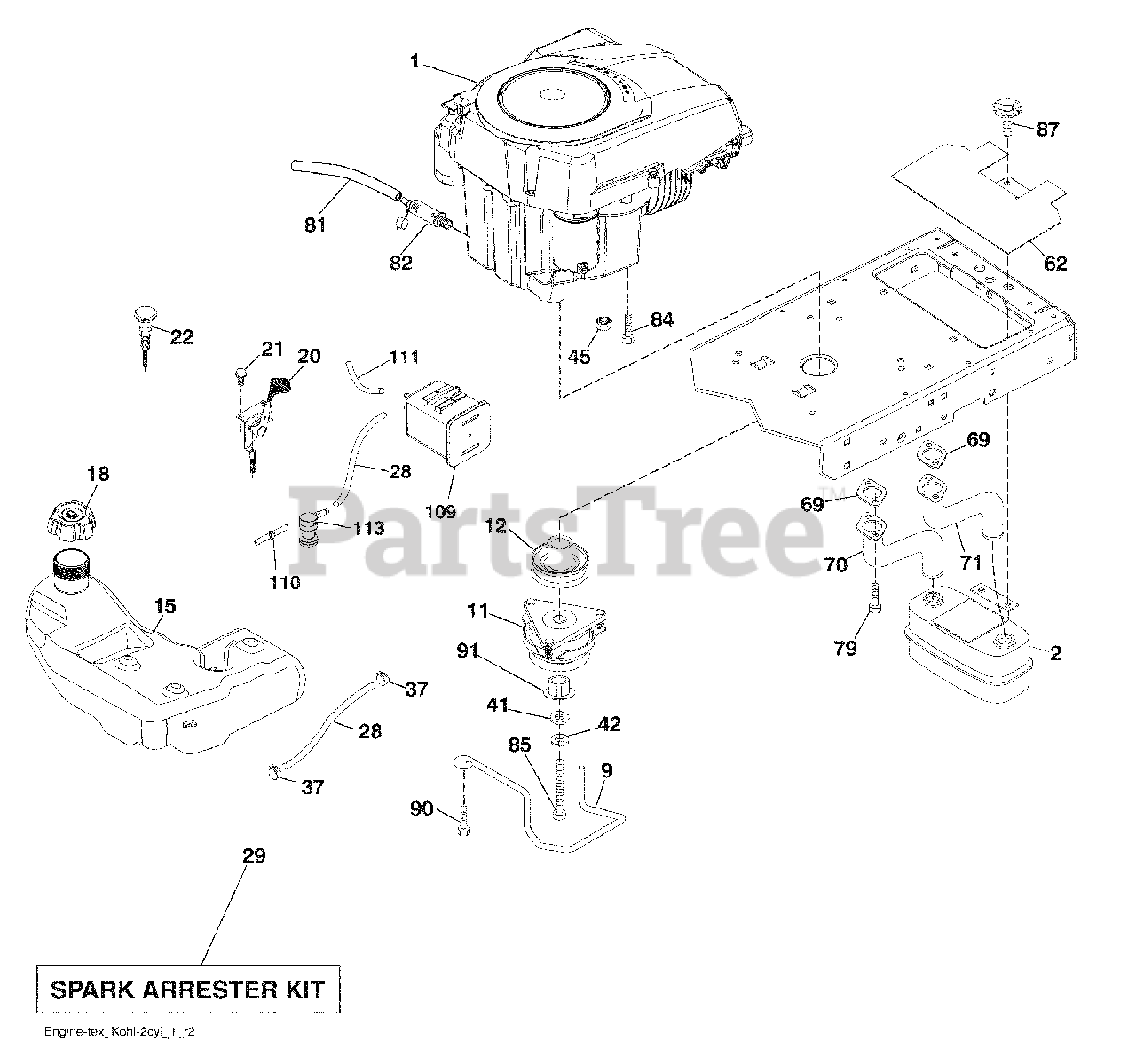

Engine Parts Diagram

  • Title

1

Engine Kohl Model No. SV730

$

$

Not available

2

Husqvarna 532149723

Muffler

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 596501502)

$13.99

$

In Stock, only 2 left!

0

11

Husqvarna 532179335

Clutch Electric

$376.99

$

In Stock, Qty 5

0

12

Husqvarna 532194343

Pulley Engine

$51.99

$

In Stock, only 2 left!

0

15

Husqvarna 532420723

Tank Fuel 4.0
(Superseded to 532420701)

$

$

Not available

18

Husqvarna 532420635

Cap Asm
(Superseded to 532439208)

$45.99

$

In Stock, only 1 left!

0

20

Husqvarna 532182937

Control Throttle
(Superseded to 532177328)

$31.99

$

In Stock, Qty 6

0

21

Husqvarna 532416358

Screw #10 x 0.750 BOS Thread

$

$

Not available

22

Husqvarna 532191596

Control Choke

$39.99

$

In Stock, Qty 6

0

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$3.99

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$7.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

Gasket

Note: (Order Part From Engine Manufacturer)

$

$

Not available

70

Husqvarna 532146699

Tube Exhaust LH
(Superseded to 583954501)

$26.99

$

In Stock, only 2 left!

0

71

Husqvarna 532146700

Tube Exhaust RH
(Superseded to 583954801)

$22.99

$

In Stock, only 2 left!

0

79

Husqvarna 532192334

Screw Socket Head 5/16-18 x .75
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

82

Husqvarna 532181654

Plug Drain Oil
(Superseded to 532428287)

$20.99

$

In Stock, Qty 8

0

84

Husqvarna 817120616

Screw 3/8-16 x 1

$5.99

$

In Stock, Qty 11

0

85

Husqvarna 532179953

Bolt Hex 7/16-20 x 3.75 Gr. 5
(Superseded to 501606601)

$3.99

$

In Stock, only 4 left!

0

87

Husqvarna 532198239

Bolt 5/16-18 unc x 1 w/Sems

$3.99

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$6.99

$

In Stock, Qty 11

0

91

Husqvarna 532187495

Bushing

$5.99

$

Usually ships in 3-10 days

0

109

Husqvarna 532414114

Canister Carbon Filter Asm.

$68.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

Valve Anti-Slosh

$26.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532414119

Purge Line
(Superseded to 587044580)

$14.99

$

In Stock, only 1 left!

0

113

Husqvarna 532414127

Valve Slant Cartrdg.
(Superseded to 597791601)

$13.99

$

In Stock, only 2 left!

0
