LGT 2554 (960450017-00) - Husqvarna 54" Lawn Tractor (2009-04) ENGINE Parts Diagram

54" Lawn Tractor

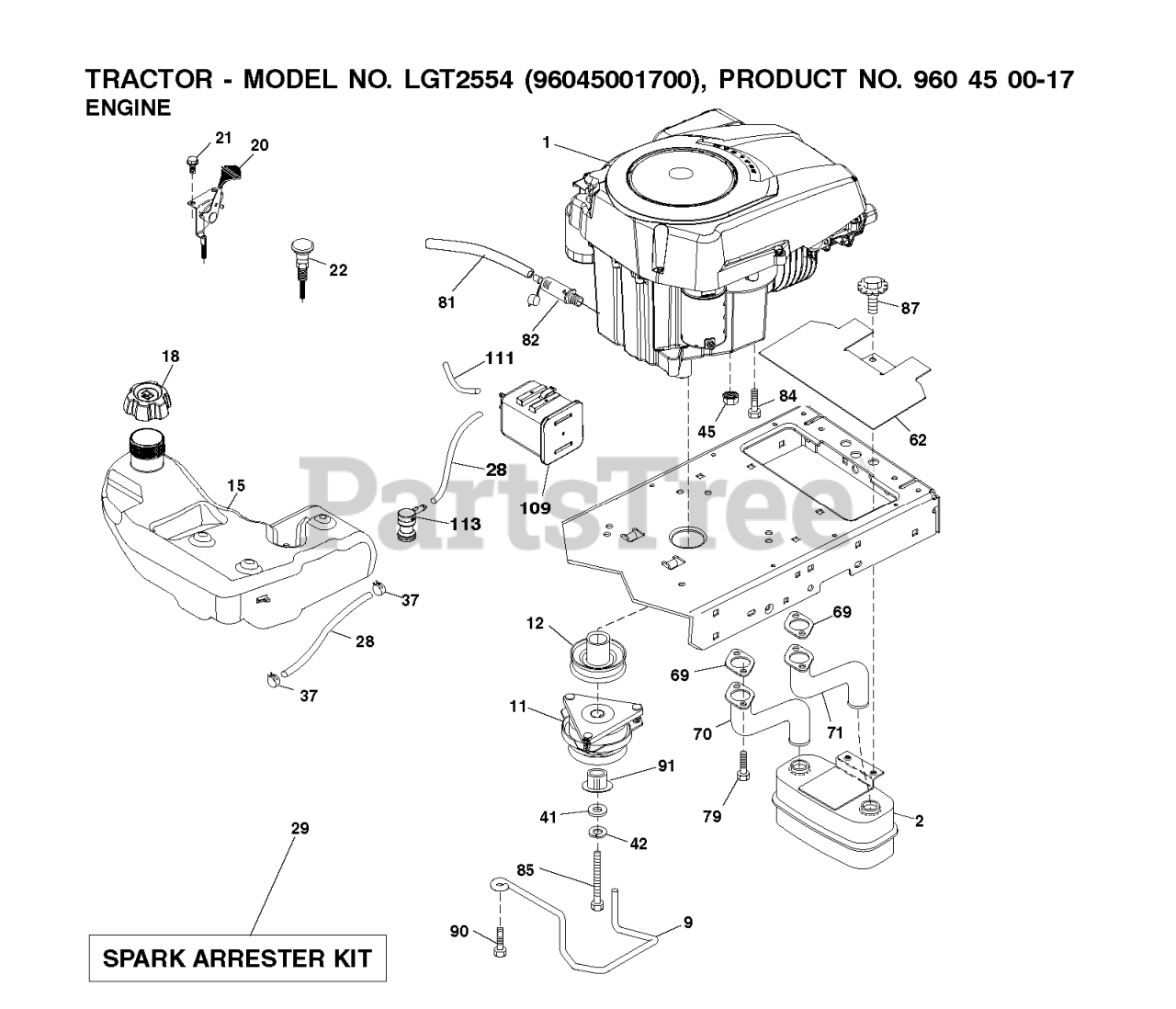

ENGINE Parts Diagram

  • Title

18

Husqvarna 532420635

CAP ASM
(Superseded to 532439208)

$45.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

69

Husqvarna 0

NEEDS DESCRIPTION

$

$

Currently unavailable

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$3.99

$

In Stock, only 4 left!

0

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$20.99

$

In Stock, Qty 7

0

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$376.99

$

In Stock, Qty 5

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 10

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

70

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

Note: LH

$26.99

$

In Stock, only 2 left!

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 587044580)

$14.99

$

In Stock, only 1 left!

0

41

Husqvarna 532126197

WASHER

$7.99

$

In Stock, only 3 left!

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$13.99

$

In Stock, only 2 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

84

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 11

0

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$3.99

$

In Stock, only 4 left!

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$39.99

$

In Stock, Qty 6

0

15

Husqvarna 532414152

RP TANK.ASM.FUEL.4GA.CARB
(Superseded to 532420723)

$

$

Not available

20

Husqvarna 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$31.99

$

In Stock, Qty 6

0

12

Husqvarna 532194343

PULLEY ENGINE

$51.99

$

In Stock, only 2 left!

0

71

Husqvarna 532466700

Tube Exhaust RH

Note: RH

$

$

Currently unavailable

109

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$13.99

$

In Stock, only 3 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0
