LGT-310 (135-782-190) - White Outdoor Lawn Tractor (1985) Electrical System Parts Diagram

Lawn Tractor

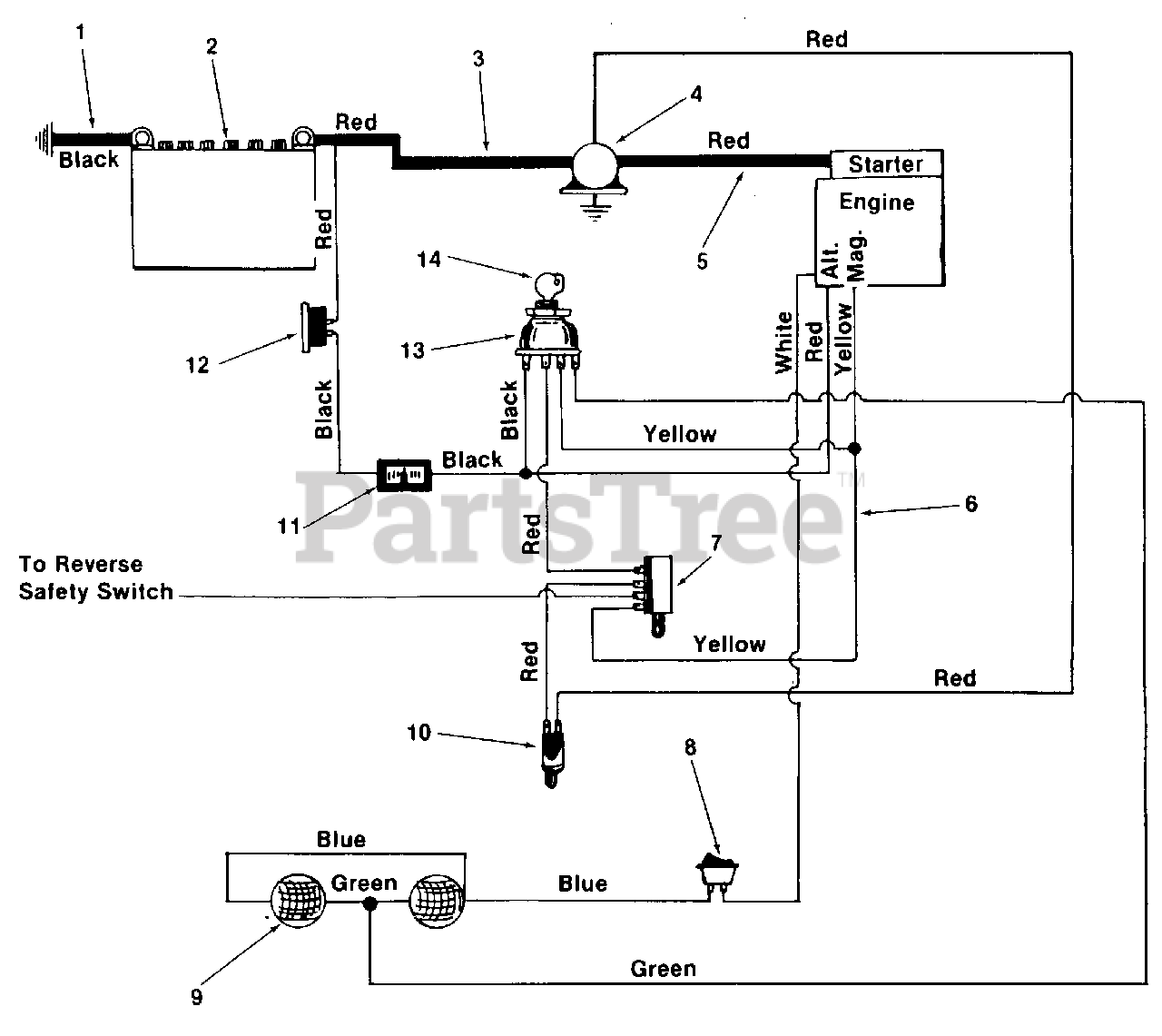

Electrical System Parts Diagram

  • Title

1

MTD 725-0996

Electric Ground Wire

Note: NLA

$

$

Not available

2

MTD 925-0453G

12V-Battery

$

$

Not available

3

MTD 629-0705

Electric Wire

Note: (Red Positive)

$

$

Not available

4

MTD 925-0771

Solenoid

$32.99

$

In Stock, only 4 left!

0

5

MTD 725-0563

Electric Wire

Note: NLA

$

$

Currently unavailable

6

MTD 725-1021

Wire Harness

Note: NLA

$

$

Not available

7

MTD 925-0465A

Safety Switch

Note: (P.T.O.)

$28.99

$

In Stock, only 2 left!

0

8

MTD 925-0634

Light Switch

$16.99

$

In Stock, Qty 5

0

9

MTD 925-0222

Head Lights

$54.99

$

In Stock, Qty 5

0

10

MTD 925-0268

Safety Switch

Note: (Clutch)

$39.99

$

Usually ships in 3-6 days

0

11

MTD 925-0925

Ammeter

$28.99

$

In Stock, only 1 left!

0

12

MTD 753-0685

Circuit Breaker

$35.99

$

In Stock, only 1 left!

0

13

MTD 925-0267B

Ignition Switch

$33.99

$

In Stock, Qty 13

0

14

MTD 925-0201

Ignition Key

$8.99

$

In Stock, Qty 11

0
