LGT 48 DXL (960450067-00) - Husqvarna 48" Yard Tractor (2017-07) ENGINE Parts Diagram

48" Yard Tractor

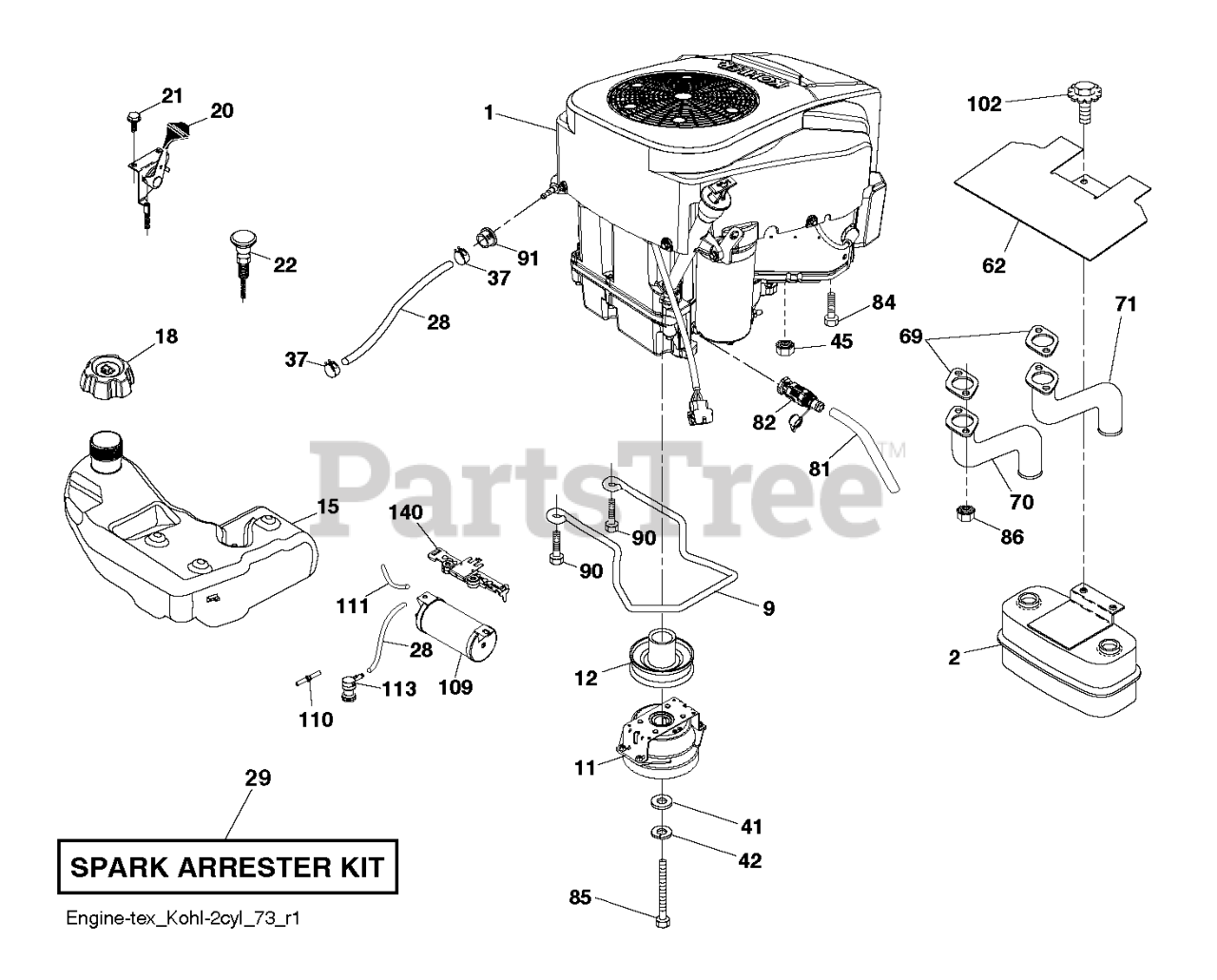

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE, KOHL KT740-3044 (501350401)

$

$

Not available

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$14.99

$

In Stock, only 1 left!

0

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$275.99

$

In Stock, only 2 left!

0

12

Husqvarna 532194343

PULLEY ENGINE

$59.99

$

In Stock, only 1 left!

0

15

Husqvarna 532414101

FOAM PLASTIC TANK.ASM.FUEL.4 G

$275.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

$23.99

$

In Stock, only 4 left!

0

20

Husqvarna 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$33.99

$

In Stock, Qty 6

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$41.99

$

In Stock, Qty 5

0

28

Husqvarna 587044864

HOSE 1/4" LOW PERMEATION FUEL

$27.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 15

0

42

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

Note: LH

$26.99

$

In Stock, Qty 7

0

71

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

Note: RH

$22.99

$

In Stock, only 4 left!

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 12

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

84

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

85

Husqvarna 501606901

BOLT.HEX.7/16-20X3.GR5.YELLOW

$3.49

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

109

Husqvarna 585977401

CANISTER CARB, FLEX TECH, 6.3

$59.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 587044580)

$15.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$14.99

$

In Stock, only 2 left!

0

140

Husqvarna 585977301

BRACKET BRACKET, CARBON CAN, F

$9.99

$

Usually ships in 3-10 days

0
