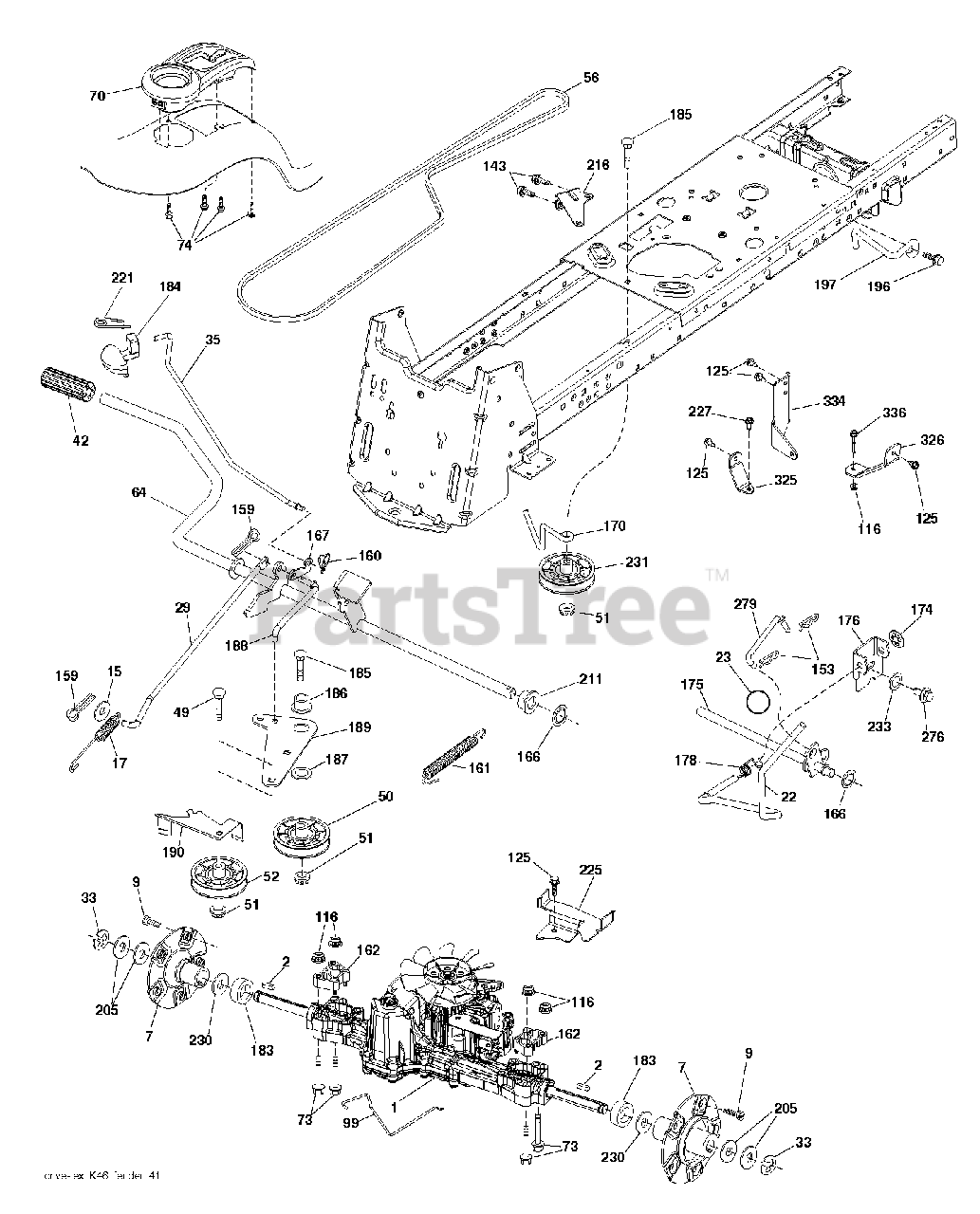

LGT 54 (960430199-00) - Jonsered Lawn Tractor (2014-10) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title

1

Jonsered 000000000

No Description Available

Note: TRANSAXLE TUFFTORQ K46AW (448354)

$

$

Not available

2

Jonsered 532186211

KEY.SQUARE.187X2.500

$4.99

$

In Stock, Qty 10

0

7

Jonsered 532199844

HUB.ASM.WHEEL.REAR.22"

$37.99

$

In Stock, only 1 left!

0

9

Jonsered 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

15

Jonsered 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

17

Jonsered 532413678

SPRING.BRAKE.K46.GREEN

$7.49

$

In Stock, Qty 15

0

22

Jonsered 532197329

ROD.SHIFT.FENDER.STGT.

$72.99

$

Usually ships in 3-10 days

0

23

Jonsered 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

$12.99

$

Usually ships in 3-10 days

0

29

Jonsered 532403806

ROD.BRAKE.K46

$31.99

$

In Stock, only 1 left!

0

33

Jonsered 812000001

E-RING LT

$4.99

$

In Stock, Qty 20+

0

35

Jonsered 583864501

Parking Brake Rod, GT Husq

$7.49

$

Usually ships in 3-10 days

0

42

Jonsered 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

49

Jonsered 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

50

Jonsered 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Jonsered 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Jonsered 532130969

V-BELT

$30.99

$

Usually ships in 3-10 days

0

64

Jonsered 532196200

SHAFT.ASM.PEDAL.BRAKE.

$34.99

$

Usually ships in 3-10 days

0

70

Jonsered 532193340

(Superseded to 583208701)

$72.99

$

Usually ships in 3-10 days

0

73

Jonsered 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

74

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

99

Jonsered 532415743

ROD.SPRING.BYPASS.K46.TEX.GT

$11.99

$

In Stock, only 1 left!

0

116

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

125

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Jonsered 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

153

Jonsered 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

160

Jonsered 532169484

RETAINER CLIP
(Superseded to 596029401)

$3.99

$

In Stock, Qty 14

0

161

Jonsered 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

162

Jonsered 580457401

Transaxle Spacer, 1"

$24.99

$

In Stock, only 2 left!

0

166

Jonsered 532429164

NUT.PUSH.625

$6.49

$

In Stock, Qty 6

0

167

Jonsered 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Jonsered 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

174

Jonsered 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Jonsered 532406208

SHAFT ASM SHIFT

$24.99

$

Usually ships in 3-10 days

0

176

Jonsered 532196214

ARM.CLEVIS.ROD.SHIFT

$7.49

$

Usually ships in 3-10 days

0

178

Jonsered 532197456

SPRING.SHIFT.GT2006

$6.49

$

In Stock, only 2 left!

0

183

Jonsered 532400424

SPACER.SPLIT.800X.350

$8.99

$

In Stock, only 2 left!

0

184

Jonsered 587653701

Parking Brake Handle, Black
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Jonsered 872110622

BOLT

$3.99

$

In Stock, only 3 left!

0

186

Jonsered 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

187

Jonsered 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 19

0

188

Jonsered 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Jonsered 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Jonsered 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

196

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 7

0

197

Jonsered 532199769

BRKT.ANIT-ROTATION.CLU

$8.99

$

In Stock, Qty 11

0

205

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

211

Jonsered 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.49

$

Usually ships in 3-10 days

0

216

Jonsered 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.49

$

In Stock, only 2 left!

0

221

Jonsered 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

225

Jonsered 532403319

KEEPER.BELT.TRANSAXLE.K46

$

$

Not available

227

Jonsered 817490512

SCREW
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

230

Jonsered 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

231

Jonsered 532407287

IDLER.V-GROOVE.1.688.OFFSET

$18.99

$

In Stock, Qty 20+

0

233

Jonsered 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

276

Jonsered 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

279

Jonsered 532406207

LINK SHIFT

$15.99

$

In Stock, only 1 left!

0

325

Jonsered 585995702

Torque Strap Bracket, 46 22" Tire LH

$4.99

$

In Stock, only 1 left!

0

326

Jonsered 585993102

Torque Strap Bracket, 46 22" Tire RH

$5.99

$

In Stock, Qty 10

0

334

Jonsered 585882202

Sway Rod Bracket, K46 X431

$7.99

$

Usually ships in 3-10 days

0

336

Jonsered 587259601

Flanged Hex Bolt, 5/16-18 X 1-3/4
(Superseded to 587259602)

$3.99

$

Usually ships in 3-10 days
