LGTX 1054 (13YZ92AK056) - Cub Cadet 54" Lawn Tractor (2013) Drive System Parts Diagram

54" Lawn Tractor

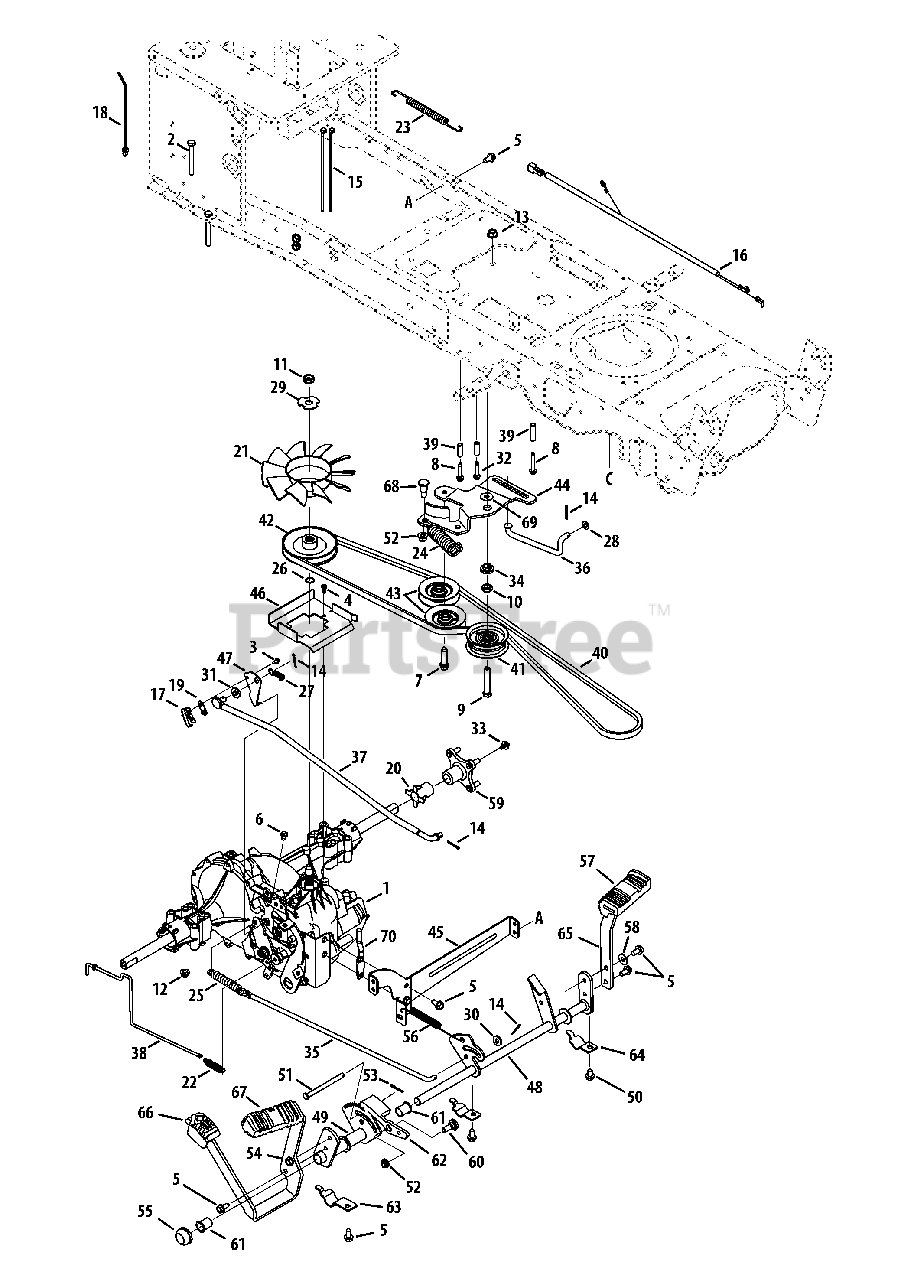

Drive System Parts Diagram

  • Title

1

Cub Cadet 918-04270B

Transmission, Hydro-Gear 0510

$

$

Not available

2

Cub Cadet 710-0176

Hex Screw, 5/16-18, 2.75, Gr5, Std

$4.49

$

In Stock, only 3 left!

0

3

Cub Cadet 710-0227

Screw, #8-18, 0.500,

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0351

Screw, #10-16, 0.500

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0653

Screw, Self-tapping, 1/4-20, 0.375

$4.49

$

In Stock, Qty 16

0

7

Cub Cadet 710-1007

Screw, Self-tapping, 3/8-16, 1.500

$5.99

$

In Stock, Qty 9

0

8

Cub Cadet 710-1325

Screw, Self-tapping, 1/4-20, 1.625

$4.49

$

In Stock, Qty 5

0

9

Cub Cadet 710-3011

Hex Screw, 3/8-16, 2.25, Gr5

$6.49

$

In Stock, Qty 20+

0

10

Cub Cadet 912-0240

Nut, Jam, 7/16-20, Gr2

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 912-0346

Nut, Jam Lock, 1/2-20, Gr5, Nylon
(Superseded to 712-0346)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 912-0431

Nut, Flange Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 2 left!

0

16

Cub Cadet 725-04791A

Jumper Harness, Ground & Reverse

$14.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725-1644

Switch, Spring, Short

$8.99

$

In Stock, only 3 left!

0

18

Cub Cadet 926-0154

Tie, Cable, Push Mount 7.5

$5.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 926-0320

Plate, Insulator Nut

$6.49

$

In Stock, Qty 11

0

20

Cub Cadet 731-05300A

Sleeve, .765 Id x 2.41

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-06098

Fan, Hydro

$18.99

$

In Stock, Qty 20+

0

22

Cub Cadet 932-0209

Spring, Extension, .48 Od x 2.03

$7.49

$

In Stock, Qty 12

0

23

Cub Cadet 732-04606

Spring, Extension, .500 Dia x 12.6

$11.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 732-04792

Spring, Extension, 1.00 Dia x 4.75

$8.49

$

In Stock, Qty 11

0

25

Cub Cadet 732-0716D

Spring, Extension, .59 Od x 4.00

$12.99

$

In Stock, Qty 20+

0

26

Cub Cadet 732-0729

Ring, Wire

$4.49

$

In Stock, Qty 6

0

27

Cub Cadet 732-3118

Spring, Extension, .375 Od x 1.44

$9.49

$

In Stock, Qty 10

0

28

Cub Cadet 936-0264

Washer, Flat, .330 x .630 x .0635

$6.49

$

In Stock, Qty 11

0

29

Cub Cadet 736-04263

Washer, Lock, Transmission Hydro

$6.49

$

In Stock, Qty 20+

0

30

Cub Cadet 936-3008

Washer, Flat, .344 x .750 x .120

$6.49

$

In Stock, only 1 left!

0

31

Cub Cadet 736-3010

Washer, Flat, .407x.812x.135, Ht

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 710-1026

Screw, Self-tapping, 1/4-20 x 1.75

$6.49

$

In Stock, Qty 20+

0

33

Cub Cadet 710-05339

Screw, 5/16-24 x .750
(Superseded to 710-05339A)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 738-04420

Spacer, Shoulder, 1.375 x .380 x .183

$6.49

$

In Stock, Qty 11

0

35

Cub Cadet 747-04139

Rod, Brake, LT Hydro

$22.99

$

In Stock, only 1 left!

0

36

Cub Cadet 747-04957A

Rod, Transmission, Bypass

$13.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 747-04979

Rod, Control, Hydro

$108.99

$

In Stock, only 1 left!

0

38

Cub Cadet 747-04991

Rod, Hydro Bypass

$9.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 750-04456

Spacer, .260 x .372 x 1.420

$6.99

$

In Stock, Qty 20+

0

40

Cub Cadet 954-04207

Belt, V-Type

$38.99

$

In Stock, Qty 20+

0

41

Cub Cadet 756-04224

Pulley, Idler, Flat 2.75 OD

$24.99

$

In Stock, Qty 20+

0

42

Cub Cadet 756-04308

Pulley, Input, 4.13 Dia

$29.99

$

In Stock, Qty 5

0

43

Cub Cadet 756-04325

Pulley, Idler, V-Type x 3.06

$22.99

$

In Stock, Qty 20+

0

44

Cub Cadet 783-06027B

Bracket, Idler, Center Double

$

$

Not available

45

Cub Cadet 783-06133-0637

Bracket, Mount, Hydro

$31.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 783-06260-0637

Bracket, Support, Belt Disengage

$26.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 783-1019B

Bracket, Actuator, Switch

$10.99

$

In Stock, only 1 left!

0

48

Cub Cadet 647-04152D

Control Assembly, Brake

$

$

Not available

49

Cub Cadet 683-04488

Bracket Assembly, Pedal, Hydro
(Superseded to 983-04488)

$37.99

$

In Stock, Qty 5

0

50

Cub Cadet 710-0604A

Screw, Self-tapping, 5/16-18, 0.625,

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 711-05068

Pin, Clevis, 5/16 x 3.985
(Superseded to 711-05068A)

$7.49

$

In Stock, only 1 left!

0

52

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

54

Cub Cadet 783-06059-0637

Bracket, Pedal, Hydro

$50.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 726-0214

Cap, Push 5/8

$9.99

$

In Stock, Qty 20+

0

56

Cub Cadet 732-04587

Spring, Extension, .63 Dia x 4.95

$6.99

$

In Stock, Qty 20+

0

57

Cub Cadet 735-04136

Pad, Pedal, Brake

$14.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 918-04228

Hub Assembly, Wheel
(Superseded to 918-04228A)

$46.99

$

In Stock, Qty 11

0

60

Cub Cadet 938-0380

Bolt, Shoulder, .500 x .270, 3/8-16
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 20+

0

61

Cub Cadet 741-0495

Bearing, Flange, .630 x .695 x .60

$4.49

$

In Stock, Qty 12

0

62

Cub Cadet 748-04203

Latch, Cruise

$13.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 783-05914

Bracket, Support, Pedal Strap

$6.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 783-05940

Bracket, Support, Pedal Strap 5/8

$6.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 783-06103A-0637

Bracket, Pedal, Brake

$16.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 735-04135

Pad, Pedal, Reverse

$7.49

$

In Stock, Qty 10

0

67

Cub Cadet 735-04118A

Pad, Pedal, Forward

$13.99

$

In Stock, only 3 left!

0

68

Cub Cadet 738-0430

Scr, Shldr, .50 x .685 3/8-16

$10.99

$

In Stock, Qty 5

0

69

Cub Cadet 936-0344

Washer, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 747-05444A

Belt Keeper Rod

$9.99

$

In Stock, only 1 left!

0
