LGTX 1054 (13YZ92AK056) - Cub Cadet 54" Lawn Tractor (2013) Mower Deck Parts Diagram

54" Lawn Tractor

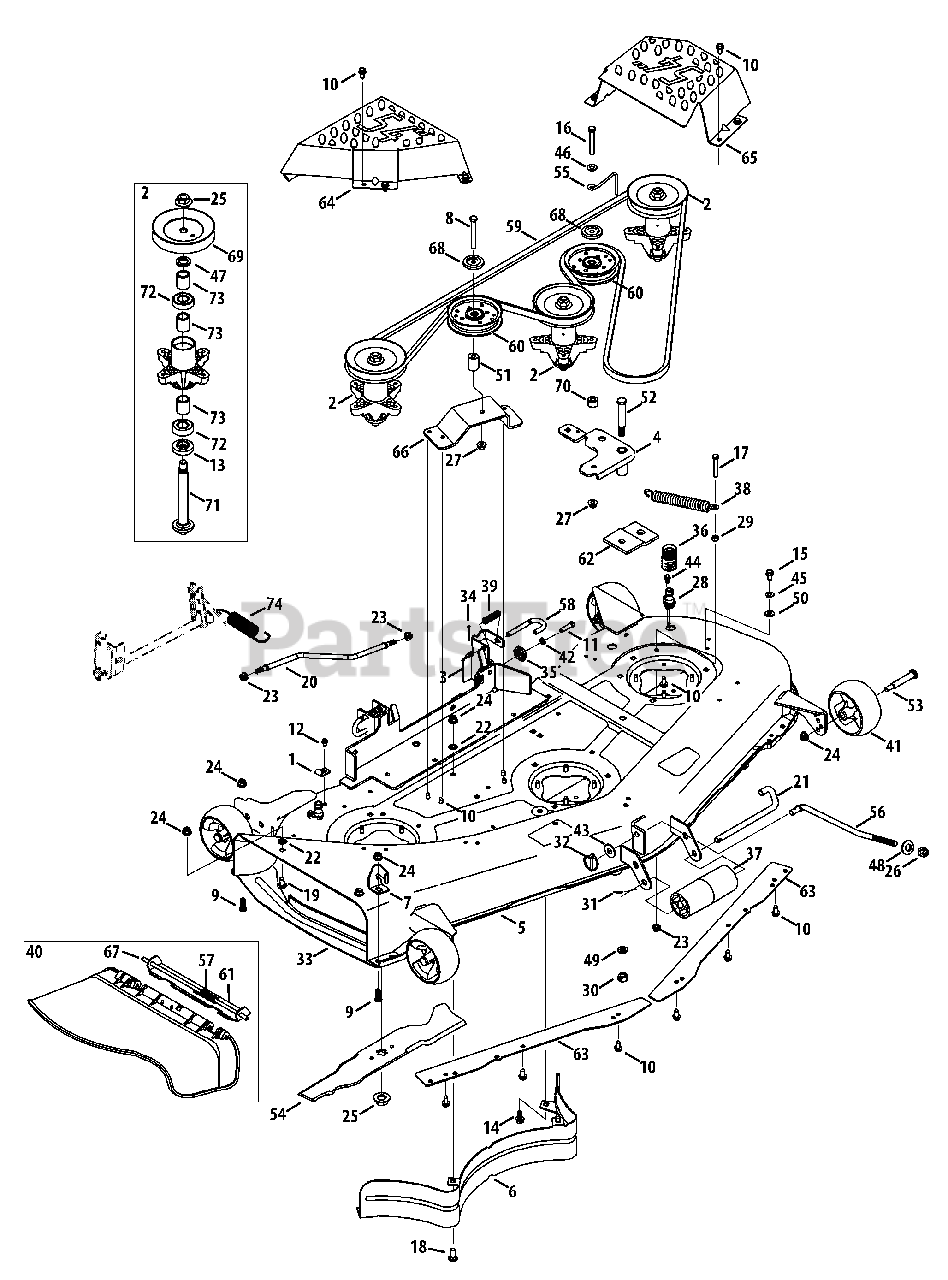

Mower Deck Parts Diagram

  • Title
1

Cub Cadet 96606

Bracket, Hook, Retainer

$6.99

$

In Stock, Qty 15

0

2

Cub Cadet 918-04608A

Spindle Assembly

$153.99

$

In Stock, Qty 20+

0

3

Cub Cadet 683-0254B-4021

Bracket Assembly, Deck, Hanger LH

$46.99

$

In Stock, Qty 12

0

4

Cub Cadet 683-0459-0637

Idler Assembly, Arm, 54"

$69.99

$

In Stock, Qty 15

0

5

Cub Cadet 983-05059

Deck, 54"
(Superseded to 983-05059A)

Variations

Cub Cadet 983-05059-4021

USE 983-05059A-4021 SHELL-54" - CUB YELLOW 2 (4021)

$1018.99

$

Usually ships in 3-6 days

0

Cub Cadet 983-05059-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1018.99

$

Usually ships in 3-6 days

0

$823.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2093C

Baffle, Rear

Variations

Cub Cadet 703-2093C-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 18

0

Cub Cadet 703-2093C-4044

Inner Rear Baffle - CRAFTSMAN RED (4044)

$89.99

$

Usually ships in 3-6 days

0

$83.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-3279-4021

Stop, Chute, Deflector
(Superseded to 703-3279)

$37.99

$

In Stock, only 3 left!

0

8

Cub Cadet 710-0521

Hex Screw, 3/8-16, 3.0, Gr8

$4.99

$

In Stock, Qty 15

0

9

Cub Cadet 710-04095

Hex Screw, 3/8-16, 1.00, Gr5, Spec

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 750-1349A

Spacer, .79 x 1.82 x .55lg.

$12.99

$

In Stock, Qty 6

0

14

Cub Cadet 710-0623

Screw, Self-tapping, 3/8-16, 0.750

$3.99

$

In Stock, Qty 12

0

15

Cub Cadet 710-0650

Screw, Self-tapping, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0859

Hex Screw, 3/8-16, 2.50, Gr5, Std

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3103

Hex Screw, 5/16-18, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16, 1.00, Gr5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 747-05462

Rod, Support, Deck

$31.99

$

In Stock, Qty 8

0

21

Cub Cadet 911-3314

Roller Pin-1/2 Dia. x 7.31
(Superseded to 711-3314A)

$23.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0229

Nut, Push, 3/8

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04243

Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 912-0431

Nut, Flange Lock, 3/8-16, GrF

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 912-3010

Nut, Hex, 5/16-18, Gr5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3022

Nut, Hex Lock, 1/2-13, GrB

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 753-04070

Pin, Lynch, .1875

$9.49

$

In Stock, Qty 20+

0

33

$65.99

$

In Stock, Qty 20+

0

34

Cub Cadet 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 917-04074

Gear, Deck, Adjustment

$12.99

$

In Stock, Qty 20+

0

36

Cub Cadet 921-04041

Coupler, Water

$21.99

$

In Stock, Qty 20+

0

37

Cub Cadet 731-05679

Roller, Front
(Superseded to 731-05679B)

$16.99

$

In Stock, Qty 20+

0

38

Cub Cadet 732-04247

Spring, Extension, .85 OD x 6.415

$10.99

$

In Stock, Qty 20+

0

39

Cub Cadet 732-04652

Spring, Compr’, .53 OD x 1.75

$6.49

$

In Stock, Qty 20+

0

40

Cub Cadet 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$116.99

$

In Stock, Qty 20+

0

41

Cub Cadet 734-04155

Wheel, Deck, 5.0 Dia. Ball

$19.99

$

In Stock, Qty 20+

0

42

Cub Cadet 936-0119

Washer, Lock, 5/16, Regular Duty

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 936-0179

Washer, Flat, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.49

$

In Stock, Qty 20+

0

45

Cub Cadet 936-0275

Washer, Flat, .344 X .688 X .065
(Superseded to 736-0275)

$

$

Not available

46

Cub Cadet 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 748-0160A

Spacer, .790 x 1.25 x .175

$6.49

$

In Stock, Qty 11

0

48

Cub Cadet 736-0317

Washer, Bell, .63 x 1.25 x .18

$7.49

$

In Stock, Qty 20+

0

49

Cub Cadet 936-0921

Washer, Lock, 1/2 , Regular Duty
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 736-3010

Washer, Flat, .407x.812x.135

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 750-04597

Spacer, .380 x .900 x 1.313

$

$

Not available

52

Cub Cadet 738-1229A

Bolt, Shoulder, .625 x 2.50, 1/2-13

$11.99

$

In Stock, Qty 20+

0

53

Cub Cadet 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$8.99

$

In Stock, Qty 20+

0

54

Cub Cadet 942-0677B

Blade, 18.50 Star 2 In 1

$30.99

$

In Stock, Qty 20+

0

55

Cub Cadet 747-04938

Rod, Keeper

$7.49

$

In Stock, Qty 20+

0

56

Cub Cadet 747-05067A

Deck Lift Rod, Front, 11.7

$19.99

$

In Stock, Qty 20+

0

57

Cub Cadet 732-04372

Spring, Torsion, .44 I.D. x 2.0,

$9.49

$

In Stock, Qty 20+

0

58

Cub Cadet 747-1116

Rod, Deck Release

$11.99

$

In Stock, Qty 20+

0

59

Cub Cadet 954-0642

Belt, V-Type

$75.99

$

In Stock, Qty 20+

0

60

Cub Cadet 756-04129B

Pulley, Idler, 4.25"Dia.
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0

61

Cub Cadet 783-05030

Bracket, Chute 50/54"

$27.99

$

In Stock, Qty 8

0

62

Cub Cadet 783-04013A-0637

Bracket, Stabilizer, Pulley

$20.99

$

In Stock, Qty 13

0

63

Cub Cadet 783-04690B-0637

Skirt, Deck, 54"

$39.99

$

In Stock, Qty 12

0

64

Cub Cadet 783-1470A-4021

RH Spindle Cover
(Superseded to 783-1470A-0637)

$99.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 783-1471A-4021

LH Spindle Cover

$74.99

$

In Stock, only 1 left!

0

66

Cub Cadet 783-04726-0637

Bracket, Idler, Stationary

$34.99

$

In Stock, only 3 left!

0

67

Cub Cadet 711-04565

Pin, Hinge, .3175 Dia. x 14.06 ,1

$14.99

$

In Stock, Qty 5

0

68

Cub Cadet 783-07236

Pulley Cap

$4.99

$

In Stock, Qty 20+

0

69

Cub Cadet 756-04216

Pulley, Deck, 5.39 Dia.

$30.99

$

In Stock, Qty 16

0

70

Cub Cadet 750-0933

Spacer, .385 x .88 x .64

$3.99

$

In Stock, Qty 10

0

71

Cub Cadet 738-1197

Spindle Shaft, 6.95 LG

$41.99

$

In Stock, Qty 20+

0

72

Cub Cadet 941-0919A

Bearing, Ball, .787id x 1.85 Od x .551
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

73

Cub Cadet 750-1000

Spacer, .80 x 1.10 x 1.322

$4.49

$

In Stock, Qty 19

0

74

Cub Cadet 732-0934

Spring, Extension, 1.15 OD x 5.99

$10.99

$

In Stock, only 2 left!

0
