LHB-2100 - Lesco Handheld Blower (SN: 001001 - 003000) Fuel System Parts Diagram

Handheld Blower

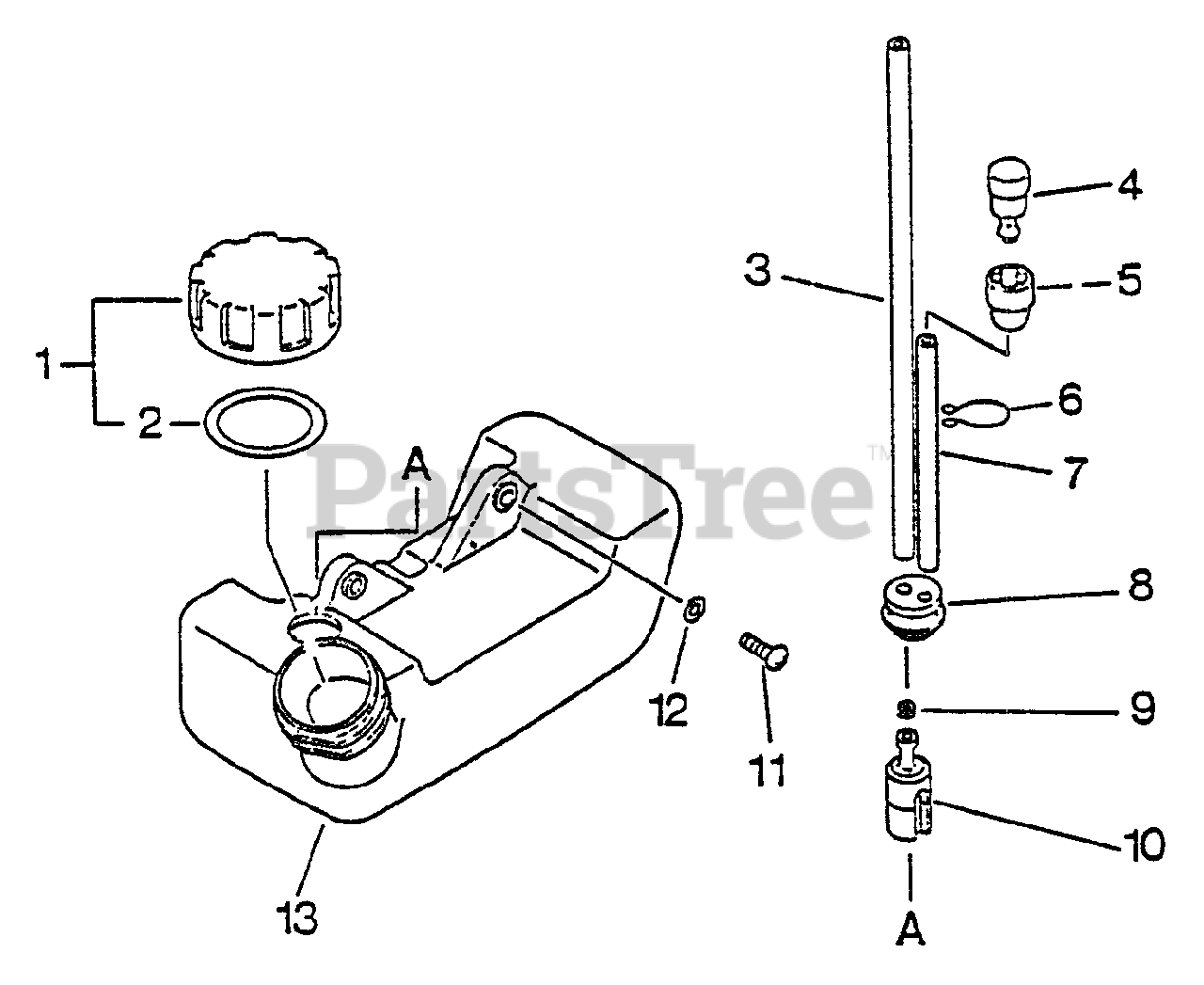

Fuel System Parts Diagram

  • Title

1

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 2

$7.49

$

In Stock, Qty 11

0

2

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 20+

0

3

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 8

0

4

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 20+

0

5

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 20+

0

6

Echo 13201305060

CLIP

$

$

Not available

7

Echo 13271750430

PIPE - 3X6X70 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 20+

0

8

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

9

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

11

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 13100506361

TANK, FUEL
(Superseded to 13100505760)

$

$

Not available
