LHB-2100 - Lesco Handheld Blower (SN: 001001 - 003000) Intake, Exhaust, Air Cleaner Parts Diagram

Handheld Blower

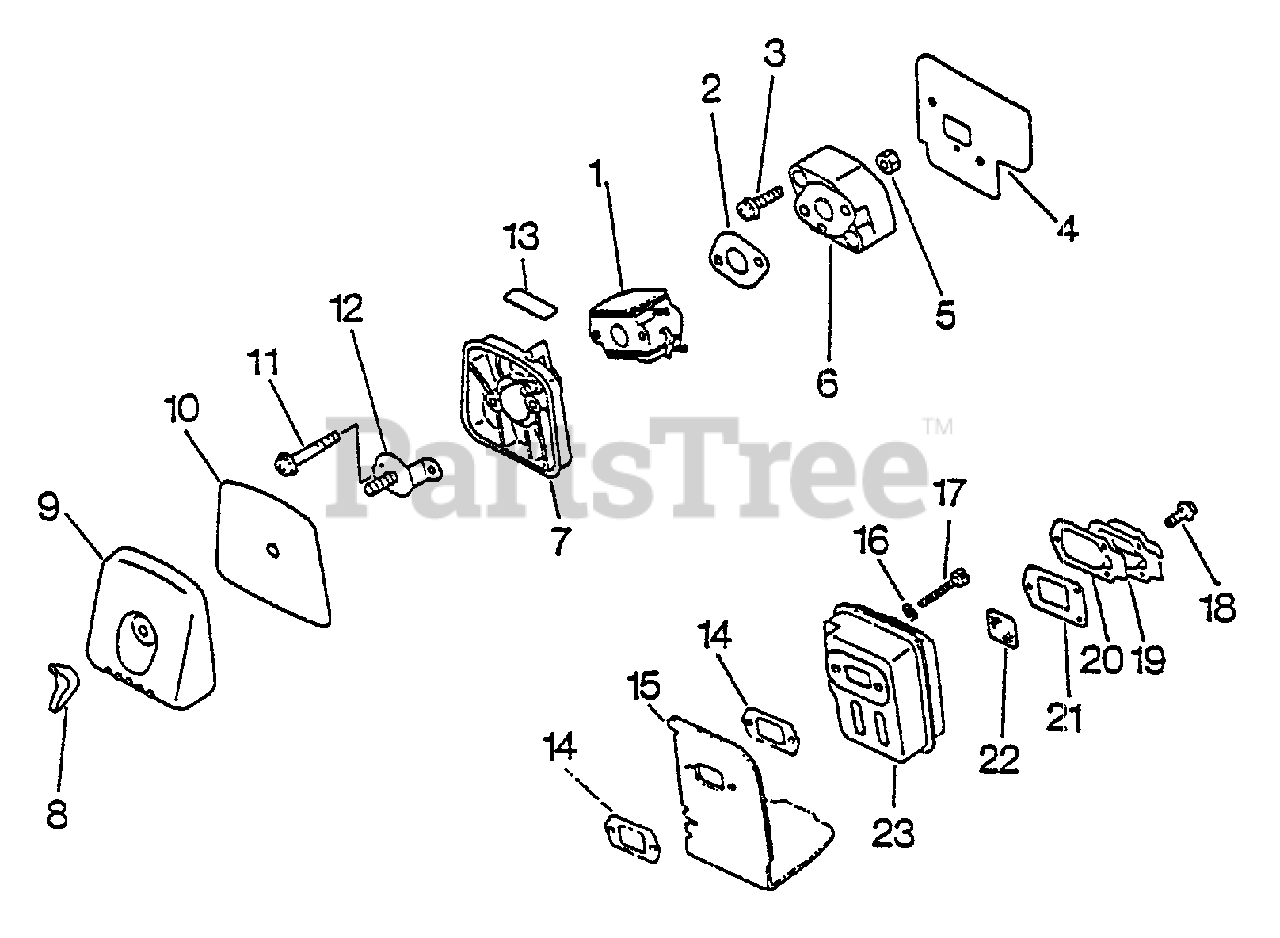

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 12520006360

CARBURETOR - C1U-K14
(Superseded to 12520006361)

$

$

Not available

2

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

3

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

4

Echo 13001005061

GASKET, INTAKE
(Superseded to 13001005062)

$

$

Not available

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 13001705060

INSULATOR, INTAKE
(Superseded to 13001705061)

$7.49

$

In Stock, only 2 left!

0

7

Echo 13030705660

AIR FILTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

9

Echo 13031305060

COVER, AIR FILTER

$7.49

$

Usually ships in 2-4 days

0

10

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 9

0

11

Echo 90024205064

SCREW 5×64

$1.49

$

In Stock, Qty 9

0

12

Echo 12901105060

PLATE, PREVENT

$6.99

$

In Stock, Qty 7

0

13

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

14

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

15

Echo 14587105760

COVER, MUFFLER

$13.99

$

Usually ships in 2-4 days

0

16

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

18

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

19

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

20

Echo 14587605060

GUIDE, EXHAUST - INNER
(Superseded to 14587605061)

$3.99

$

In Stock, only 1 left!

0

21

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

22

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

23

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0
