LHB-2100 - Lesco Handheld Blower (SN: 001001 - 003000) Intake, Exhaust, Air Cleaner Parts Diagram

Handheld Blower

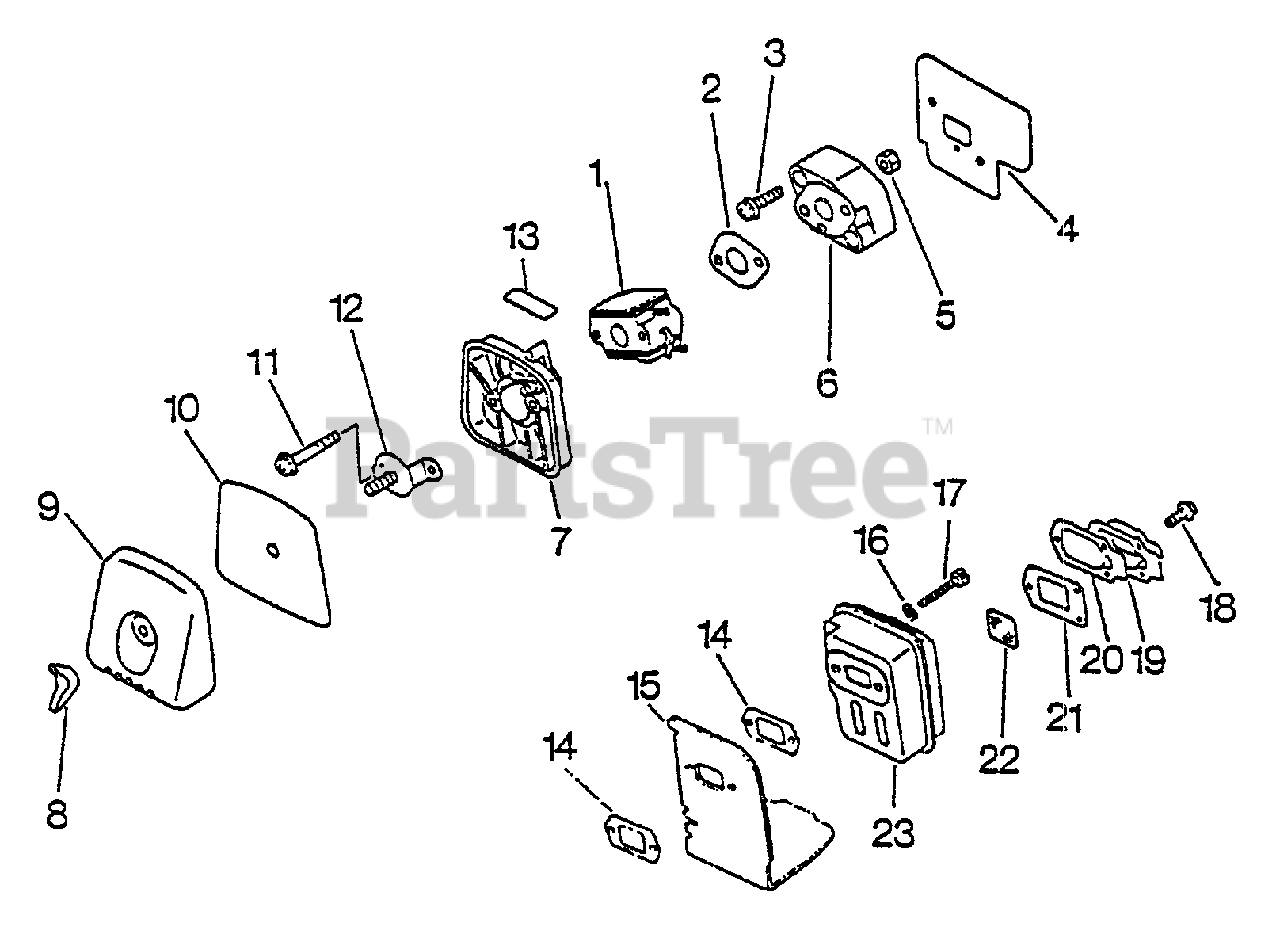

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 12520006360

CARBURETOR C1U-K14
(Superseded to 12520006361)

$

$

Not available

2

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

3

Echo 90023805022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 13001005061

GASKET, INTAKE
(Superseded to 13001005062)

$

$

Not available

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 13001705060

INSULATOR, INTAKE
(Superseded to 13001705061)

$6.49

$

In Stock, only 2 left!

0

7

Echo 13030705660

AIR FILTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

9

Echo 13031305060

COVER, AIR FILTER - BLACK

$6.49

$

Usually ships in 2-4 days

0

10

Echo 13031004560

FILTER, AIR

$4.99

$

In Stock, Qty 20+

0

11

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 10

0

12

Echo 12901105060

PLATE, PREVENT

$5.99

$

In Stock, Qty 10

0

13

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

14

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 20+

0

15

Echo 14587105760

SHIELD, EXHAUST

$11.99

$

In Stock, only 1 left!

0

16

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 20+

0

18

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

19

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 9

0

20

Echo 14587605060

GUIDE, EXHAUST - INNER
(Superseded to 14587605061)

$3.99

$

In Stock, only 1 left!

0

21

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

22

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

23

Echo 14580642030

MUFFLER

$46.99

$

In Stock, only 3 left!

0
