LHB-2100 - Lesco Handheld Blower (SN: 003001 - 005850) Engine, Crankcase Parts Diagram

Handheld Blower

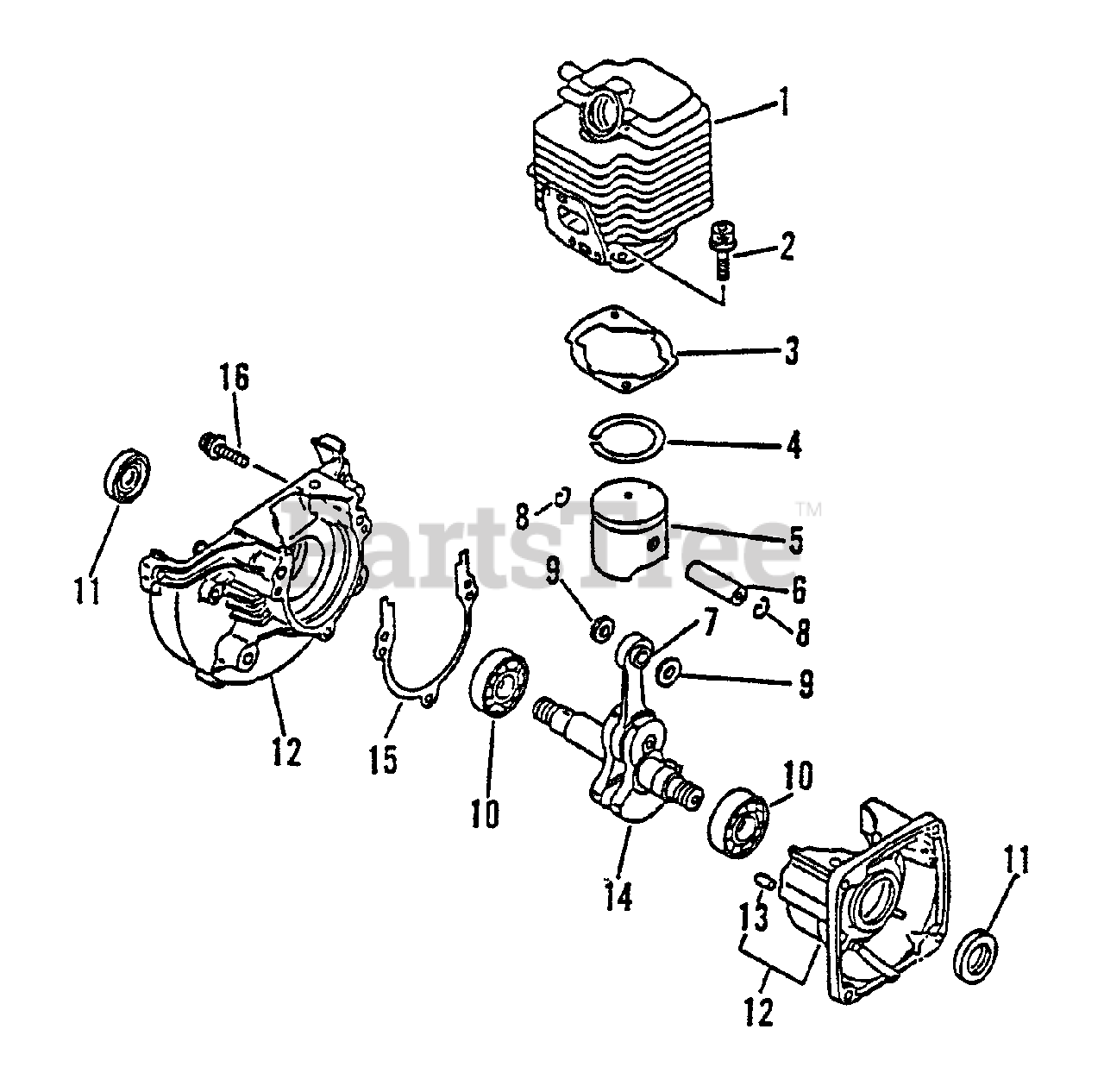

Engine, Crankcase Parts Diagram

  • Title

1

Echo 10101145230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

3

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: USE GASKET KIT P/N 88900005063

$4.99

$

In Stock, Qty 13

0

4

Echo 10001005330

PISTON
(Superseded to 10000005330)

$

$

Not available

5

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

10

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 4 left!

0

11

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 8

0

12

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes ITEM 13

$157.99

$

Usually ships in 2-4 days

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

14

Echo 10010044731

CRANKSHAFT ASSY
(Superseded to 10010044732)

Note: Includes ITEM 7

$186.99

$

Usually ships in 2-4 days

0

15

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900005063

$

$

Not available

16

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

Echo SB1001

SHORT BLOCK -- SB1001
(Superseded to Discontinued)

$

$

Not available

Echo 88900005063

GASKET KIT
(Superseded to 88900005065)

$41.99

$

In Stock, only 2 left!

0
