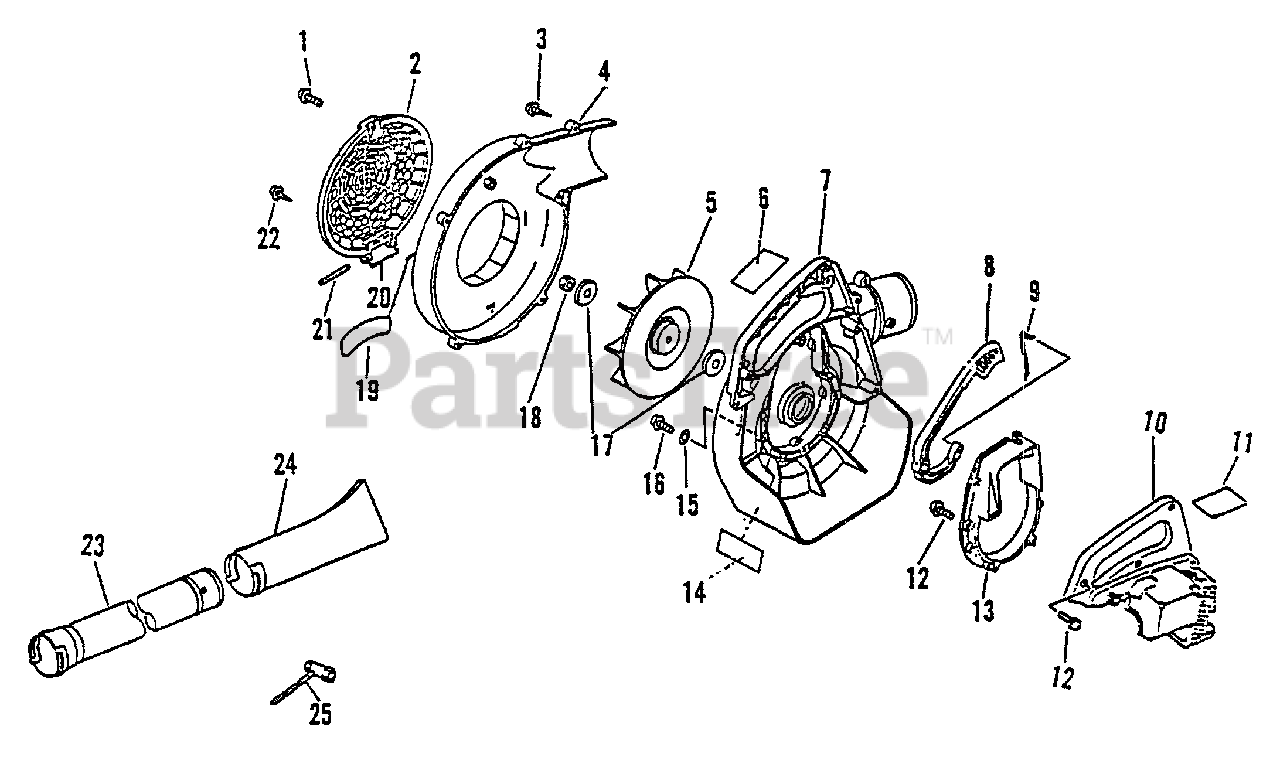

LHB-2100 - Lesco Handheld Blower (SN: 005851 - 999999) FAN, FAN HOUSING, HANDLES, ENGINE COVER, BLOWING PIPES, TOOLS Parts Diagram

Handheld Blower

FAN, FAN HOUSING, HANDLES, ENGINE COVER, BLOWING PIPES, TOOLS Parts Diagram

  • Title

1

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 20+

0

2

Echo 20012405060

GUARD, DEBRIS
(Superseded to 20012405061)

$20.99

$

Usually ships in 2-4 days

0

3

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

4

Echo 20010508960

COVER, FAN - RIGHT

$22.99

$

Usually ships in 2-4 days

0

5

Echo 20001006361

FAN
(Superseded to 20001006362)

$15.99

$

In Stock, Qty 11

0

6

Echo 89017607960

LABEL - NOISE
(Superseded to Discontinued)

$

$

Not available

7

Echo 20011008960

COVER, FAN - RIGHT
(Superseded to Discontinued)

$

$

Not available

8

Echo 17801006360

TRIGGER, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

9

Echo 17801105060

ROD, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

10

Echo 10400808960

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

11

Echo 89019406360

LABEL - HOT SURFACE

$2.99

$

In Stock, only 1 left!

0

12

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 13

0

13

Echo 10493005060

BRACKET, ENGINE
(Superseded to 10493005061)

$31.99

$

Usually ships in 2-4 days

0

14

Echo 89016003360

LABEL - CAUTION
(Superseded to 89016009461)

$1.99

$

In Stock, Qty 20+

0

15

Echo 10403205060

WASHER

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 6

0

17

Echo 10013205660

WASHER - 8

$1.99

$

In Stock, only 1 left!

0

18

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

19

Echo 89011207960

LABEL - MODEL LBH-2100
(Superseded to Discontinued)

$

$

Not available

20

Echo 20015205060

SPRING

$3.49

$

In Stock, only 4 left!

0

21

Echo 20015005060

PIN

$2.99

$

In Stock, only 2 left!

0

22

Echo 90025305014

SCREW - 5X14

$1.49

$

In Stock, Qty 6

0

23

Echo 21001507960

TUBE, BLOWER - STRAIGHT

$13.99

$

Usually ships in 2-4 days

0

24

Echo 21003105060

NOZZLE - FAN HEAD

$11.99

$

In Stock, Qty 6

0

25

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 10

0
