LHB-2100 - Lesco Handheld Blower (SN: 005851 - 999999) Intake, Exhaust, Air Cleaner Parts Diagram

Handheld Blower

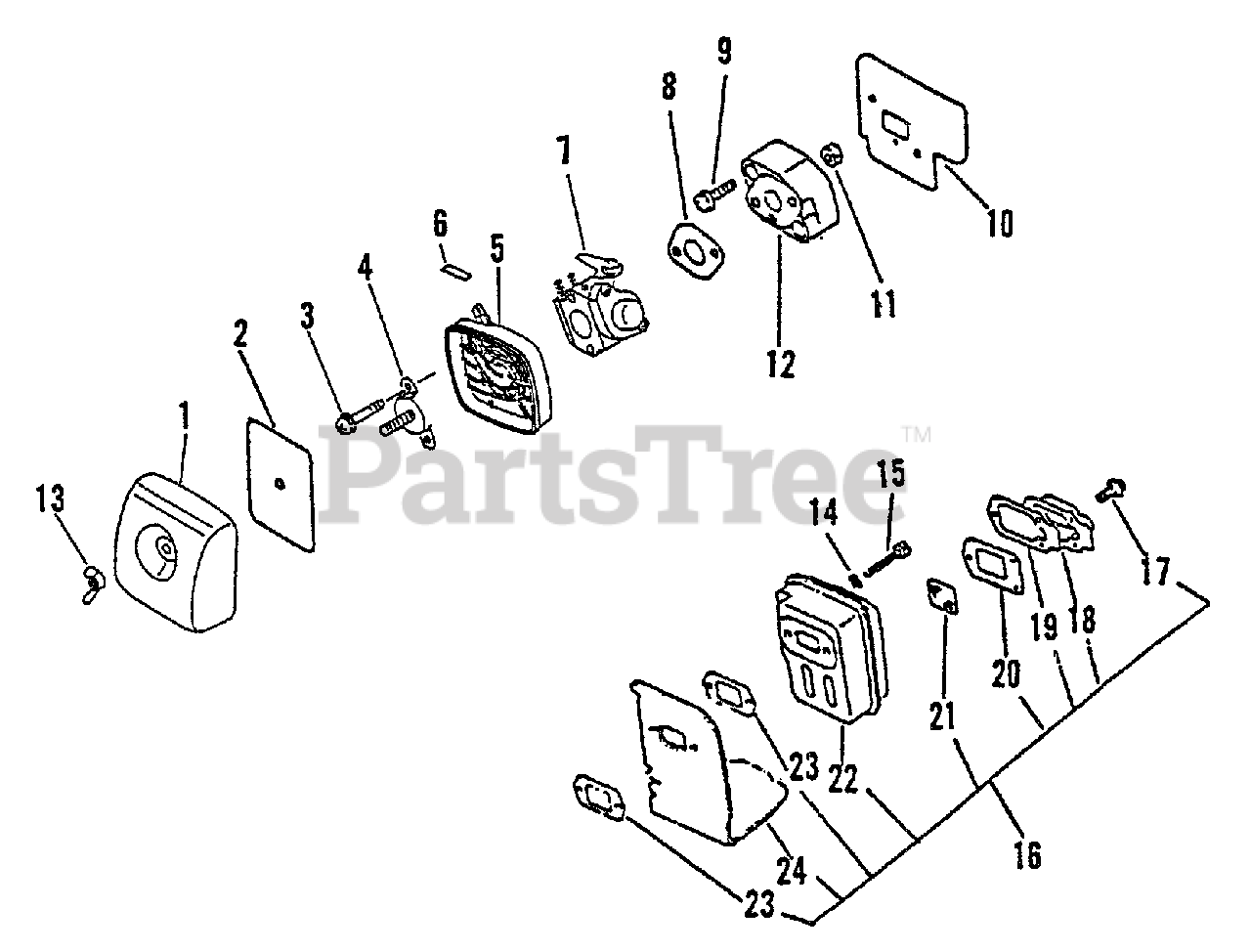

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

2

Echo 13031006560

FILTER, AIR

$4.99

$

In Stock, Qty 11

0

3

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

4

Echo 12901105060

PLATE, PREVENT

$6.99

$

In Stock, Qty 7

0

5

Echo 13030706761

CASE ASSY, AIR FILTER
(Superseded to 13030706960)

Note: When replacing original air cleaner case with 13030706761 on units between S/N 005851 thru 008204, also order (2) 90024205065 screws for proper retention.

$23.99

$

In Stock, only 2 left!

0

6

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

7

Echo 12520006861

CARBURETOR - C1U-K26A
(Superseded to 12520006862)

$

$

Not available

8

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

9

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

10

Echo 13001005061

GASKET, INTAKE
(Superseded to 13001005062)

$

$

Not available

11

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo 13001705060

INSULATOR, INTAKE
(Superseded to 13001705061)

$7.49

$

In Stock, only 2 left!

0

13

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

14

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

16

Echo 14580005062

MUFFLER ASSY
(Superseded to 14580005063)

Note: Includes ITEMS 17-24

$100.99

$

Usually ships in 2-4 days

0

17

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

18

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

19

Echo 14587605060

GUIDE, EXHAUST - INNER
(Superseded to 14587605061)

$3.99

$

In Stock, only 1 left!

0

20

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

21

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

22

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

23

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

24

Echo 14587105760

COVER, MUFFLER

$13.99

$

Usually ships in 2-4 days

0
