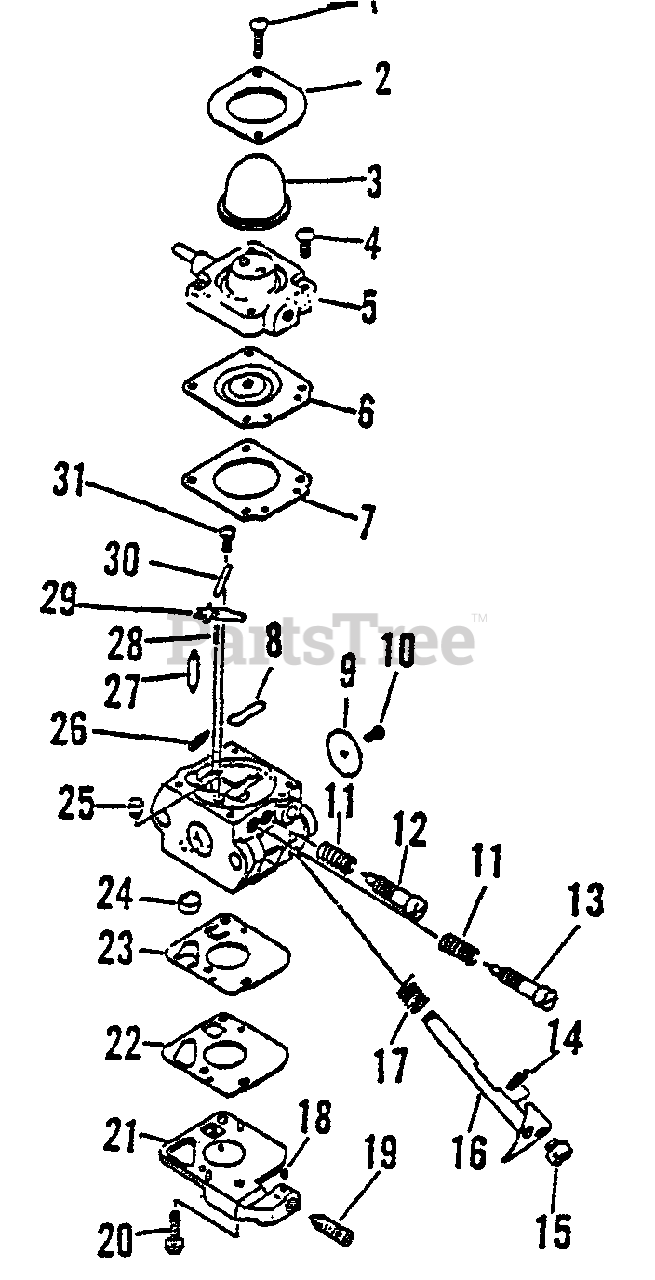

LHD-1700 - Lesco Hedge Trimmer (SN: 001001 - 002837) Carburetor Parts Diagram

Hedge Trimmer

Carburetor Parts Diagram

  • Title

Echo 12520005360

CARBURETOR - C1U-K17
(Superseded to 12520005361)

$110.99

$

In Stock, Qty 8

0

1

Echo P005000980

SCREW

$0.99

$

In Stock, Qty 20+

0

2

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

3

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

4

Echo 12531005360

SCREW

$0.99

$

In Stock, Qty 8

0

5

Echo 12538305360

BODY ASSY, PURGE

$25.99

$

In Stock, only 2 left!

0

6

DIAPHRAGM

Note: Included in Diaphragm/Gasket Kit P/N 12530305360, & Repair Kit P/N 12530205360.

$

$

Not available

7

GASKET, METERING

Note: Included in Diaphragm/Gasket Kit P/N 12530305360, & Repair Kit P/N 12530205360.

$

$

Not available

8

PLUG, WELCH

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

9

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

10

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

11

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

12

Echo 125318-42030

NEEDLE, LOW SPEED
(Superseded to 12531851330)

$

$

Not available

13

Echo 125320-42030

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

14

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

15

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

16

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

17

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

18

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

19

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

20

Echo 125310-42030

SCREW

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12532442030

COVER, PUMP

$9.49

$

Usually ships in 2-4 days

0

------------------

GASKET, PUMP

Note: Included in Diaphragm/Gasket Kit P/N 12530305360, & Repair Kit P/N 12530205360.

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included in Diaphragm/Gasket Kit P/N 12530305360, & Repair Kit P/N 12530205360.

$

$

Not available

24

Echo 125326-42030

STRAINER

$3.99

$

Usually ships in 2-4 days

0

25

NOZZLE, CHECK VALVE

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

26

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

27

VALVE, NEEDLE

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

28

SPRING

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

29

LEVER, METERING

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

30

PIN

Note: Included in Repair Kit P/N 12530205360.

$

$

Not available

31

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

Echo 12530305360

DIAPHRAGM/GASKET KIT
(Superseded to 12530306560)

$10.99

$

Usually ships in 2-4 days

0

Echo 12530205360

REPAIR KIT
(Superseded to 12530005360)

$22.99

$

In Stock, only 1 left!

0
