LHD-1700 - Lesco Hedge Trimmer (SN: 001001 - 002837) Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

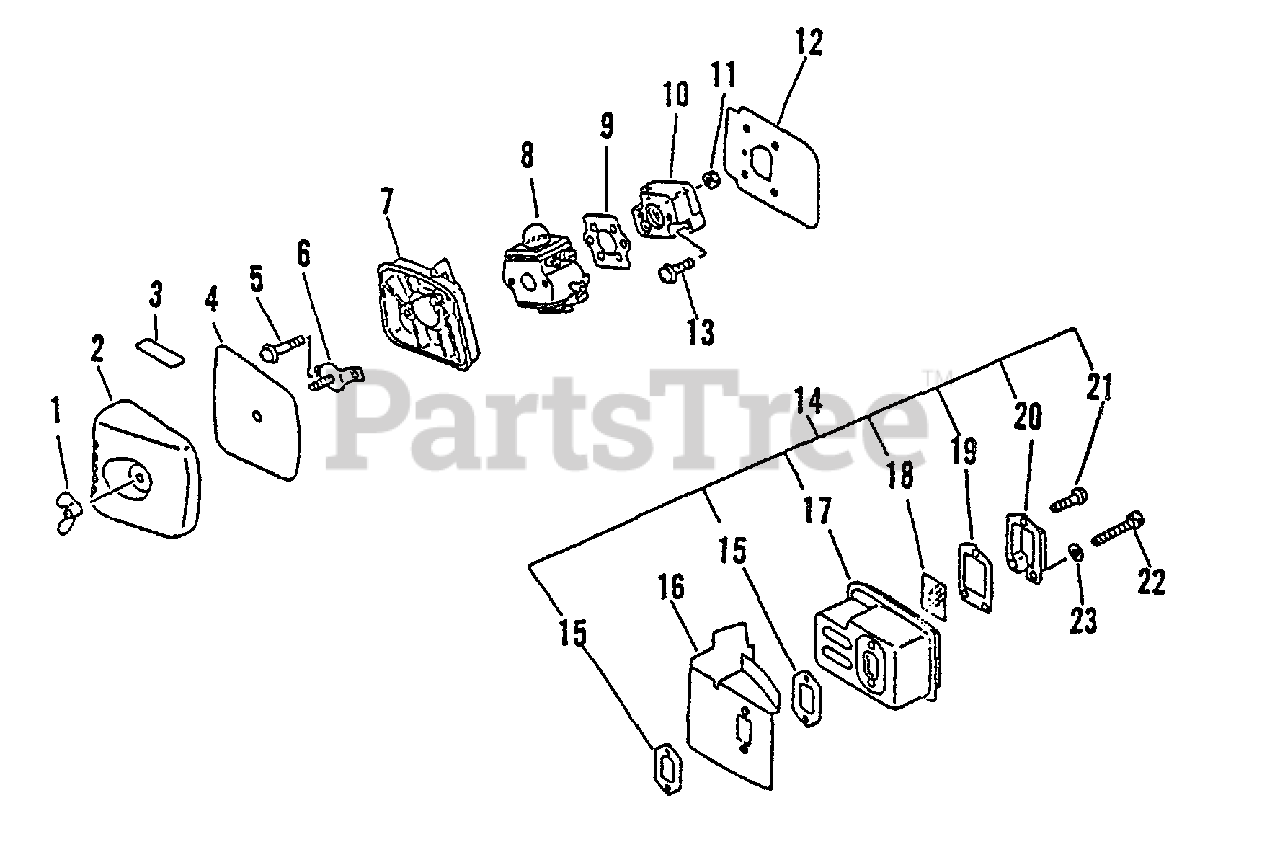

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

2

Echo 13031344331

COVER, AIR FILTER

$5.49

$

Usually ships in 2-4 days

0

3

Echo 89012105360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

4

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 9

0

5

Echo 90024205064

SCREW 5×64

$1.49

$

In Stock, Qty 9

0

6

Echo 12901105060

PLATE, PREVENT

$6.99

$

In Stock, Qty 7

0

7

Echo 13030705660

AIR FILTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 12520005360

CARBURETOR - C1U-K17
(Superseded to 12520005361)

$110.99

$

In Stock, Qty 8

0

9

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

10

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

11

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 10

0

13

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

14

Echo 14580005361

MUFFLER ASSY

Note: Includes Items 17 - 21

$86.99

$

Usually ships in 2-4 days

0

15

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

16

Echo 14587105360

COVER, MUFFLER

$11.99

$

Usually ships in 2-4 days

0

17

Echo 14581011520

MUFFLER

$63.99

$

Usually ships in 2-4 days

0

18

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

19

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

20

Echo 145809-42030

GUIDE, EXHAUST - INNER

$8.99

$

Usually ships in 2-4 days

0

21

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

22

Echo 90010505050

BOLT M5×50

$1.99

$

In Stock, Qty 11

0

23

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0
