LHD-1700 - Lesco Hedge Trimmer (SN: 002838 - 004337) Carburetor Parts Diagram

Hedge Trimmer

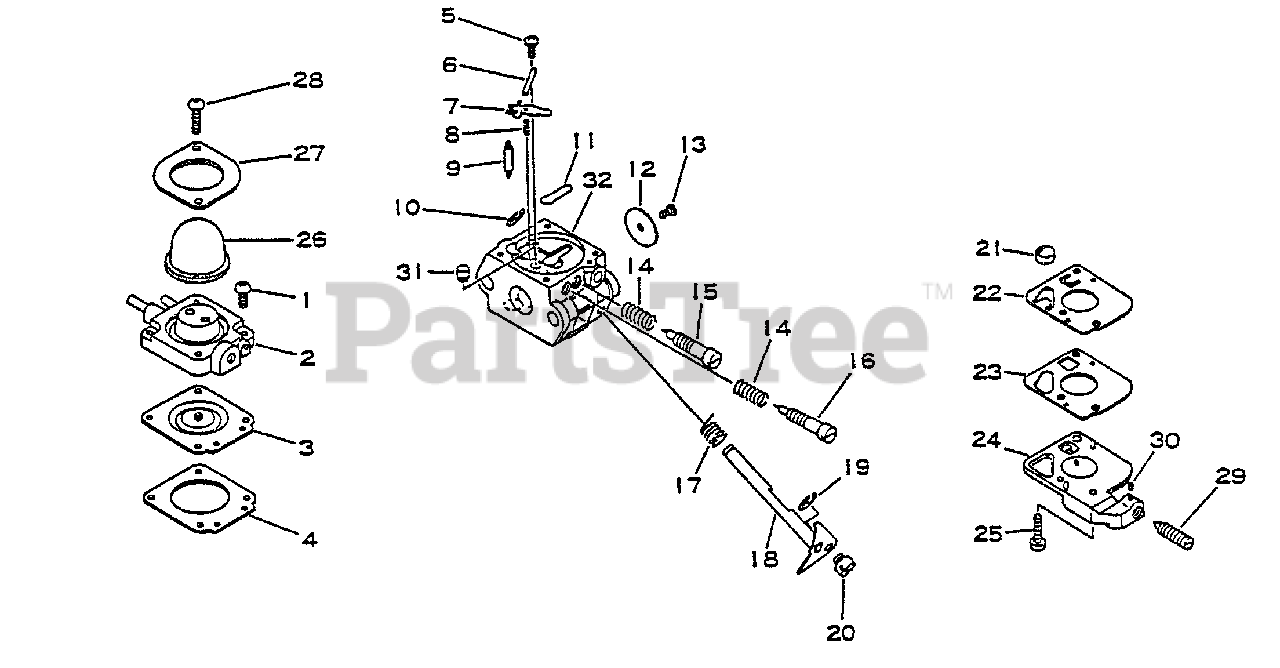

Carburetor Parts Diagram

  • Title

Echo 12520011823

CARBURETOR - C1U-K27B
(Superseded to 12520012820)

$110.99

$

In Stock, Qty 8

0

1

Echo 12531005360

SCREW

$0.99

$

In Stock, Qty 8

0

2

Echo 12538305360

BODY ASSY, PURGE

$25.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: USE GASKET/DIAPHRAGM KIT P/N 12530305360 & REPAIR KIT P/N 12530005360

$

$

Not available

4

GASKET, DIAPHRAGM

Note: USE GASKET/DIAPHRAGM KIT P/N 12530305360 & REPAIR KIT P/N 12530005360

$

$

Not available

5

SCREW

Note: USE REPAIR KIT P/N 12530005360

$

$

Not available

6

PIN, METERING LEVER

Note: USE REPAIR KIT P/N 12530005360

$

$

Not available

7

LEVER, METERING

Note: USE REPAIR KIT P/N 12530005360

$

$

Not available

8

SPRING

Note: USE REPAIR KIT P/N 12530005360

$

$

Not available

9

VALVE, NEEDLE

Note: USE REPAIR KIT P/N 12530005360

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

PLUG, WELCH

Note: USE REPAIR KIT P/N 12530005360

$

$

Not available

12

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

13

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

15

Echo 12531851330

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 125320-42030

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

17

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

18

Echo 12531711820

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

19

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

20

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

21

STRAINER

Note: USE REPAIR KIT P/N 12530005360

$

$

Not available

22

DIAPHRAGM, PUMP

Note: USE GASKET/DIAPHRAGM KIT P/N 12530305360 & REPAIR KIT P/N 12530005360

$

$

Not available

23

GASKET, PUMP

Note: USE GASKET/DIAPHRAGM KIT P/N 12530305360 & REPAIR KIT P/N 12530005360

$

$

Not available

24

Echo 12532442030

COVER, PUMP

$9.49

$

Usually ships in 2-4 days

0

25

Echo 125310-42030

SCREW

$0.99

$

Usually ships in 2-4 days

0

26

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

27

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

28

Echo P005000980

SCREW

$0.99

$

In Stock, Qty 20+

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12537642030

NOZZLE, CHECK VALVE

$5.99

$

In Stock, only 1 left!

0

Echo 12530305360

DIAPHRAGM/GASKET KIT
(Superseded to 12530306560)

$10.99

$

Usually ships in 2-4 days

0

Echo 12530005360

REPAIR KIT
(Superseded to 12530006560)

$22.99

$

In Stock, only 1 left!

0

32

UNKNOWN

$

$

Not available
