LHD-1700 - Lesco Hedge Trimmer (SN: 004338 - 999999) Gear Case Assy, Blades, Clutch Drum, Tools Parts Diagram

Hedge Trimmer

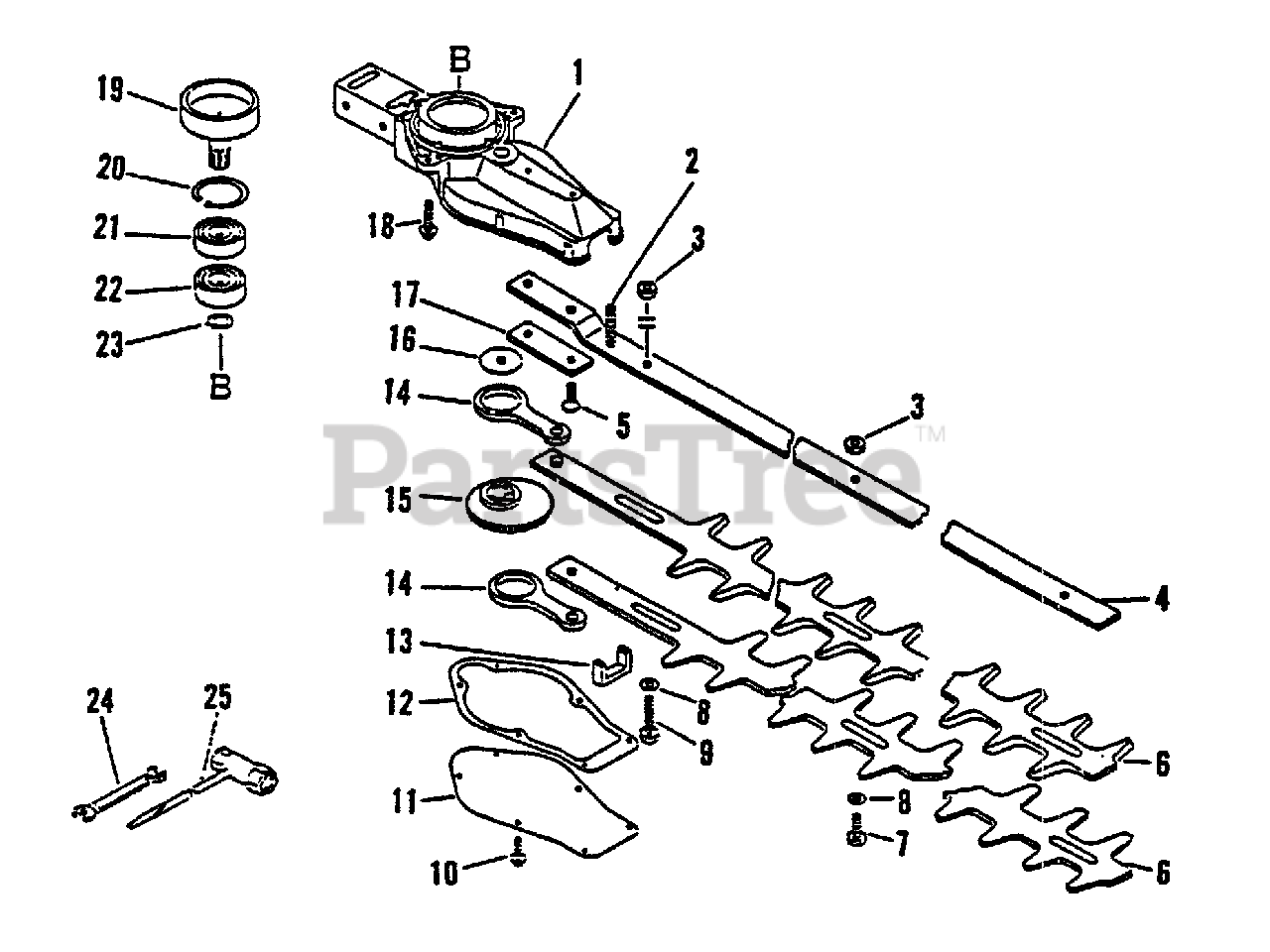

Gear Case Assy, Blades, Clutch Drum, Tools Parts Diagram

  • Title

1

Echo 61040705360

CASE, GEAR
(Superseded to 61040705361)

$126.99

$

In Stock, only 2 left!

0

2

Echo 90021205030

SCREW 5×30

$0.99

$

In Stock, Qty 16

0

3

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 16

0

4

Echo 69911005360

BAR, FRAME
(Superseded to Discontinued)

$

$

Not available

5

Echo 90021206018

SCREW 6×18

$0.99

$

Usually ships in 2-4 days

0

6

Echo 69701005360

CUTTER

$76.99

$

Usually ships in 2-4 days

0

7

Echo 69911504560

BOLT, CUTTER

$2.99

$

In Stock, only 3 left!

0

8

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

9

Echo 69911505360

BOLT 6×35

$2.99

$

Usually ships in 2-4 days

0

10

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

11

Echo 61041105360

LID, GEAR CASE
(Superseded to 61041105361)

$7.99

$

Usually ships in 2-4 days

0

12

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, only 2 left!

0

13

Echo 61042504560

SEAL

$1.49

$

In Stock, Qty 5

0

14

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$28.99

$

In Stock, only 2 left!

0

15

Echo 61031204560

GEAR

$91.99

$

In Stock, only 4 left!

0

16

Echo 61035004560

WASHER

$1.99

$

In Stock, only 3 left!

0

17

Echo 61044004560

PLATE, EYE

$2.99

$

In Stock, only 4 left!

0

18

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

19

Echo 17500504560

DRUM, CLUTCH

$52.99

$

In Stock, only 3 left!

0

20

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

21

Echo 90081336202

BEARING, BALL 6202

$12.99

$

In Stock, only 3 left!

0

22

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

23

Echo 90070100014

RING, SNAP 14

$1.49

$

In Stock, only 2 left!

0

24

Echo 89541006960

T-WRENCH 13×19×180
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0

25

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0
