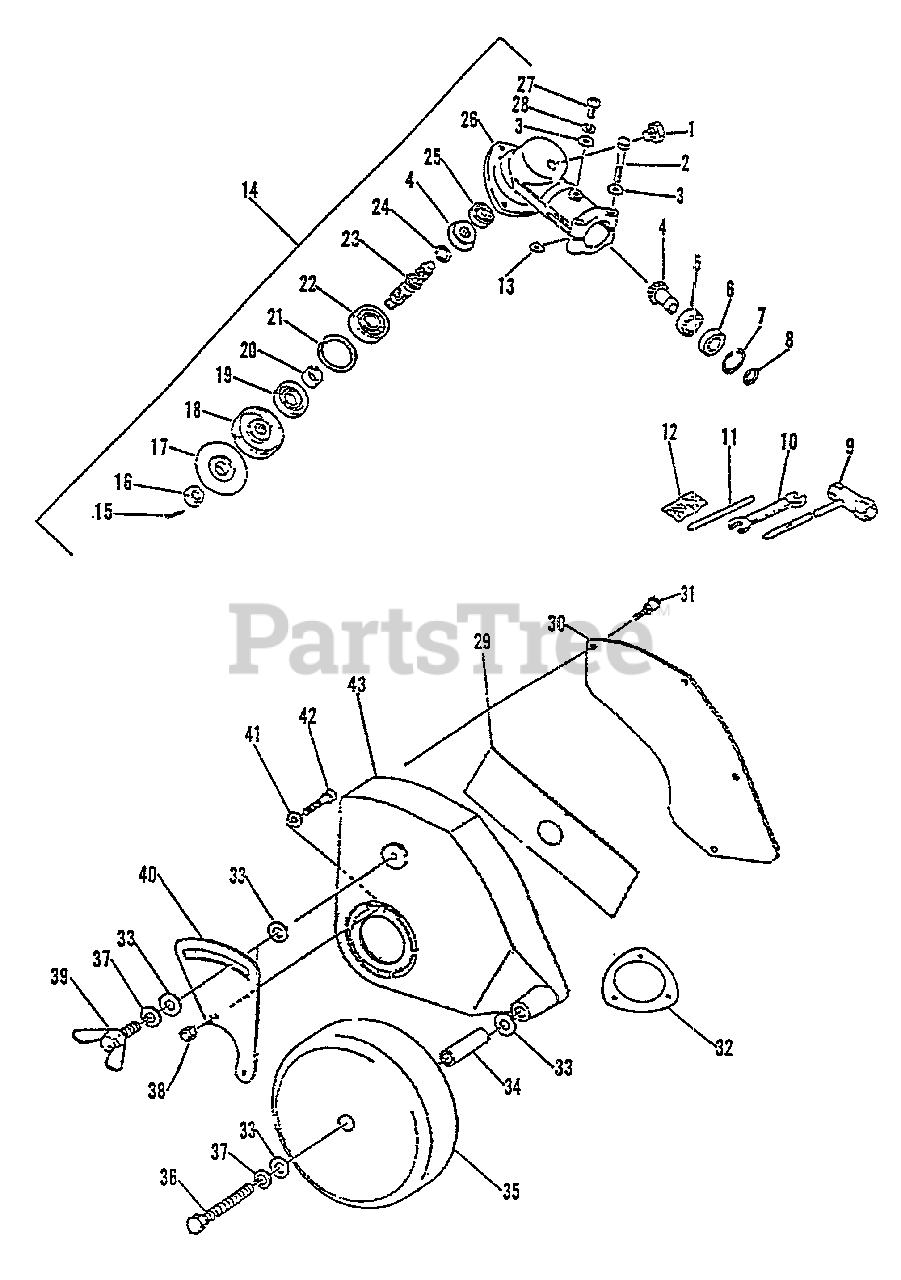

LHE-2475 - Lesco Edger (SN: 001001 - 002703) Gear Case Assy, Blade, Shield, Tools Parts Diagram

Edger

Gear Case Assy, Blade, Shield, Tools Parts Diagram

  • Title

1

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

2

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

3

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 61030044830

GEAR SET

$106.99

$

Usually ships in 2-4 days

0

5

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

6

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

7

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

8

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

9

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

10

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

11

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

12

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

13

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

14

Echo 61040252130

GEAR CASE ASSY
(Superseded to 61040252131)

Note: INCLUDES ITEMS 1 - 8, 13, 15 - 28

$283.99

$

Usually ships in 2-4 days

0

15

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

16

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

17

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

18

Echo 61031307130

PLATE, ADAPTER - UPPER
(Superseded to 61031307132)

$20.99

$

In Stock, only 3 left!

0

19

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 2 left!

0

20

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 2 left!

0

21

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

22

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

23

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

24

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

25

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

26

Echo 61046027430

HOUSING, GEAR CASE
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

27

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

28

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

29

Echo 69601552631

BLADE, EDGER

$

$

Currently unavailable

30

Echo 69901752630

SHIELD, DEBRIS

$18.99

$

Usually ships in 2-4 days

0

31

Echo 90016204010

BOLT 4×10

$1.49

$

In Stock, Qty 20+

0

32

Echo C552000110

PLATE, SHIELD Ø49.5 MM
(Superseded to C552000240)

$2.99

$

In Stock, only 3 left!

0

33

Echo 900602-00008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

34

Echo 30242452630

COLLAR 12

$3.99

$

In Stock, Qty 20+

0

35

Echo 30241052630

WHEEL - 6×1.5
(Superseded to 30241052631)

$12.99

$

In Stock, Qty 5

0

36

Echo 90010008060

BOLT - 8×60

$3.49

$

Usually ships in 2-4 days

0

37

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

38

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

39

Echo 90014508020

THUMBSCREW - 8×20

$5.49

$

Usually ships in 2-4 days

0

40

Echo 69901152630

BRACKET, SHIELD

$9.49

$

Usually ships in 2-4 days

0

41

Echo 90060800005

WASHER, CONE 5.2 MM

$1.99

$

Usually ships in 2-4 days

0

42

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 9

0

43

Echo 69901052630

WEAR PLATE
(Superseded to 69901052631)

$24.99

$

In Stock, only 1 left!

0
