LHE-2475 - Lesco Edger (SN: 002704 - 999999) Gear Case Assy, Blade, Shield, Tools Parts Diagram

Edger

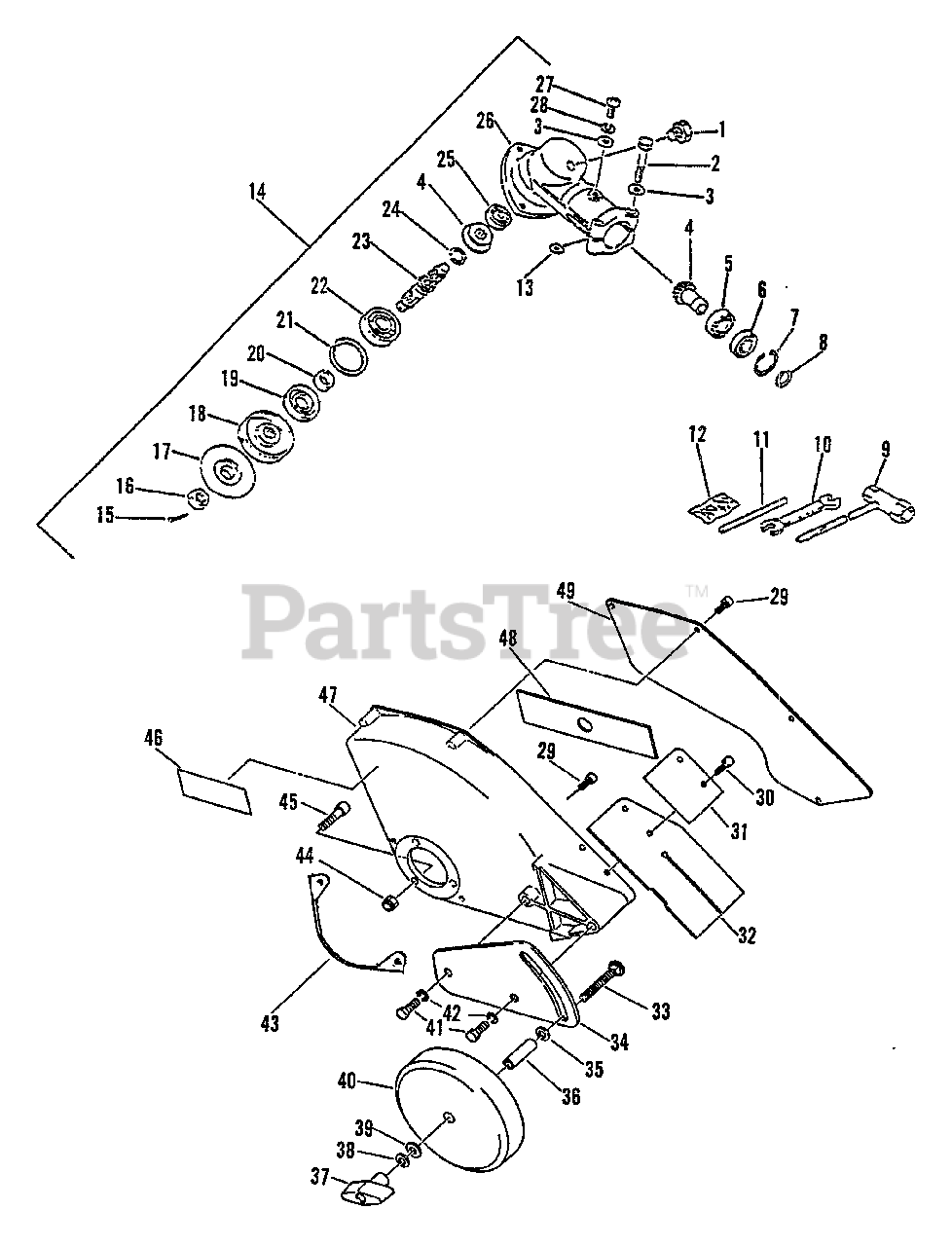

Gear Case Assy, Blade, Shield, Tools Parts Diagram

  • Title

1

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 12

0

2

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 61030044830

GEAR SET - BEVEL

$88.99

$

Usually ships in 2-4 days

0

5

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 7

0

6

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 8

0

7

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, only 2 left!

0

8

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

9

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

10

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

11

Echo 89751801131

LOCKING TOOL

$1.49

$

In Stock, only 1 left!

0

12

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 4 left!

0

13

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 7

0

14

Echo 61040252130

GEAR CASE ASSY
(Superseded to 61040252131)

Note: INCLUDES ITEMS 1-8, 13, 15-28

$236.99

$

Usually ships in 2-4 days

0

15

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

16

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 20+

0

17

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, Qty 20+

0

18

Echo 61031307130

ADAPTOR, BLADE - UPPER
(Superseded to 61031307132)

$17.99

$

In Stock, Qty 8

0

19

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 20+

0

20

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 15

0

21

Echo 90040200032

RING, RETAINING - 32

$

$

Currently unavailable

22

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

23

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 6

0

24

Echo 90040600010

RING, RETAINING - 10

$

$

Currently unavailable

25

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 16

0

26

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

27

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

28

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 6

0

29

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 20+

0

30

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 17

0

31

Echo 69901355330

FLAP, DEBRIS

$3.49

$

Usually ships in 2-4 days

0

32

Echo 69901755330

FLAP, DEBRIS

$12.99

$

In Stock, Qty 5

0

33

Echo 61025055330

BOLT - CARRIAGE

$1.99

$

In Stock, Qty 20+

0

34

Echo 30202955330

BRACKET, WHEEL
(Superseded to 30202955331)

$7.99

$

In Stock, Qty 11

0

35

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

36

Echo 30242452630

COLLAR - 12

$3.49

$

In Stock, Qty 20+

0

37

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$3.49

$

In Stock, Qty 20+

0

38

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

39

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

40

Echo C730000030

WHEEL - 6X1.5
(Superseded to C730000120)

$10.99

$

In Stock, Qty 6

0

41

Echo 90010008014

BOLT - 8X14

$0.99

$

In Stock, Qty 15

0

42

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

43

Echo 69901052630

SHIELD, DEBRIS
(Superseded to 69901052631)

$20.99

$

Usually ships in 2-4 days

0

44

Echo 90056200005

LOCKNUT

$1.49

$

In Stock, only 3 left!

0

45

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

46

Echo 89016052630

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

47

Echo 69901055330

NEW BLADE SHIELD
(Superseded to P021007590)

$60.99

$

In Stock, only 4 left!

0

48

Echo 69601552631

BLADE, EDGER

$

$

Currently unavailable

49

Echo 69901752630

COVER, SHIELD

$15.99

$

Usually ships in 2-4 days

0
