LHP23KA505 - Exmark 50" Lazer Z HP Zero-Turn Mower, 23HP Kawasaki (SN: 720000 - 789999) (2008)

50" Lazer Z HP Zero-Turn Mower, 23HP Kawasaki

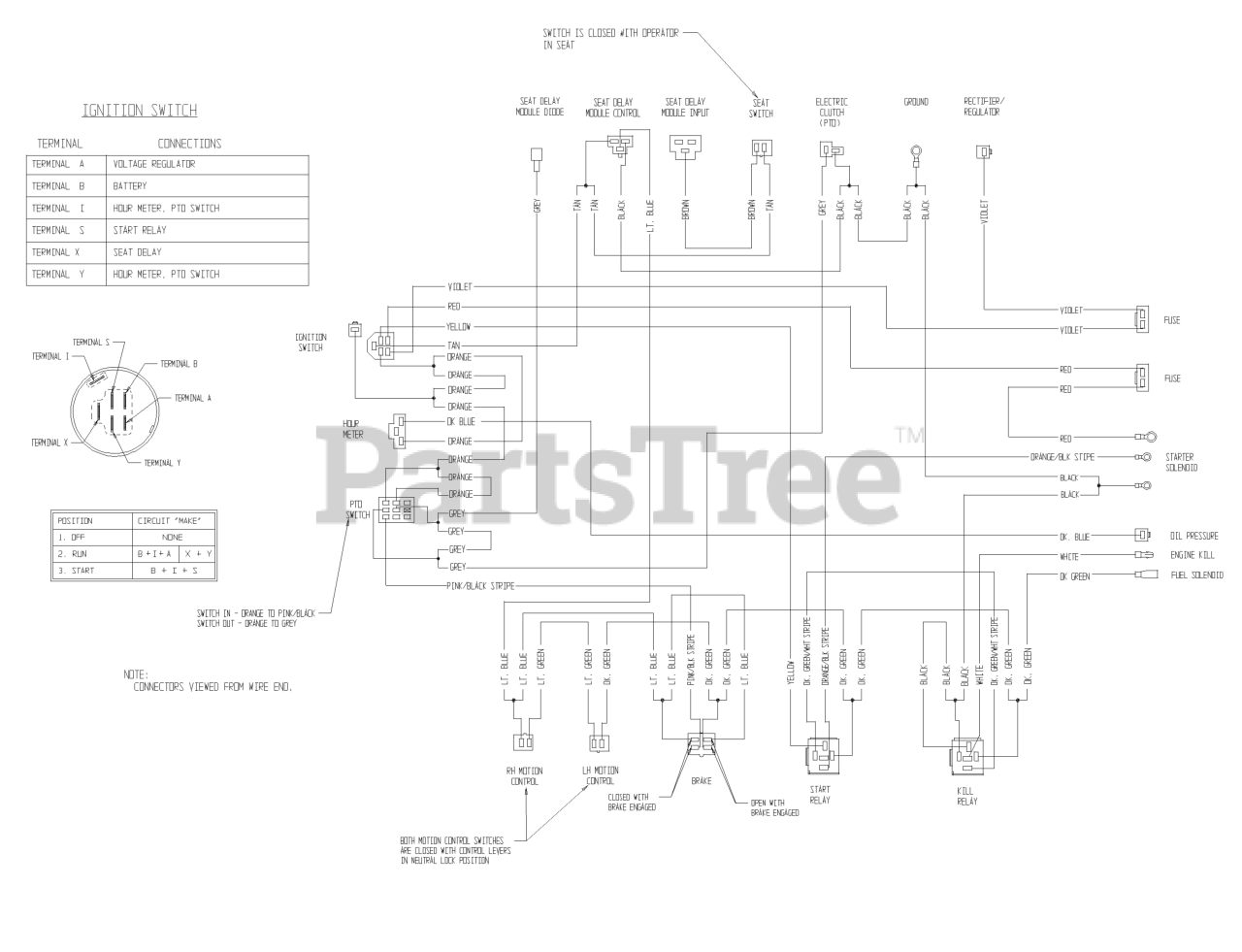

LHP23KA505 - Exmark 50" Lazer Z HP Zero-Turn Mower, 23HP Kawasaki (SN: 720000 - 789999) (2008) > Parts Diagrams (17) > Kawasaki Electrical Diagram

  • Title
Diagram Only, No Parts List Available

Diagram Only, No Parts List Available

Part# Diagram Only, No Parts List Available

Not available
