LHP23KC523 - Exmark 52" Lazer Z HP Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Engine Group Parts Diagram

52" Lazer Z HP Zero-Turn Mower, 23hp Kohler

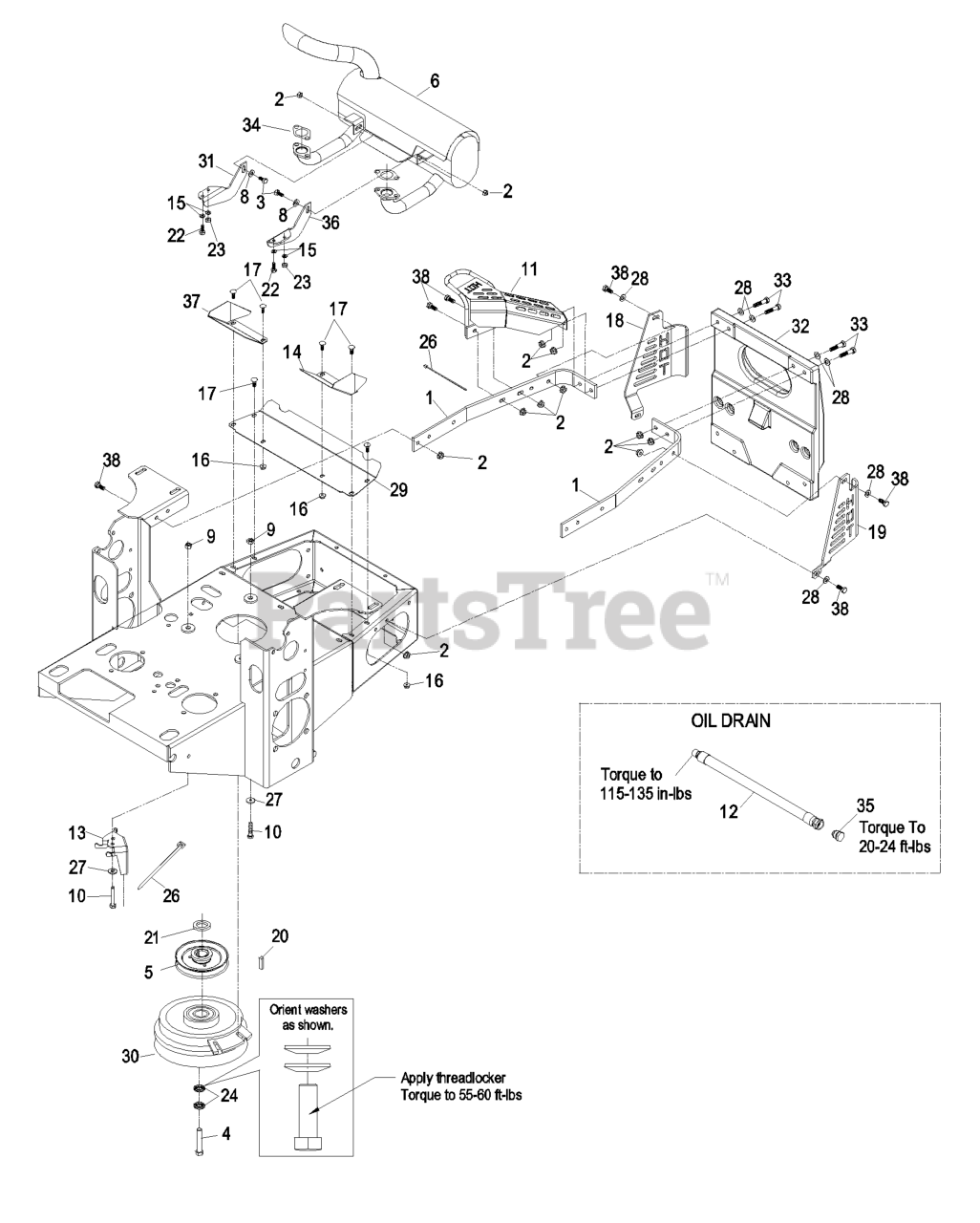

Engine Group Parts Diagram

  • Title

1

Exmark 103-3078-03

STRAP-GUARD, RH

$

$

Not available

2

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Exmark 3212-10

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

5

Exmark 103-3913

PULLEY

Note: (23HP)

$68.99

$

In Stock, Qty 5

0

Exmark 103-9772

SHEAVE,W/HUB

Note: (27HP)

$64.99

$

Usually ships in 3-6 days

0

6

Exmark 103-3426

KIT,MUFFLER (18-23 KOH)

$437.99

$

Usually ships in 3-6 days

0

7

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

11

Exmark 103-3218-03

GUARD-TAILPIPE

$76.99

$

Usually ships in 3-6 days

0

12

Exmark 109-0876

116-5326
(Superseded to 116-5326)

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$36.99

$

Usually ships in 3-6 days

0

13

Exmark 109-8385-03

ANCHOR,CLUTCH HD

Note: (27HP)

$72.99

$

Usually ships in 3-6 days

0

Exmark 109-7070-03

ANCHOR-CLUTCH

Note: (23HP)

$47.99

$

In Stock, only 4 left!

0

14

Exmark 103-3094-03

DEFLECTOR-AIR, LH,KC

$

$

Not available

15

Exmark 1-805004

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3229-10

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

18

Exmark 103-3288-03

GUARD-MUFFLER, RH

$

$

Not available

19

Exmark 103-3287-03

GUARD-MUFFLER, LH

$68.99

$

In Stock, only 1 left!

0

20

Exmark 1-807259

KEY

$2.99

$

In Stock, Qty 13

0

21

Exmark 103-2308

SPACER-CRANKSHAFT

Note: (23HP)

$8.99

$

In Stock, Qty 10

0

Exmark 103-9891

SPACER,1.63 X1.14 X .18

Note: (27HP)

$9.99

$

In Stock, only 3 left!

0

22

Exmark 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 11

0

23

Exmark 33013-00

NUT-HEX

$2.49

$

In Stock, only 4 left!

0

24

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

25

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, only 4 left!

0

26

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: (Large)

$0.99

$

In Stock, Qty 14

0

27

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0

28

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Exmark 103-2740-03

DEFLECTOR-SHORT

$27.99

$

Usually ships in 3-6 days

0

30

Exmark 109-9276

CLUTCH KIT

Note: (23HP)

$591.99

$

In Stock, Qty 5

0

Exmark 109-9275

KIT,CLUTCH

Note: (27HP)

$550.99

$

Usually ships in 3-6 days

0

Exmark 103-3012

KIT,MS200 CLUTCH BRAKE

$138.99

$

Usually ships in 3-6 days

0

31

Exmark 103-2988-03

BRACKET-MUFFLER, RH

$29.99

$

Usually ships in 3-6 days

0

32

Exmark 107-8421-03

WEIGHT-NOTCHED, 60 LB

$

$

Not available

33

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$

$

Not available

35

Exmark 109-1012

PLUG

$7.99

$

In Stock, only 1 left!

0

36

Exmark 103-2987-03

BRACKET-MUFFLER, LH

$29.99

$

In Stock, only 1 left!

0

37

Exmark 103-3095-03

DEFLECTOR-AIR, RH,KC

$

$

Not available

38

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
