LHP27KC565 - Exmark 56" Lazer Z HP Zero-Turn Mower, 27hp Kohler (SN: 720000 - 789999) (2008) Deck Group Parts Diagram

56" Lazer Z HP Zero-Turn Mower, 27hp Kohler

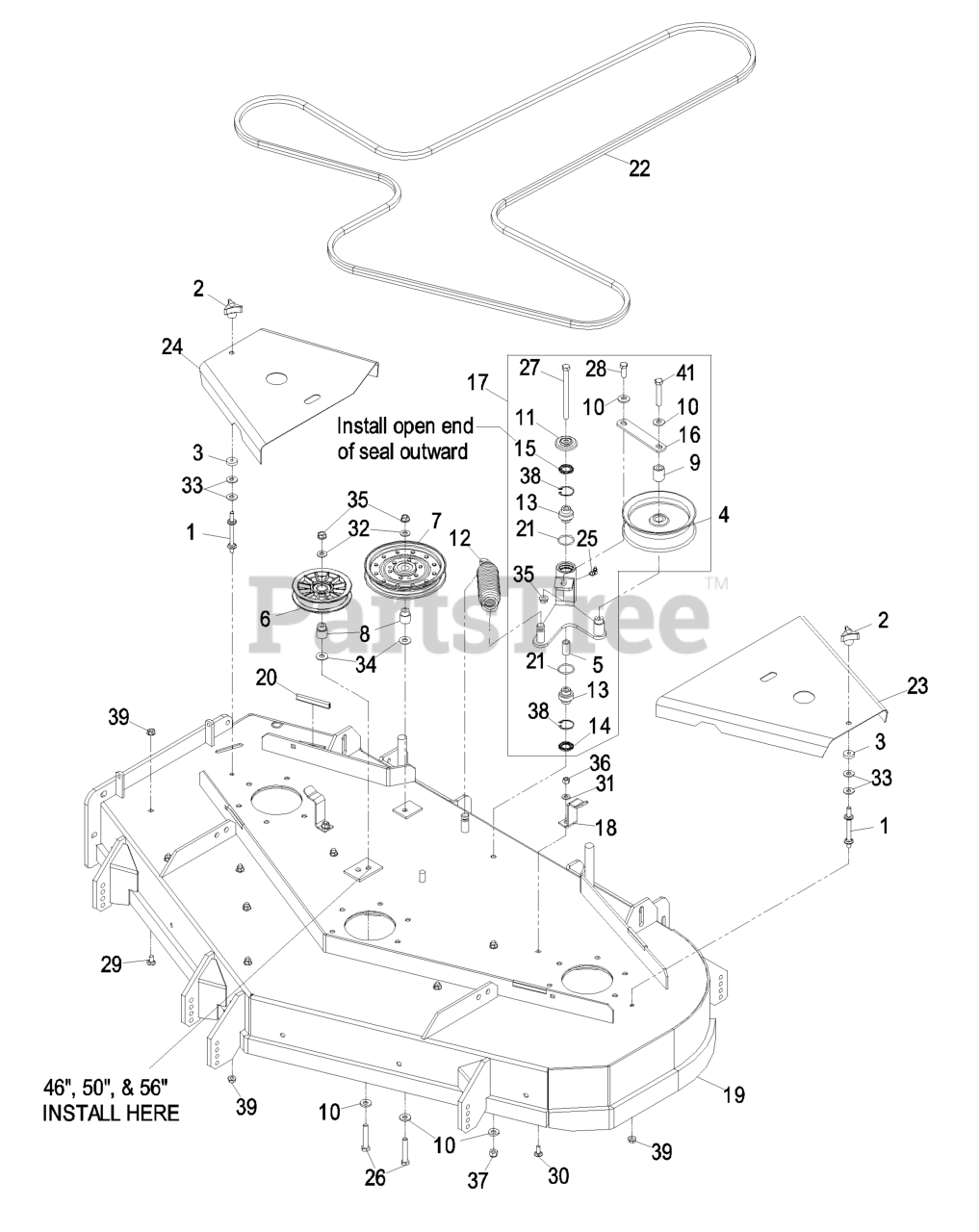

Deck Group Parts Diagram

  • Title

1

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, Qty 20+

0

2

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

3

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

4

Exmark 99-8912

116-4669
(Superseded to 116-4669)

$84.99

$

In Stock, Qty 20+

0

5

Exmark 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 7

0

6

Exmark 109-0977

PULLEY,IDLER 5"

$78.99

$

In Stock, Qty 20+

0

7

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 20+

0

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$66.99

$

In Stock, Qty 20+

0

8

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

9

Exmark 109-5997

SPACER

$11.99

$

In Stock, only 4 left!

0

10

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

11

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 6

0

12

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$29.99

$

In Stock, Qty 20+

0

13

Exmark 103-3504

BEARING-SPHERICAL

$26.99

$

In Stock, Qty 20+

0

14

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

15

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 20+

0

16

Exmark 103-5668

PLATE,GUIDE BELT (PLTD)

$10.99

$

In Stock, only 3 left!

0

17

Exmark 109-6279

KIT,IDLER ARM W/BEARINGS

Note: Kit also includes items #10 & #37.

$376.99

$

Usually ships in 3-6 days

0

18

Exmark 103-8103-01

LATCH,BELT SHIELD

$13.99

$

Usually ships in 3-6 days

0

19

Exmark 109-2154

ASM, DECK 465 W/DECALS

$3998.99

$

Usually ships in 3-6 days

0

Exmark 109-2155

ASM, DECK 505 W/DECALS

$

$

Not available

Exmark 109-2156

ASM, DECK 565 W/DECALS

$

$

Not available

20

Exmark 105-7699

STRIP-SEAL

$10.99

$

In Stock, Qty 20+

0

21

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

22

Exmark 109-2523

BELT, B147.25

$95.99

$

In Stock, Qty 20+

0

Exmark 109-0206

BELT,B152.10

$115.99

$

In Stock, Qty 5

0

Exmark 109-0096

BELT,B162.45

$120.99

$

In Stock, only 4 left!

0

23

Exmark 109-2157

SHIELD, BELT LH 465 W/DEC

$

$

Not available

Exmark 109-2158

SHIELD, BELT LH 505 W/DEC

$124.99

$

Usually ships in 3-6 days

0

Exmark 109-2159

SHIELD, BELT LH 565 W/DEC

$120.99

$

In Stock, only 1 left!

0

24

Exmark 109-2160

SHIELD, BELT RH 465 W/DEC

$

$

Not available

Exmark 109-2161

SHIELD, BELT RH 505 W/DEC

$

$

Not available

Exmark 109-2162

SHIELD, BELT RH 565 W/DEC

$120.99

$

In Stock, only 1 left!

0

25

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 19

0

26

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Exmark 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

28

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

30

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

31

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

35

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

38

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 17

0

39

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

40

Exmark 109-2169

Asm, Deck Complete 46"

Note: Complete deck assembly includes all items from pages 3 - 6.

$

$

Currently unavailable

Exmark 109-2170

Asm, Deck Complete 50"

$

$

Currently unavailable

Exmark 109-2171

Asm, Deck Complete 56"

$

$

Currently unavailable

41

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
