LHP4420KC - Exmark 44" Lazer Z HP Zero-Turn Mower, 20hp Kohler (SN: 320000 - 369999) (2002) 52" Deck Group Parts Diagram

44" Lazer Z HP Zero-Turn Mower, 20hp Kohler

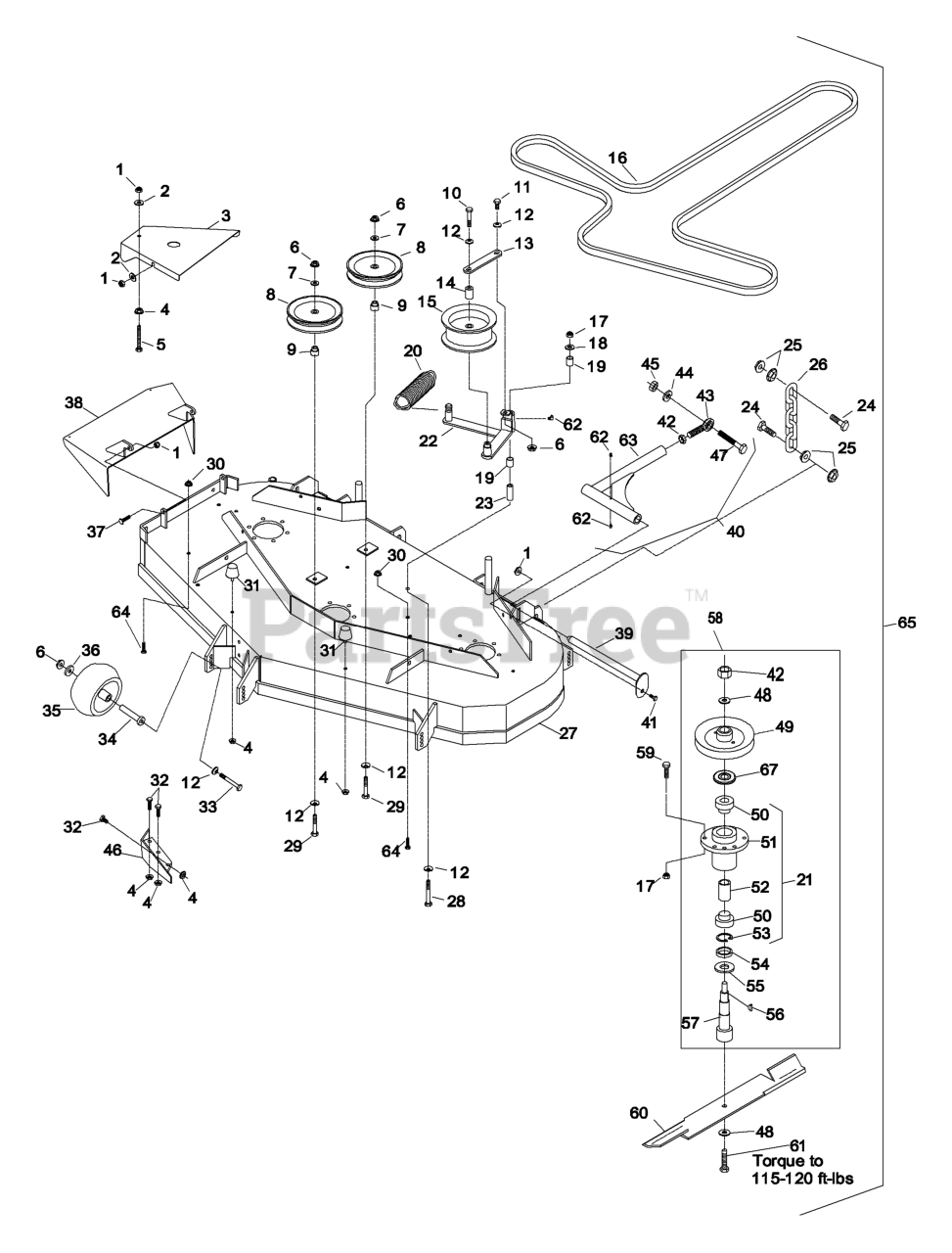

52" Deck Group Parts Diagram

  • Title

1

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Exmark 1-653482-01

103-2970-01
(Superseded to 103-2970-01)

$40.99

$

In Stock, Qty 5

0

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-800017

BOLT,TAP HH

$7.99

$

In Stock, only 2 left!

0

6

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 20+

0

9

Exmark 1-413113

BUSHING-IDLER

$6.49

$

In Stock, Qty 20+

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

13

Exmark 1-653189

PLATE

$13.99

$

In Stock, only 1 left!

0

14

Exmark 1-653190

SPACER

$19.99

$

In Stock, only 2 left!

0

15

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$71.99

$

In Stock, Qty 20+

0

16

Exmark 1-653368

BELT,BLADE DRIVE

$163.99

$

In Stock, Qty 7

0

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

19

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

20

Exmark 1-633151

116-6317
(Superseded to 116-6317)

$29.99

$

In Stock, Qty 20+

0

21

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$282.99

$

In Stock, Qty 12

0

22

Exmark 1-652192-01

103-5698
(Superseded to 103-5698)

$243.99

$

In Stock, only 4 left!

0

Exmark 1-654193

103-5698
(Superseded to 103-5698)

$243.99

$

In Stock, only 4 left!

0

23

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

24

Exmark 1-800811

SCREW-CAP, HH

$12.99

$

In Stock, only 3 left!

0

25

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

26

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 13

0

27

Exmark 1-654478

DISCONTINUED

$

$

Not available

28

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

29

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

30

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-543963

BUMPER-RUBBER

$25.99

$

In Stock, only 2 left!

0

32

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

34

Exmark 1-603602

BUSHING-ROLLER

$25.99

$

In Stock, Qty 20+

0

35

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

36

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

37

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 1-652375-01

WLD,DISCHARGE CHUTE

$213.99

$

In Stock, only 1 left!

0

39

Exmark 1-632199-01

PIN-STRUT

$37.99

$

In Stock, Qty 18

0

40

Exmark 103-1081

STRUT ASM

$292.99

$

In Stock, only 2 left!

0

41

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

42

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

43

Exmark 1-633029

BALLJOINT-SPHERICAL

$69.99

$

In Stock, Qty 20+

0

44

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

45

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

46

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$54.99

$

In Stock, only 2 left!

0

47

Exmark 1-800344

SCREW

$17.99

$

Usually ships in 3-6 days

0

48

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

49

Exmark 1-653386

SHEAVE,6.13 EOD

$109.99

$

In Stock, only 4 left!

0

50

Exmark 1-513016

BEARING

$86.99

$

In Stock, Qty 20+

0

51

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$282.99

$

In Stock, Qty 12

0

52

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 10

0

53

Exmark 1-808502

32120-8
(Superseded to 32120-8)

$2.99

$

In Stock, Qty 20+

0

54

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 8

0

55

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, only 2 left!

0

56

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 17

0

57

Exmark 103-0957

SHAFT,SPINDLE

$166.99

$

In Stock, only 4 left!

0

58

Exmark 103-1184

ASM,CUTTER HSG SERVICE

$646.99

$

Usually ships in 3-6 days

0

59

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

60

Exmark 1-633482

103-6584-S
(Superseded to 103-6584-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 1-613251

103-1578-S
(Superseded to 103-1578-S)

$39.99

$

In Stock, Qty 13

0

Exmark 1-633484

103-6582-S
(Superseded to 103-6582-S)

Note: Requires Installation Of Micro-Mulch Accessory For Proper Mulching. Mulch Kit P/N Mk523 (52")

$34.99

$

In Stock, Qty 20+

0

Exmark 1-633485

103-6580-S
(Superseded to 103-6580-S)

Note: (Optional)

$36.99

$

In Stock, Qty 13

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$39.99

$

In Stock, Qty 13

0

61

Exmark 103-0862

SCREW-CAP

$6.49

$

In Stock, Qty 20+

0

62

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

63

Exmark 103-1072-01

109-1181
(Superseded to 109-1181)

$120.99

$

In Stock, Qty 20+

0

64

Exmark 321-1

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

65

Exmark 1-654552

Deck Complete Service

$

$

Currently unavailable

66

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

67

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, Qty 19

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 12

0

Exmark MK523

Mulch Kit (52")

$

$

Currently unavailable
