LHP4818KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 18hp Kohler (SN: 150000 - 189999) (1998) Park Brake Group Parts Diagram

48" Lazer Z HP Zero-Turn Mower, 18hp Kohler

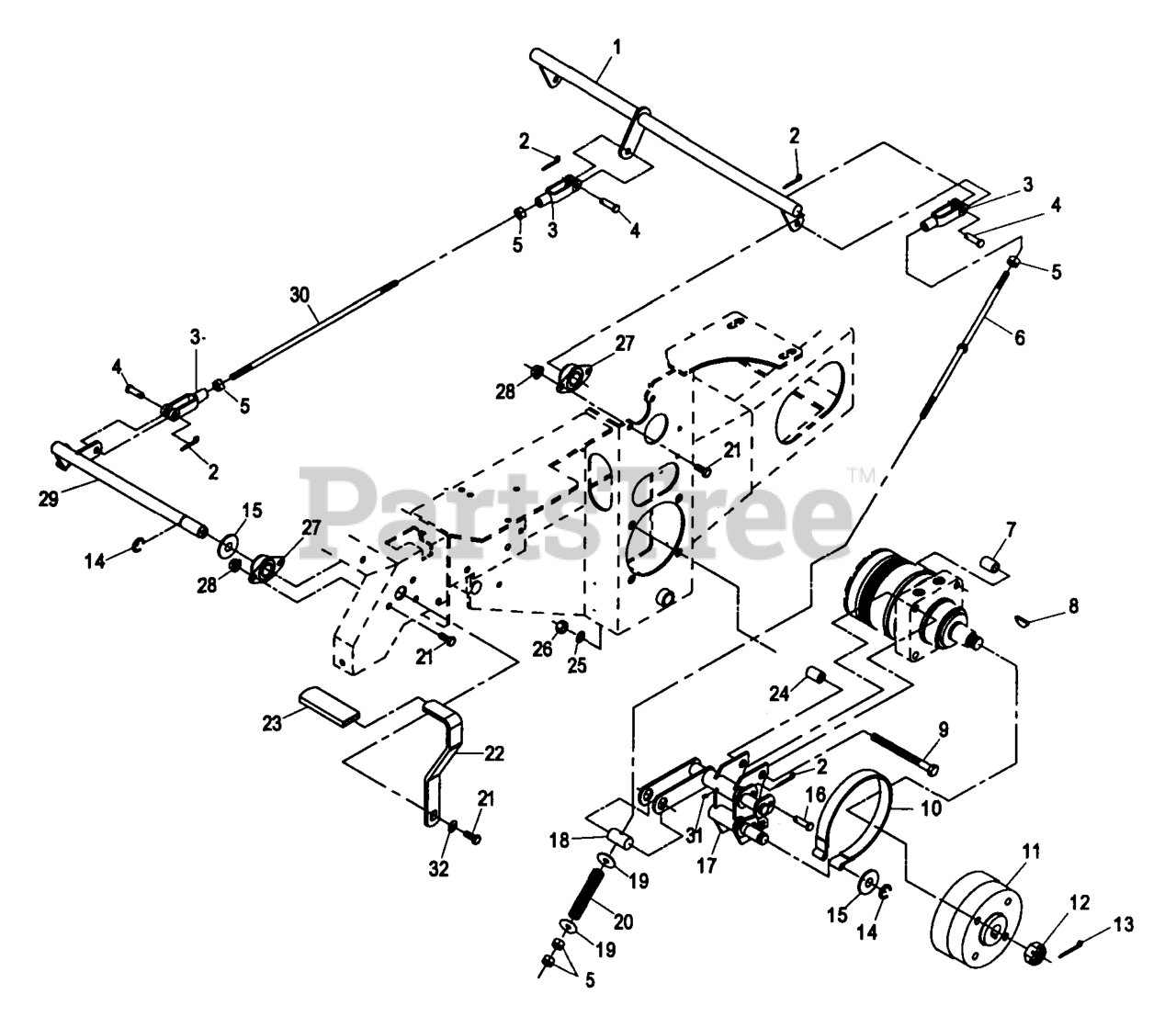

Park Brake Group Parts Diagram

  • Title

1

Exmark 1-652073-03

CRANK-BRAKE, PARK

$

$

Not available

2

Exmark 1-806761

3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

3

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

Usually ships in 3-6 days

0

4

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, only 2 left!

0

5

Exmark 1-804525

3219-3
(Superseded to 3219-3)

$1.99

$

In Stock, Qty 13

0

6

Exmark 1-633477

ROD-BRAKE

$21.99

$

In Stock, only 1 left!

0

7

Exmark 1-653068

SPACER-WHEEL

Note: 44"/48" deck

$14.99

$

Usually ships in 3-6 days

0

8

Exmark 1-807020

3257-42
(Superseded to 3257-42)

$6.99

$

In Stock, Qty 14

0

9

Exmark 1-800338

325-13
(Superseded to 325-13)

$0.99

$

In Stock, Qty 17

0

10

Exmark 1-633693

BAND,BRAKE

$91.99

$

In Stock, only 4 left!

0

11

Exmark 1-633548

1-641337
(Superseded to 1-641337)

Note: Use anti-seize on hub bore.

$289.99

$

Usually ships in 3-6 days

0

12

Exmark 1-809036

NUT-HH

$39.99

$

In Stock, only 2 left!

0

13

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 11

0

14

Exmark 1-808514

32151-48
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 7

0

15

Exmark 1-805269

3256-28
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

16

Exmark 1-808283

PIN,CLEVIS 3/8X2

$

$

Not available

17

Exmark 1-652134-03

WLD,BRAKE BRACKET LH

$

$

Not available

Exmark 1-652135-03

WLD,BRAKE BRACKET RH

Note: Not illustrated

$273.99

$

In Stock, only 1 left!

0

18

Exmark 1-633144

PIN-TRUNION

$14.99

$

Usually ships in 3-6 days

0

19

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

20

Exmark 1-633454

SPRING-BRAKE

$11.99

$

In Stock, Qty 15

0

21

Exmark 1-800290

323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 14

0

22

Exmark 1-653074-03

HANDLE-BRAKE, PARK

$70.99

$

Usually ships in 3-6 days

0

23

Exmark 1-633268

GRIP-LEVER

$15.99

$

In Stock, Qty 7

0

24

Exmark 1-653069

SPACER-WHEEL

Note: 44"/48" deck

$14.99

$

In Stock, only 1 left!

0

25

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 11

0

26

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

27

Exmark 1-633102

BEARING-FLANGE, SIDE

$20.99

$

In Stock, only 3 left!

0

28

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

29

Exmark 1-652085

103-3116
(Superseded to 103-3116)

$117.99

$

Usually ships in 3-6 days

0

30

Exmark 1-653061

LINKAGE-HANDLE, BRAKE

$23.99

$

Usually ships in 3-6 days

0

31

Exmark 1-811007

1481
(Superseded to 1481)

$6.99

$

In Stock, only 1 left!

0

32

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0
