LHP4818KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 18hp Kohler (SN: 220000 - 259999) (2000) Hydraulic Group Parts Diagram

48" Lazer Z HP Zero-Turn Mower, 18hp Kohler

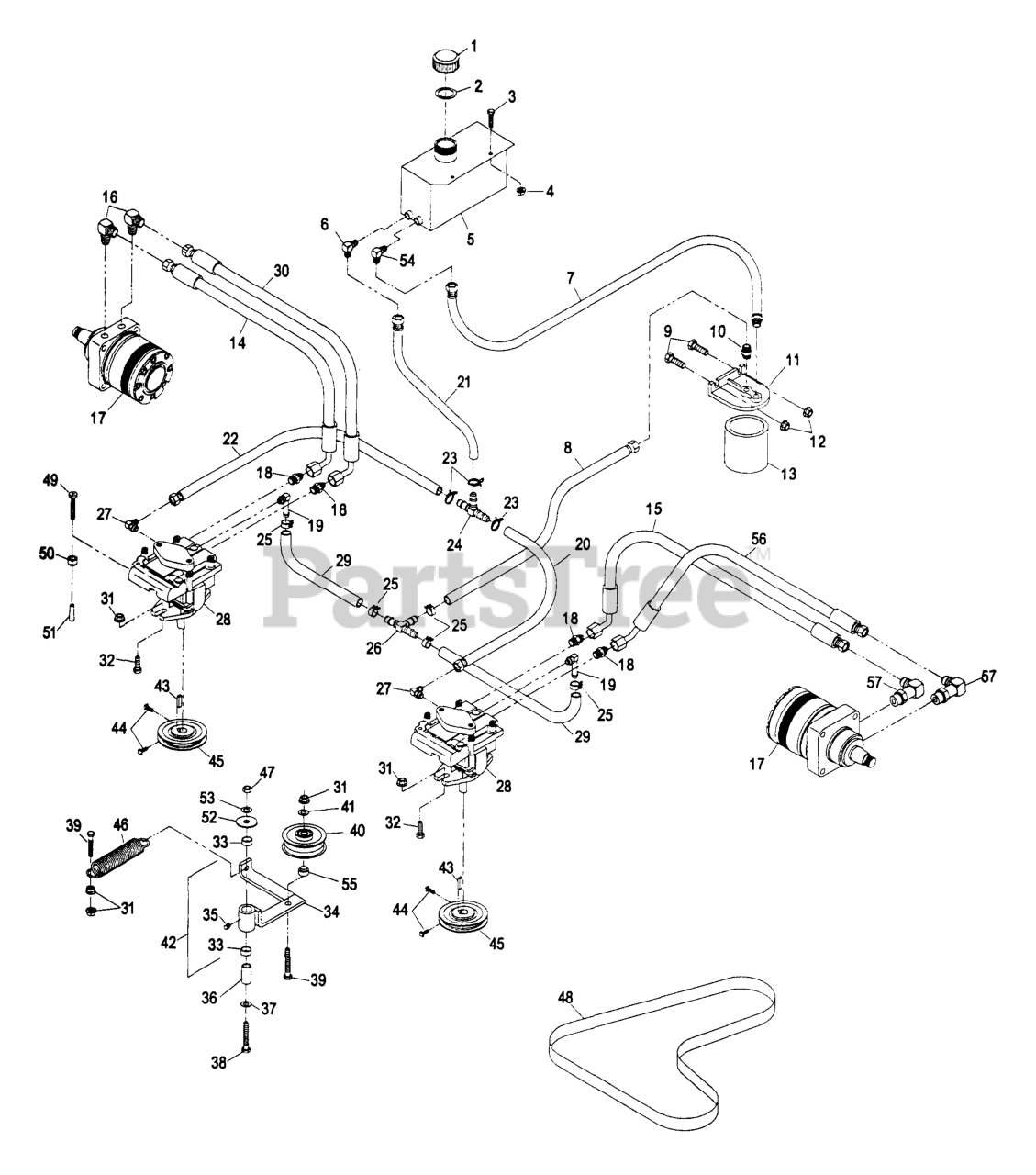

Hydraulic Group Parts Diagram

  • Title

1

Exmark 1-513167

CAP

$29.99

$

In Stock, Qty 9

0

2

Exmark 1-523103

GASKET-CAP, TANK

$7.49

$

In Stock, Qty 6

0

3

Exmark 1-800260

321-15
(Superseded to 321-15)

$1.49

$

In Stock, Qty 11

0

4

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-512166-03

DISCONTINUED

Note: Use Teflon Pipe Sealant or equivalent on hydraulic reservoir and filter head fittings.

$

$

Not available

6

Exmark 1-603987

FITTING-ELBOW

$22.99

$

Usually ships in 3-6 days

0

7

Exmark 1-654320

HOSE

$61.99

$

In Stock, only 1 left!

0

8

Exmark 1-654509

HOSE

$80.99

$

Usually ships in 3-6 days

0

9

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-513510

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

11

Exmark 1-603720

DISCONTINUED

Note: Use Teflon Pipe Sealant or equivalent on hydraulic reservoir and filter head fittings.

$

$

Not available

12

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

13

Exmark 1-513211

109-4180
(Superseded to 109-4180)

$52.99

$

In Stock, Qty 20+

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: Use only for operation below 32°F (0°C)

$52.99

$

In Stock, only 2 left!

0

14

Exmark 1-653186

HOSE-FRONT

$86.99

$

In Stock, Qty 7

0

Exmark 1-653436

HOSE,HYDRAULIC

$90.99

$

In Stock, only 3 left!

0

15

Exmark 1-653409

HOSE,HYDRAULIC

$119.99

$

Usually ships in 3-6 days

0

Exmark 1-653434

HOSE,HYDRAULIC

$96.99

$

Usually ships in 3-6 days

0

16

Exmark 1-633605

FITTING-HYD, 90 DEG

$52.99

$

Usually ships in 3-6 days

0

Exmark 1-603919

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

17

Exmark 1-523328

MOTOR-WHEEL

$1377.99

$

Usually ships in 3-6 days

0

Exmark 1-000139

Kit, Bearing

$

$

Not available

Exmark 1-000099

103-6994
(Superseded to 103-6994)

$349.99

$

Usually ships in 3-6 days

0

18

Exmark 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, Qty 8

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

19

Exmark 1-603989

FITTING

$40.99

$

Usually ships in 3-6 days

0

Exmark 1-603923

O-RING

$2.99

$

Usually ships in 3-6 days

0

20

Exmark 1-632285

HOSE ASM

$48.99

$

In Stock, only 3 left!

0

21

Exmark 1-654144

HOSE

$67.99

$

Usually ships in 3-6 days

0

22

Exmark 1-632286

HOSE ASM

$30.99

$

In Stock, only 3 left!

0

23

Exmark 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 1-603722

FITTING-TEE, HOSE

$26.99

$

Usually ships in 3-6 days

0

25

Exmark 1-603827

CLAMP-HOSE

$2.99

$

In Stock, only 4 left!

0

26

Exmark 1-603721

FITTING-TEE, HOSE

$

$

Not available

27

Exmark 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

28

Exmark 1-603841

103-2766
(Superseded to 103-2766)

$1570.99

$

Usually ships in 3-6 days

0

29

Exmark 1-413273

HOSE

$15.99

$

In Stock, only 1 left!

0

30

Exmark 1-653187

HOSE-REAR, RH

$88.99

$

In Stock, only 3 left!

0

Exmark 1-653437

HOSE,HYDRAULIC

$102.99

$

In Stock, only 1 left!

0

31

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

32

Exmark 1-800293

323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

33

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

34

Exmark 1-652142

109-4311
(Superseded to 109-4311)

$211.99

$

In Stock, only 3 left!

0

35

Exmark 1-811008

302-40
(Superseded to 302-40)

$3.49

$

In Stock, Qty 19

0

36

Exmark 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

37

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

38

Exmark 1-800299

323-13
(Superseded to 323-13)

$3.99

$

In Stock, Qty 20+

0

39

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

40

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$35.99

$

In Stock, Qty 20+

0

41

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

42

Exmark 1-654143

109-4311
(Superseded to 109-4311)

$211.99

$

In Stock, only 3 left!

0

43

Exmark 1-807272

KEY

$6.49

$

In Stock, Qty 17

0

44

Exmark 1-806050

DISCONTINUED (EXMARK)

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on setscrews.

$

$

Not available

45

Exmark 1-653156

PULLEY

$72.99

$

Usually ships in 3-6 days

0

Exmark 1-413010

SHEAVE ASM

$53.99

$

In Stock, Qty 12

0

46

Exmark 1-603414

SPRING-EXTENSION

$22.99

$

In Stock, Qty 13

0

47

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

48

Exmark 1-653163

103-4760
(Superseded to 103-4760-SL)

$49.99

$

In Stock, Qty 20+

0

Exmark 1-653416

103-5589
(Superseded to 103-5589)

$37.99

$

In Stock, Qty 5

0

49

Exmark 1-801063

SCREW

$5.99

$

Usually ships in 3-6 days

0

50

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

51

Exmark 1-613073

GRIP-VALVE, DUMP

$6.49

$

Usually ships in 3-6 days

0

52

Exmark 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

53

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

54

Exmark 1-603988

FITTING-ELBOW

$

$

Not available

55

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

56

Exmark 1-653410

HOSE,HYDRAULIC

$119.99

$

Usually ships in 3-6 days

0

Exmark 1-653435

HOSE,HYDRAULIC

$

$

Not available

57

Exmark 1-633786

FITTING-90 DEG

$

$

Not available

Exmark 1-840022

PRO-LOCK,NUT TYPE

$21.99

$

Usually ships in 3-6 days

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 12
