LHP4820KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 20HP Kohler (SN: 320000 - 369999) (2002)

48" Lazer Z HP Zero-Turn Mower, 20HP Kohler

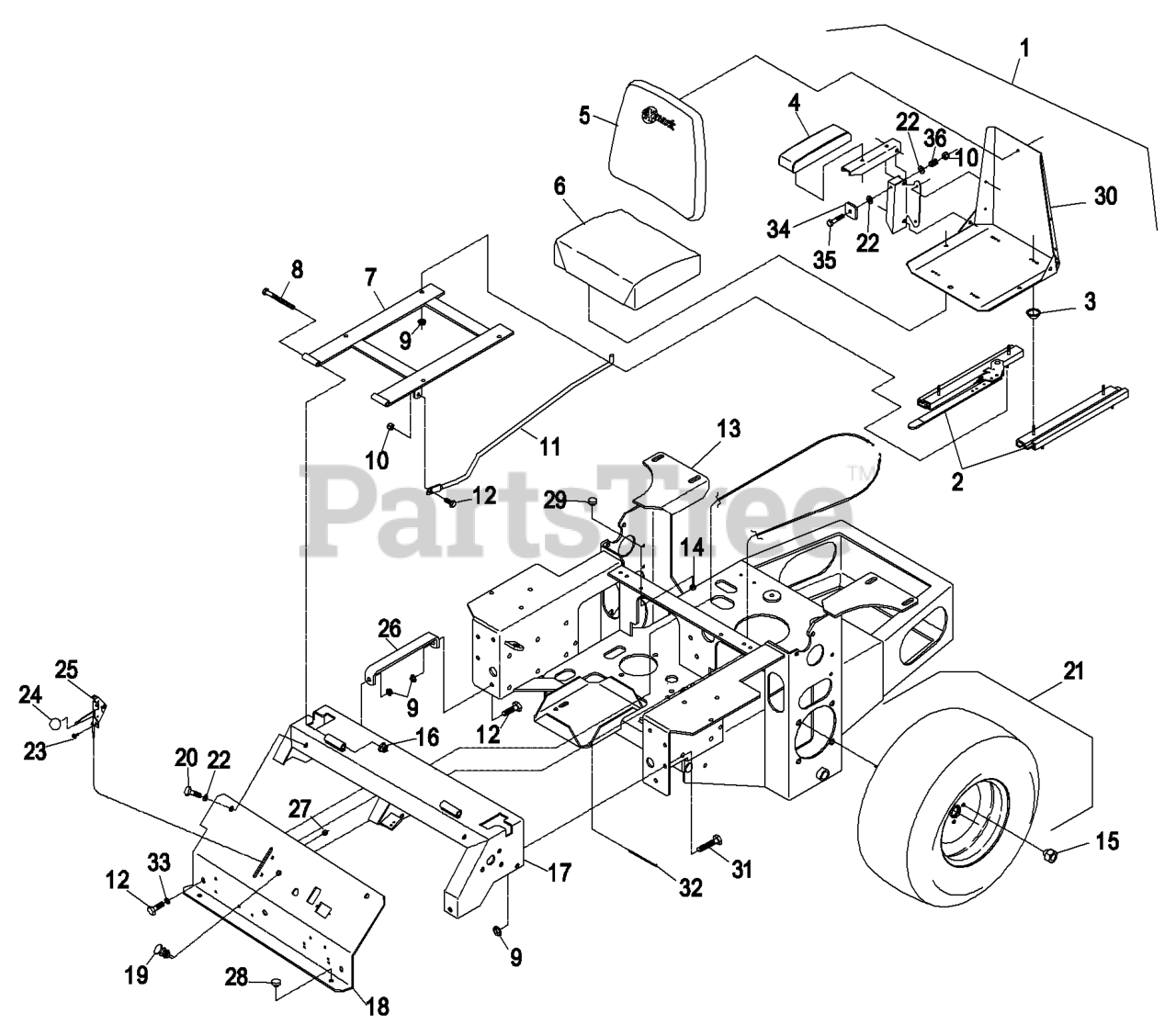

LHP4820KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 20HP Kohler (SN: 320000 - 369999) (2002) > Parts Diagrams (16) > Main Frame Group

  • Title
103-0287

1

Seat,Complete W/Armrests

Part# 103-0287 (Superseded to 103-3524)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $499.21

1-643255

2

Track, Seat (4" Adjust.)

Part# 1-643255

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $146.82

1-543401

3

Spacer, Seat Track

Part# 1-543401

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.57

103-0292

4

Cushion, Armrest (Rh)

Part# 103-0292

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $71.65

103-0291

Cushion, Armrest (Lh)

Part# 103-0291

Note: Not Illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $71.65

103-0289

5

Cushion, Backrest

Part# 103-0289 (Superseded to 103-3520)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $180.74

103-0290

6

Cushion, Seat

Part# 103-0290 (Superseded to 103-3521)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $204.23

1-632187-03

7

Frame, Seat Mount

Part# 1-632187-03 (Superseded to 107-3052-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $261.58

323-39

8

Screw, 3/8-16 X 5

Part# 323-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.28

32128-20

9

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

3296-29

10

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

103-1731

11

Rod, Seat Hold Up

Part# 103-1731

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.08

322-5

12

Screw, 5/16-18 X 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

103-1944-03

13

Frame, Engine Deck

Part# 103-1944-03 (Superseded to 109-3970)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1664.89

3296-42

14

Nut, Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.38

242-50

15

Nut, Wheel 1/2-20

Part# 242-50

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.57

3296-39

16

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

103-2197-03

17

Console Wldmt, Front

Part# 103-2197-03 (Superseded to 103-3452)

OEM Warranty Repair Part for Exmark

Not available

103-0724

18

Panel, Instrument W/Decals (103-1194-03)

Part# 103-0724

OEM Warranty Repair Part for Exmark

Not available

1-603336

19

Cable, Choke

Part# 1-603336

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.24

322-3

20

Screw, 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

1-653010

21

Wheel/Tire Assy (44" Deck)

Part# 1-653010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $378.07

1-653159

Wheel/Tire Assy (48" & 52" Deck)

Part# 1-653159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $368.29

1-653158

Wheel (44" Deck)

Part# 1-653158

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $137.16

1-653161

Wheel (48" & 52" Deck)

Part# 1-653161

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $133.36

1-653160

Tire, 23 X 9.5-12 4 Ply

Part# 1-653160

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $244.71

3256-23

22

Washer, Flat 5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

1-807513

23

Bolt, Carriage #10-24 X 1/2

Part# 1-807513

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.28

1-513592

24

Ball, (Red) Throttle Cable

Part# 1-513592

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-633696

25

Cable, Throttle

Part# 1-633696

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $44.04

1-653089-03

26

Bracket, Instrument Panel

Part# 1-653089-03 (Superseded to 103-7935-03)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.22

3296-2

27

Nut, Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

1-513658

28

Bumper

Part# 1-513658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.17

1-523420

29

Bumper, Rubber

Part# 1-523420 (Superseded to 109-2365)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

1-633859

30

Seat Frame

Part# 1-633859

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $160.15

322-2

31

Screw, 5/8-18 X 5/8

Part# 322-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.02

1-303335

32

Tie, Plastic

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.98

3256-3

33

Washer, Flat Std 5/16

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.37

103-0284

34

Tab

Part# 103-0284

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.86

322-7

35

Screw, Hhc 5/16-18 X 1 1/2

Part# 322-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85

1-633349

36

Spring

Part# 1-633349

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.43

103-1194-03

99-3932

Part# 103-1194-03 (Superseded to 99-3932)

OEM Warranty Repair Part for Exmark

Not available
