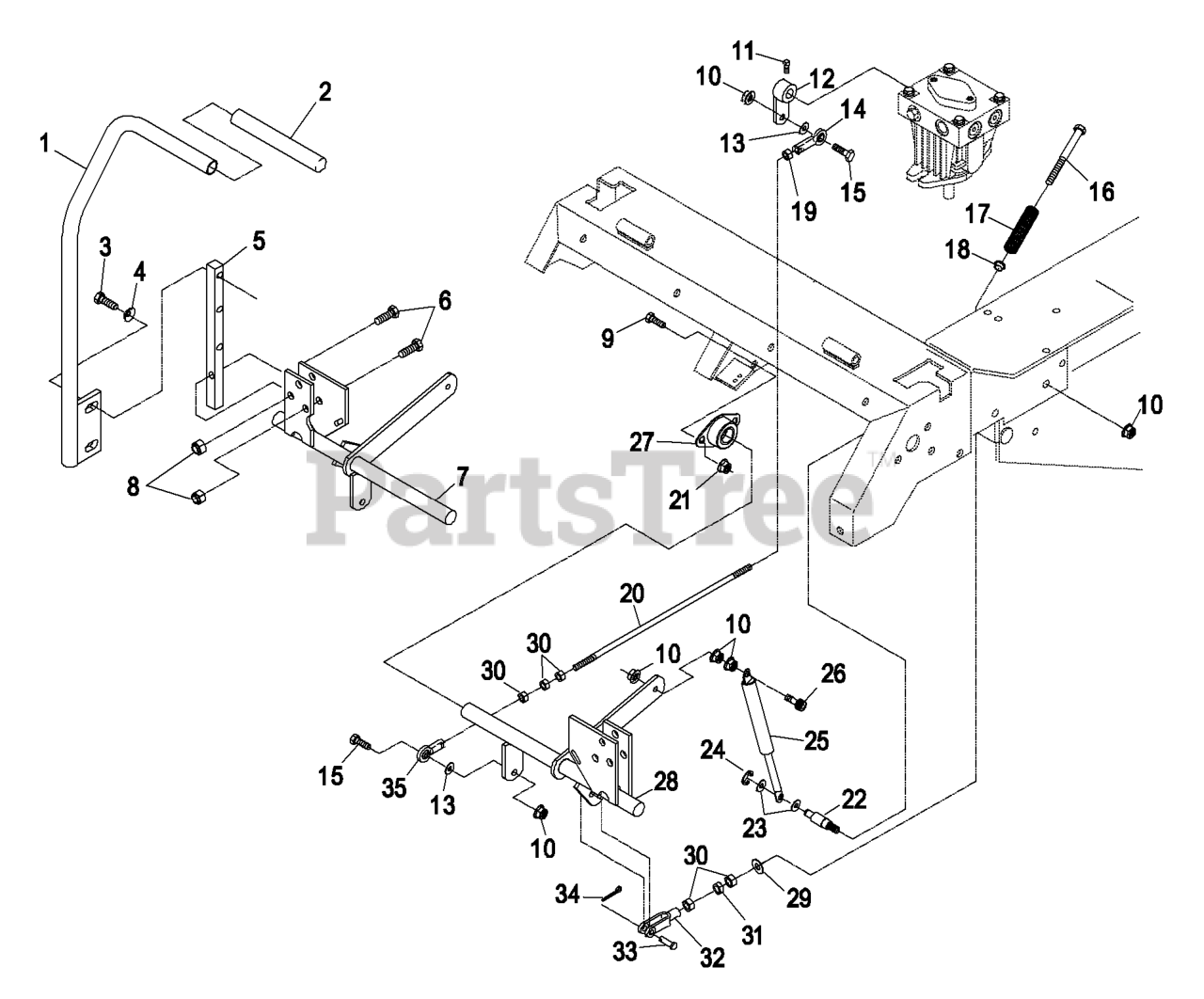

LHP4820KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 20HP Kohler (SN: 320000 - 369999) (2002) > Parts Diagrams (16) > Motion Control Levers

  • Title
103-0632

1

Handle W/Grip (Rh)

Part# 103-0632

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $68.51

103-0410-03

Handle, Motion Cntrl (Rh)

Part# 103-0410-03 (Superseded to 103-0632)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $68.51

103-0631

Handle W/Grip (Lh)

Part# 103-0631

Note: Not Illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $68.51

103-0409-03

Handle, Motion Cntrl (Lh)

Part# 103-0409-03 (Superseded to 103-0631)

Note: Not Illustrated

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $68.51

1-633257

2

Grip, Motion Cntrl Handle

Part# 1-633257

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.59

323-6

3

Screw, 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

98-5975

4

Washer, Disc Spring 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

103-0407

5

Arm, Control Shaft

Part# 103-0407

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.63

323-9

6

Screw, 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

103-2200

7

Bracket, Motion Cntrl (Rh)

Part# 103-2200 (Superseded to 109-3911)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $133.03

3296-39

8

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

323-4

9

Screw, 3/8-16 X 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

32128-20

10

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

1-803022

11

Setscrew, 5/16 X 5/8

Part# 1-803022

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setcrews

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

1-653092

12

Arm, Pump Control

Part# 1-653092 (Superseded to 103-3717)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.45

3256-3

13

Washer, 5/16 Std

Part# 3256-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.37

1-633152

14

Ball Joint (Lh)

Part# 1-633152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

322-6

15

Screw, 5/16-18 X 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.38

1-603737

16

Bolt, (Neutral Return)

Part# 1-603737

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.02

1-603807

17

Spring, (Neutral Return)

Part# 1-603807

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

1-603735

18

Bushing, Nylon (Reverse Ind.)

Part# 1-603735

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.63

1-804524

19

Nut, 5/16-24 (Lh)

Part# 1-804524

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

1-653046

20

Link, Pump Control

Part# 1-653046 (Superseded to 103-3066)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.16

3290-357

21

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

1-653316

22

Pin, Damper Anchor

Part# 1-653316 (Superseded to 103-4101)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.77

3256-23

23

Washer, 5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

32120-35

24

E-Ring

Part# 32120-35

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.30

1-523027

25

Damper

Part# 1-523027 (Superseded to 109-2339)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $59.94

1-403180

26

Screw, 5/16-18 X 1 1/4 Special

Part# 1-403180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.41

1-633102

27

Bearing, Flanged

Part# 1-633102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

103-2199

28

Bracket, Motion Control (Lh)

Part# 103-2199 (Superseded to 103-4774)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $106.45

3256-2

29

Washer, 1/4

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.48

3219-2

30

Nut, 5/16-24

Part# 3219-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

3220-2

31

Nut, Jam 5/16-24

Part# 3220-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.14

1-303105

32

Yoke

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.63

1-808280

33

Pin, Clevis 5/16 X 1

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.90

3272-5

34

Pin, Cotter 3/32 X 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.07

1-543017

35

Ball Joint (Rh)

Part# 1-543017

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

1-840022

Pro-Lock, Nut Type

Part# 1-840022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.45
