LHP4821KA - Exmark 48" Lazer Z HP Zero-Turn Mower, 21HP Kawasaki (SN: 440000 - 509999) (2004)

48" Lazer Z HP Zero-Turn Mower, 21HP Kawasaki

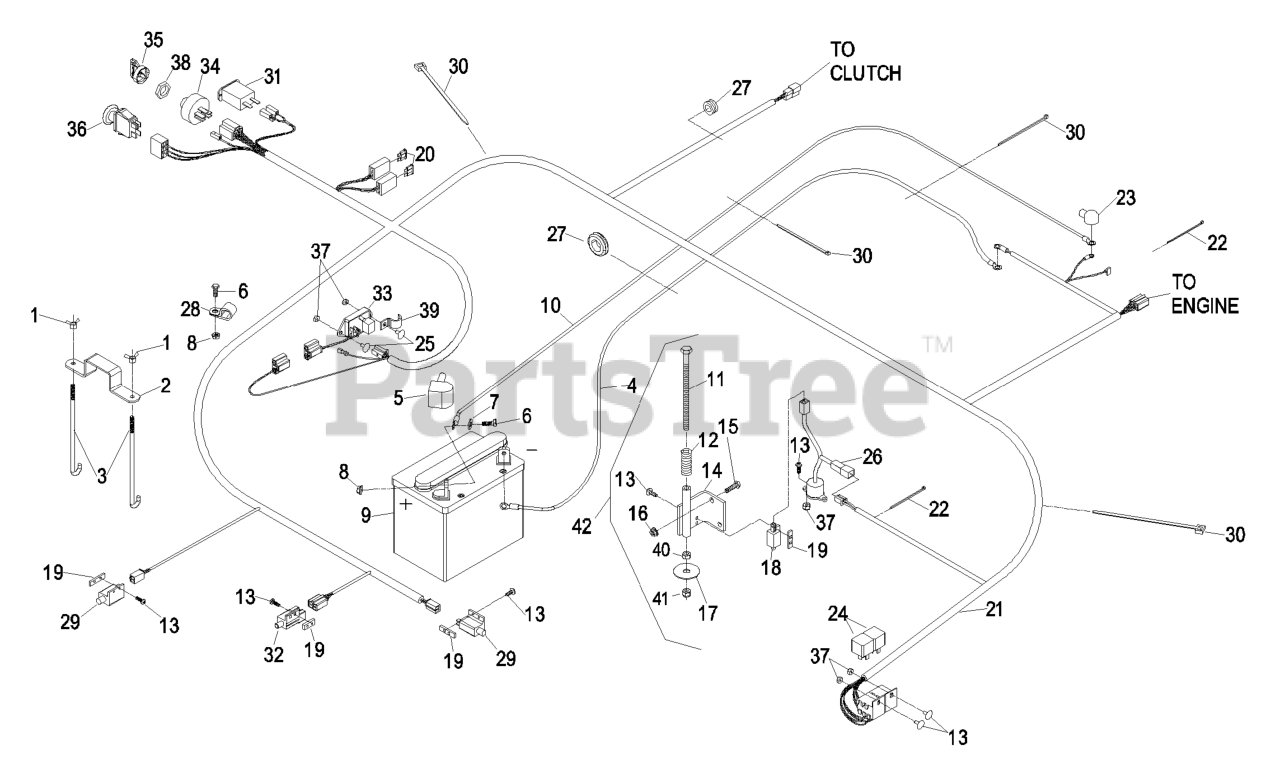

LHP4821KA - Exmark 48" Lazer Z HP Zero-Turn Mower, 21HP Kawasaki (SN: 440000 - 509999) (2004) > Parts Diagrams (16) > Kohler Electrical Group

  • Title
1-543792

1

Wingnut, Nyloc 1/4-20

Part# 1-543792

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.46

1-633652-03

2

Strap, Battery Holdown

Part# 1-633652-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.05

1-633651

3

Bolt, Battery Holdown

Part# 1-633651

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.58

103-0705

4

Cable, Ground (-)

Part# 103-0705

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.94

1-543391

5

Insulator, Battery

Part# 1-543391 (Superseded to 109-2407)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

321-4

6

Screw, 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

3256-2

7

Washer, 1/4 Flat

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

32128-33

8

Nut, 1/4-20 Whizlock

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

103-0293

9

Battery, 12v

Part# 103-0293

OEM Warranty Repair Part for Exmark

Not available

1-523281

10

Cable, Battery (+)

Part# 1-523281 (Superseded to 109-7630)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.60

1-800282

11

Screw, 5/16-18 X 7

Part# 1-800282

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-523415

12

Spring, Seat Switch

Part# 1-523415

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $21.79

3290-500

13

Screw, #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-652072-03

14

Bracket Wldmt, Seat Switch

Part# 1-652072-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.34

322-3

15

Screw, 5/16-18 X 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

32128-20

16

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.67

1-653036

17

Washer

Part# 1-653036

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.34

1-513152

18

Switch, Seat

Part# 1-513152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

1-633181

19

Plate

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

1-816001

20

Fuse-20 Amp

Part# 1-816001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

103-4893

21

Harness, Wiring

Part# 103-4893 (Superseded to 103-9259)

Note: Use dielectric grease on all wiring harness connectors.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $269.61

1-303287

22

Plastic Tie, Small

Part# 1-303287

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.16

1-543393

23

Insulator, Solenoid (+)

Part# 1-543393

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

1-643275

24

Relay, 12 V

Part# 1-643275

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.64

1-803075

25

Screw-Head, Truss [#10-24x.75]

Part# 1-803075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-633782

26

Switch, Tilt

Part# 1-633782 (Superseded to 109-4577)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.44

1-543286

27

Grommet

Part# 1-543286

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.23

1-633396

28

Clip, Loom 5/8

Part# 1-633396

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.52

1-513051

29

Switch, Drive Lever N.C.

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

1-303335

30

Plastic Tie, Large

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

1-513374

31

Meter, Engine Hours

Part# 1-513374

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $82.40

1-633111

32

Switch, Brake N.O./N.C

Part# 1-633111

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

103-5218

33

Module, Seat Delay

Part# 103-5218

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.77

103-0206

34

Switch, Ignition W/Keys

Part# 103-0206 (Superseded to 109-4736)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.53

103-2106

35

Key, Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

1-603511

Key, Ignition

Part# 1-603511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

103-5221

36

Switch, Blade

Part# 103-5221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $37.57

3296-2

37

Nut, Nyloc #10-20

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

103-0498

38

Nut, Ignition

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

103-1193

39

Clip, Loom Half

Part# 103-1193

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

3217-6

40

Nut, Hex 5/16-18

Part# 3217-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.02

3296-29

41

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.81

103-5685

42

Asm, Seat Switch Actuator

Part# 103-5685

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $73.22
