LHP5220KC - Exmark 52" Lazer Z HP Zero-Turn Mower, 20hp Kohler (SN: 510000 - 539999) (2005) Deck Group 52" Parts Diagram

52" Lazer Z HP Zero-Turn Mower, 20hp Kohler

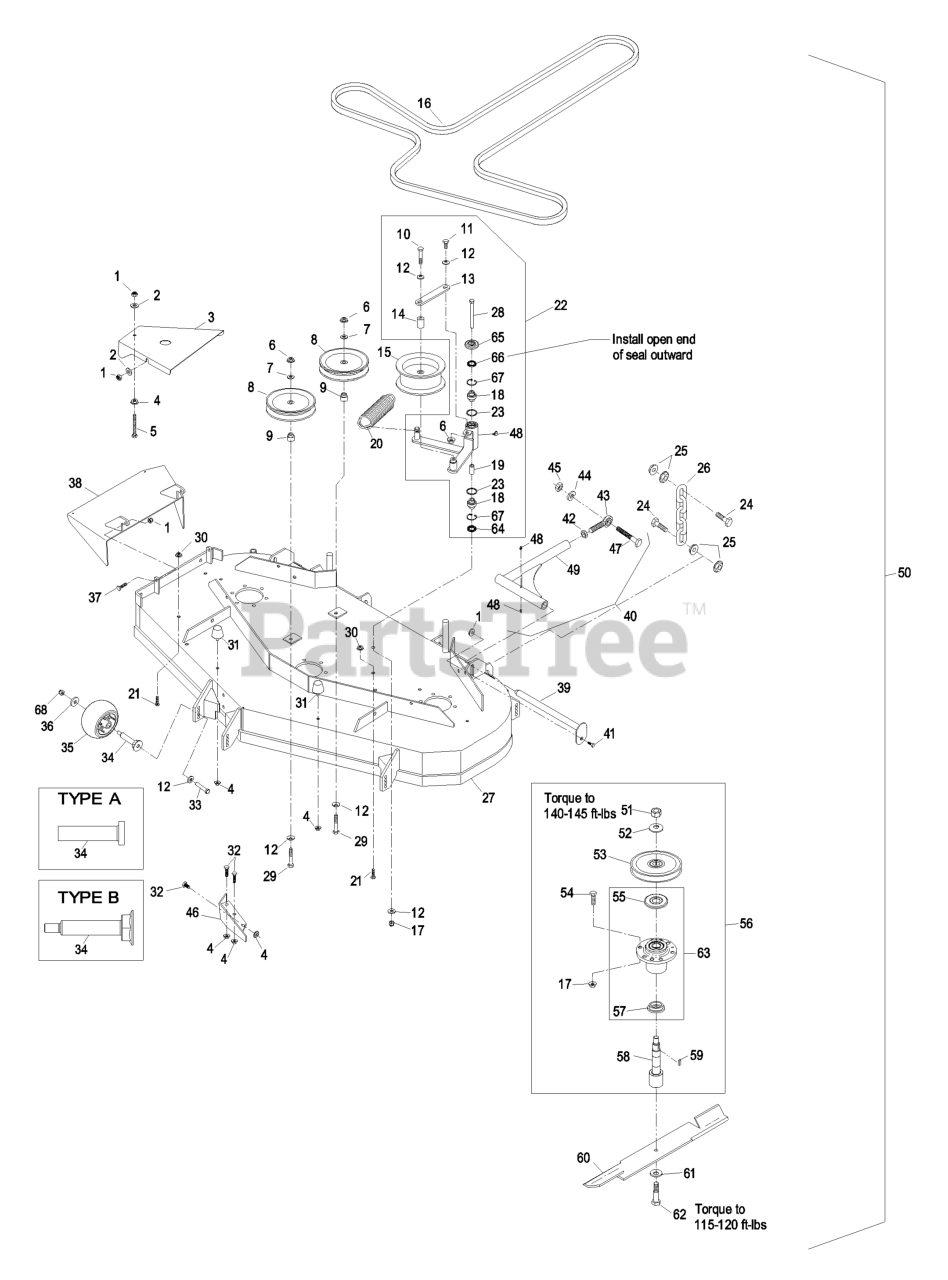

Deck Group 52" Parts Diagram

  • Title

1

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Exmark 103-2970-01

SHIELD,BELT

$40.99

$

In Stock, Qty 5

0

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-800017

BOLT,TAP HH

$7.99

$

In Stock, only 2 left!

0

6

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 20+

0

9

Exmark 1-413113

BUSHING-IDLER

$6.49

$

In Stock, Qty 20+

0

10

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

13

Exmark 103-5668

PLATE,GUIDE BELT (PLTD)

$10.99

$

In Stock, only 3 left!

0

14

Exmark 1-653190

SPACER

$19.99

$

In Stock, only 3 left!

0

15

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$71.99

$

In Stock, Qty 20+

0

16

Exmark 1-653368

BELT,BLADE DRIVE

$163.99

$

In Stock, Qty 7

0

17

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Exmark 103-3504

BEARING-SPHERICAL

$26.99

$

In Stock, Qty 20+

0

19

Exmark 1-603401

SPACER

$7.49

$

In Stock, Qty 20+

0

20

Exmark 103-3330

116-6317
(Superseded to 116-6317)

$29.99

$

In Stock, Qty 20+

0

21

Exmark 321-1

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

22

Exmark 103-5698

KIT,DECK IDLER LHP/LCT

Note: Idler arm assembly also includes items #12 & #17.

$243.99

$

In Stock, Qty 5

0

23

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

24

Exmark 103-1898

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Exmark 32128-37

NUT-HF

$4.99

$

In Stock, Qty 20+

0

26

Exmark 1-633447

CHAIN-LIFT, DECK

$11.99

$

In Stock, Qty 13

0

27

Exmark 1-654478

DISCONTINUED

$

$

Not available

28

Exmark 323-39

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

29

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

30

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-543963

BUMPER-RUBBER

$25.99

$

In Stock, only 2 left!

0

32

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Exmark 98-5961

SCREW-HH

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$5.49

$

In Stock, Qty 20+

0

Exmark 3211-46

SCREW-HH

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$2.99

$

In Stock, Qty 20+

0

34

Exmark 1-603602

BUSHING-ROLLER

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$25.99

$

In Stock, Qty 20+

0

Exmark 103-5364

116-9981
(Superseded to 116-9981)

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$55.99

$

In Stock, Qty 20+

0

35

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-3168 includes antiscalp roller, axle, & mounting hardware for Type A axles. Kit 103-7263 includes antiscalp roller, axle, & mounting hardware for Type B axles.

$25.99

$

In Stock, Qty 20+

0

36

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

37

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 1-652375-01

WLD,DISCHARGE CHUTE

$213.99

$

In Stock, only 1 left!

0

39

Exmark 1-632199-01

PIN-STRUT

$37.99

$

In Stock, Qty 20+

0

40

Exmark 103-1081

STRUT ASM

$292.99

$

In Stock, only 2 left!

0

41

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

42

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

43

Exmark 1-633029

BALLJOINT-SPHERICAL

$69.99

$

In Stock, Qty 20+

0

44

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

45

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

46

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$54.99

$

In Stock, only 2 left!

0

47

Exmark 1-800344

SCREW

$17.99

$

Usually ships in 3-6 days

0

48

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

49

Exmark 103-1072-01

109-1181
(Superseded to 109-1181)

$120.99

$

In Stock, Qty 20+

0

50

Exmark 1-654552

Deck Complete Service

Note: Includes all items shown plus decals.

$

$

Currently unavailable

51

Exmark 3217-46

NUT-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5 ml tube) on nut item #51.

$13.99

$

In Stock, only 2 left!

0

52

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

53

Exmark 1-653386

SHEAVE,6.13 EOD

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$109.99

$

In Stock, only 4 left!

0

54

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

55

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, Qty 20+

0

56

Exmark 103-8319

ASM, CUTTER HSG 52

Note: Complete cutter housings also include items #61 & #62.

$681.99

$

Usually ships in 3-6 days

0

57

Exmark 103-2535

SPACER-GUARD, BOTTOM

$13.99

$

In Stock, Qty 5

0

58

Exmark 103-2787

SPINDLE,LHP

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$166.99

$

Usually ships in 3-6 days

0

59

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 17

0

60

Exmark 103-6584

103-6584-S
(Superseded to 103-6584-S)

$34.99

$

In Stock, Qty 20+

0

Exmark 103-6580

103-6580-S
(Superseded to 103-6580-S)

$36.99

$

In Stock, Qty 13

0

Exmark 103-6582

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK523(52").

$34.99

$

In Stock, Qty 20+

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$39.99

$

In Stock, Qty 13

0

Exmark 103-6337

116-5176-S
(Superseded to 116-5176-S)

$33.99

$

In Stock, Qty 18

0

61

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

62

Exmark 103-0862

SCREW-CAP

$6.49

$

In Stock, Qty 20+

0

63

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$282.99

$

In Stock, Qty 12

0

64

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

65

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 6

0

66

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 7

0

67

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 19

0

68

Exmark 3290-357

NUT-HHF, WHIZ

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$0.99

$

In Stock, Qty 20+

0

Exmark 3296-39

NUT-LOCK, NI

Note: Unit may have been built with Type A or Type B anti scalp axles. Reference illustration to determine which axles are installed on the unit.

$2.99

$

In Stock, Qty 20+

0
