LHPUV4448 - Exmark Ultra Vac Bagger for 44" & 48" Lazer HP Mower (SN: 600000 - 669999) (2006) Deck Components And Front Weights 52" 109-1185 Parts Diagram

Ultra Vac Bagger for 44" & 48" Lazer HP Mower

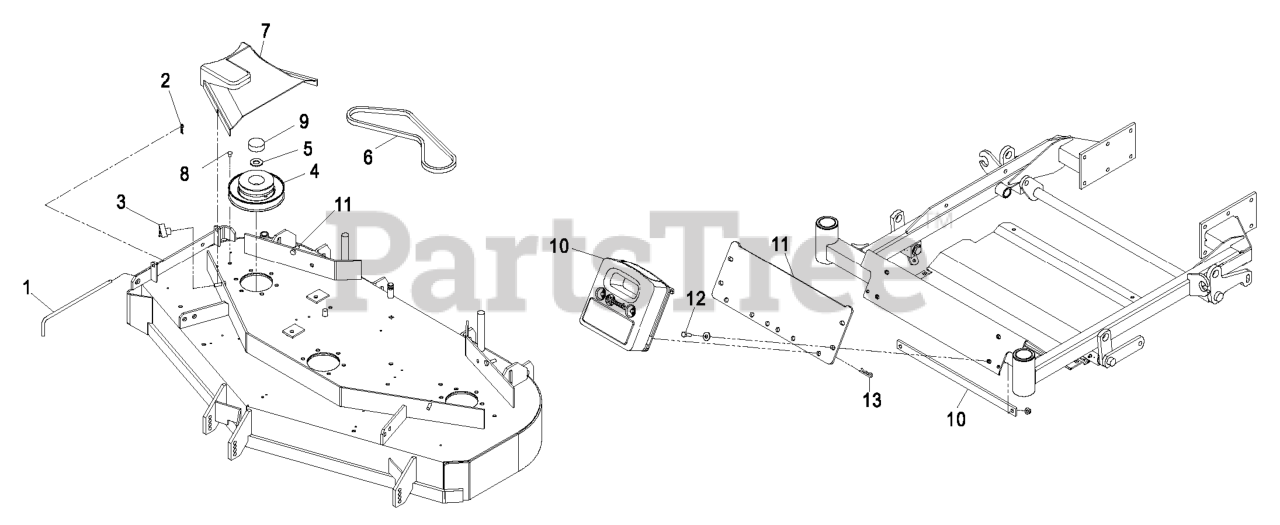

Deck Components And Front Weights 52" 109-1185 Parts Diagram

  • Title
1

Exmark 1-653363

PIN, CHUTE PIVOT PLTD

$8.49

$

Usually ships in 3-6 days

0

2

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

4

Exmark 1-653439

SHEAVE, BLOWER DRIVE 52"

$160.99

$

Usually ships in 3-6 days

0

5

Washer, 5/8 SAE

Note: Not used

$

$

Not available

6

Exmark 1-653438

BELT, BLOWER 52"DECK
(Superseded to 1-653438-SL)

$35.99

$

In Stock, only 2 left!

0

7

Exmark 103-1318

COVER, BELT 52

$197.99

$

Usually ships in 3-6 days

0

8

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$11.99

$

In Stock, only 1 left!

0

10

Strap, Weight Mount

Note: Not used

$

$

Not available

11

Bolt, Carriage 5/16-18 X 1

Note: Not used

$

$

Not available

12

Exmark 103-6363

ASM,CAST WEIGHT

$344.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$76.99

$

Usually ships in 3-6 days

0

14

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Exmark 322-7

SCREW-HH

Note: 52" units with standard weight plate bolted to the front of the floor pan only.

$1.49

$

In Stock, Qty 20+

0

15

Exmark 995124

Hairpin, Cotter

$

$

Currently unavailable

Exmark 109-1185

52" Deck Components And Front Weights

$

$

Currently unavailable
