LHPUVD4448 - Exmark Ultra Vac QDS Bagger for 44" & 48" Lazer HP Mower (SN: 720000 - 789999) (2008) Hood And Screen Assembly Parts Diagram

Ultra Vac QDS Bagger for 44" & 48" Lazer HP Mower

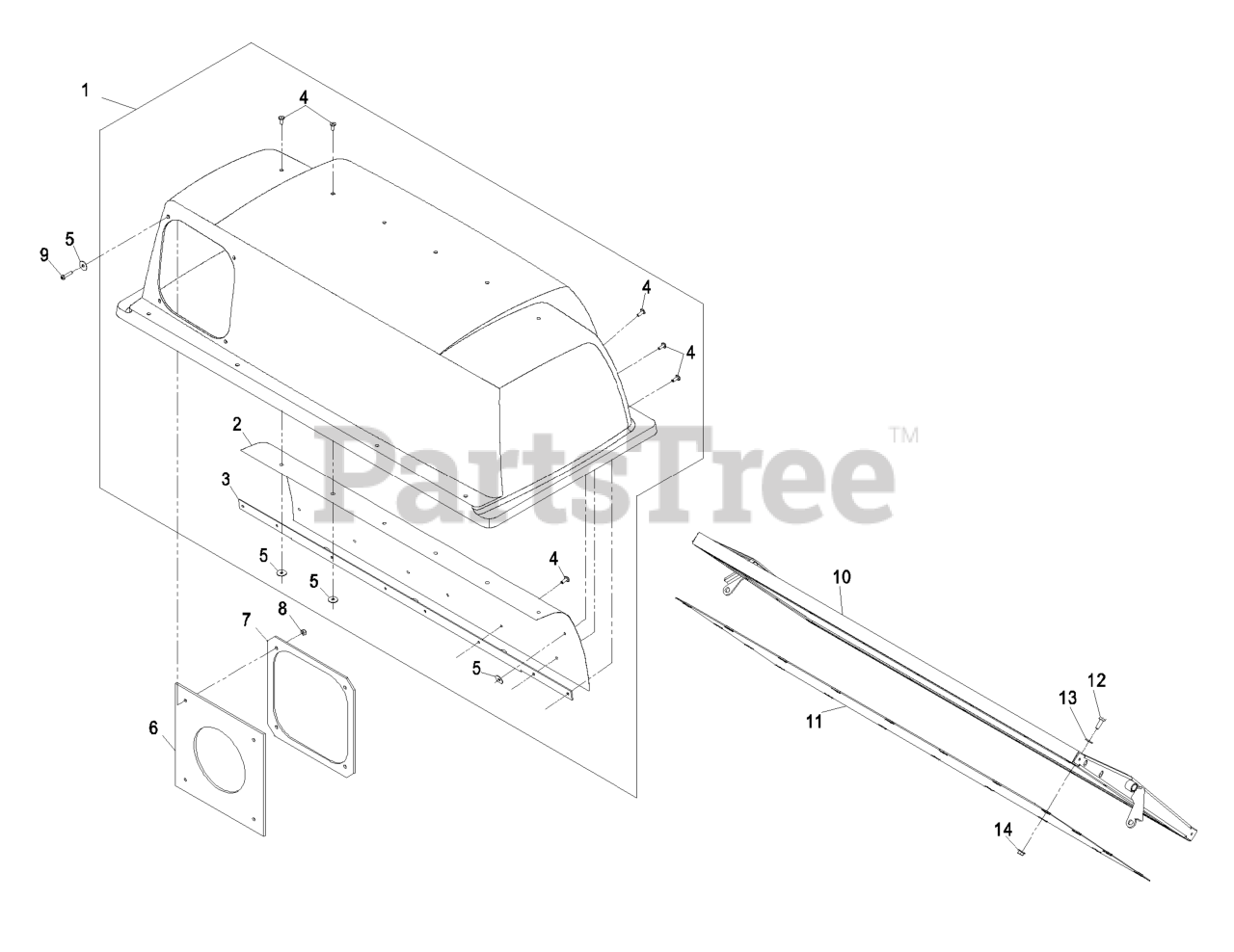

Hood And Screen Assembly Parts Diagram

  • Title

1

Exmark 103-6232

ASM, HOOD

Note: Includes items 2,3,4 and 5 riveted together and Decal.

$553.99

$

Usually ships in 3-6 days

0

2

Exmark 114967

SCREEN-BAGGER

$41.99

$

Usually ships in 3-6 days

0

3

Exmark 103-5101-03

SUPPORT-SCREEN

$41.99

$

Usually ships in 3-6 days

0

4

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 1-653561

SEAL-CHUTE

$20.99

$

In Stock, Qty 6

0

7

Exmark 1-653598-03

CLAMP-SEAL

$85.99

$

Usually ships in 3-6 days

0

8

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, only 1 left!

0

10

Exmark 103-4406-03

DOOR-FRAME

$588.99

$

Usually ships in 3-6 days

0

11

Exmark 103-4828

SCREEN-DOOR

$132.99

$

Usually ships in 3-6 days

0

12

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

14

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0
