LHPUVD4448 - Exmark Ultra Vac QDS Bagger for 44" & 48" Lazer HP Mower (SN: 720000 - 789999) (2008) Hopper Assembly Parts Diagram

Ultra Vac QDS Bagger for 44" & 48" Lazer HP Mower

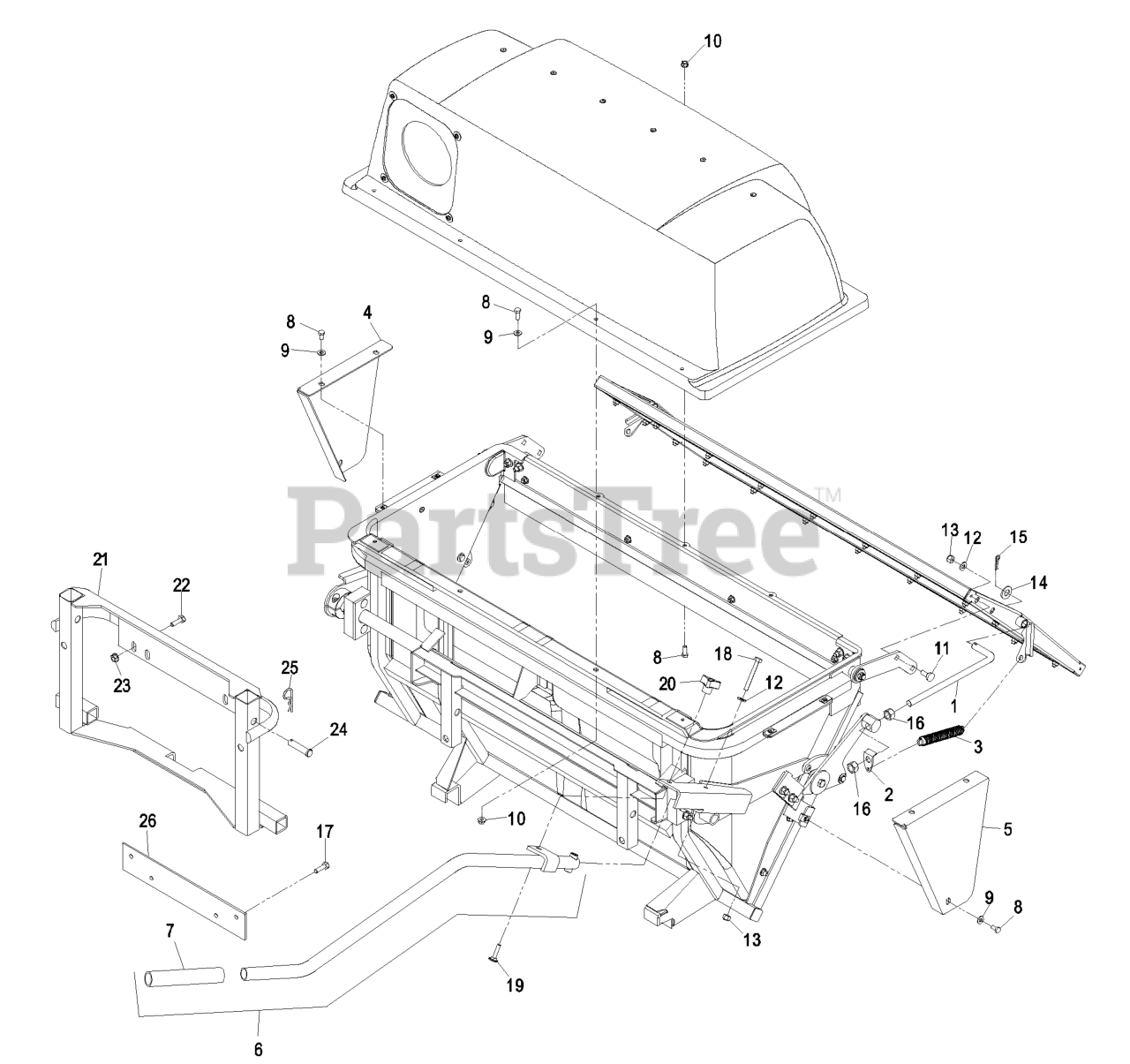

Hopper Assembly Parts Diagram

  • Title

1

Exmark 103-4822

LINK-DOOR

$46.99

$

Usually ships in 3-6 days

0

2

Exmark 103-4835

ANCHOR-SPRING

$33.99

$

Usually ships in 3-6 days

0

3

Exmark 103-4813

SPRING

$6.99

$

Usually ships in 3-6 days

0

4

Exmark 103-4819-03

GUARD-RH

$49.99

$

Usually ships in 3-6 days

0

5

Exmark 103-4437-03

GUARD-LH

$49.99

$

Usually ships in 3-6 days

0

6

Exmark 103-6271

HANDLE ASM

$206.99

$

Usually ships in 3-6 days

0

7

Exmark 103-7115

HANDLE-GRIP

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

11

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

12

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

16

Exmark 3219-5

NUT-HEX

$1.99

$

In Stock, only 1 left!

0

17

Exmark 322-9

SCREW-HH

Note: (52)

$3.99

$

In Stock, Qty 20+

0

18

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 9

0

19

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

21

Exmark 103-4807-03

MOUNT-BAGGER

$511.99

$

Usually ships in 3-6 days

0

22

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-808289

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

25

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

26

Exmark 1-653532-03

SPACER,COUNTERWEIGH

Note: (52 & 56)

$

$

Not available
