LHS-3000 - Lesco Hedge Trimmer (SN: 001001 - 002501) Carburetor Parts Diagram

Hedge Trimmer

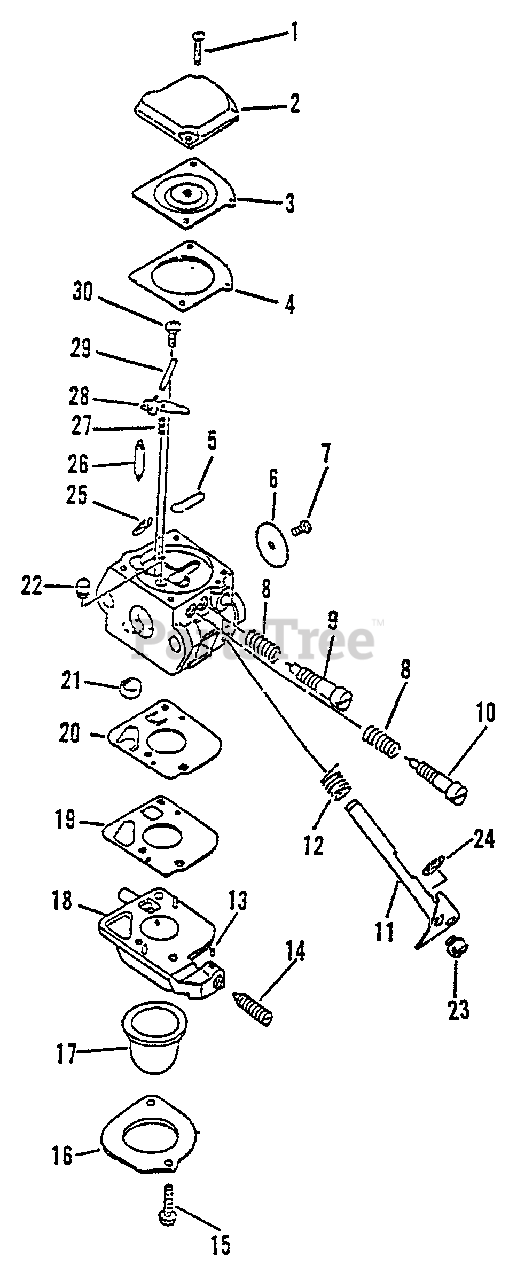

Carburetor Parts Diagram

  • Title

Echo 12520006960

CARBURETOR - C1U-K18
(Superseded to 12520006962)

Note: Includes ITEMS 1-30

$95.99

$

In Stock, only 2 left!

0

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Use Rebuild Kit, P/N 12530006960 & Gasket/Diaphragm Kit, P/N 12530311520

$

$

Not available

4

GASKET, DIAPHRAGM

Note: Use Rebuild Kit, P/N 12530006960 & Gasket/Diaphragm Kit, P/N 12530311520

$

$

Not available

5

PLUG, WELCH

Note: Use Rebuild Kit, P/N 12530006960

$

$

Not available

6

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

7

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

8

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

Usually ships in 2-4 days

0

9

Echo 125318-42030

NEEDLE, LOW SPEED
(Superseded to 12531851330)

$

$

Not available

10

Echo 12532007260

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

11

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

12

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

13

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

14

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

15

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

16

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

17

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

18

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

19

GASKET, PUMP

Note: Use Rebuild Kit, P/N 12530006960 & Gasket/Diaphragm Kit, P/N 12530311520

$

$

Not available

20

DIAPHRAGM, PUMP

Note: Use Rebuild Kit, P/N 12530006960 & Gasket/Diaphragm Kit, P/N 12530311520

$

$

Not available

21

STRAINER

Note: Use Rebuild Kit, P/N 12530006960

$

$

Not available

22

Echo 12537642030

NOZZLE, CHECK VALVE

$5.99

$

In Stock, only 1 left!

0

23

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

24

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

25

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

26

VALVE, NEEDLE

Note: Use Rebuild Kit, P/N 12530006960

$

$

Not available

27

SPRING, METERING LEVER

Note: Use Rebuild Kit, P/N 12530006960

$

$

Not available

28

LEVER, METERING

Note: Use Rebuild Kit, P/N 12530006960

$

$

Not available

29

PIN, METERING LEVER

Note: Use Rebuild Kit, P/N 12530006960

$

$

Not available

30

SCREW

Note: Use Rebuild Kit, P/N 12530006960

$

$

Not available

Echo 12530006960

REBUILD KIT

$22.99

$

Usually ships in 2-4 days

0

Echo 12530311520

DIAPHRAGM/GASKET KIT
(Superseded to 12530351030)

$22.99

$

In Stock, only 3 left!

0
