LHS-3000 - Lesco Hedge Trimmer (SN: 002502 - 999999) Engine, Crankcase, Cover, Starter, Ignition, Clutch Parts Diagram

Hedge Trimmer

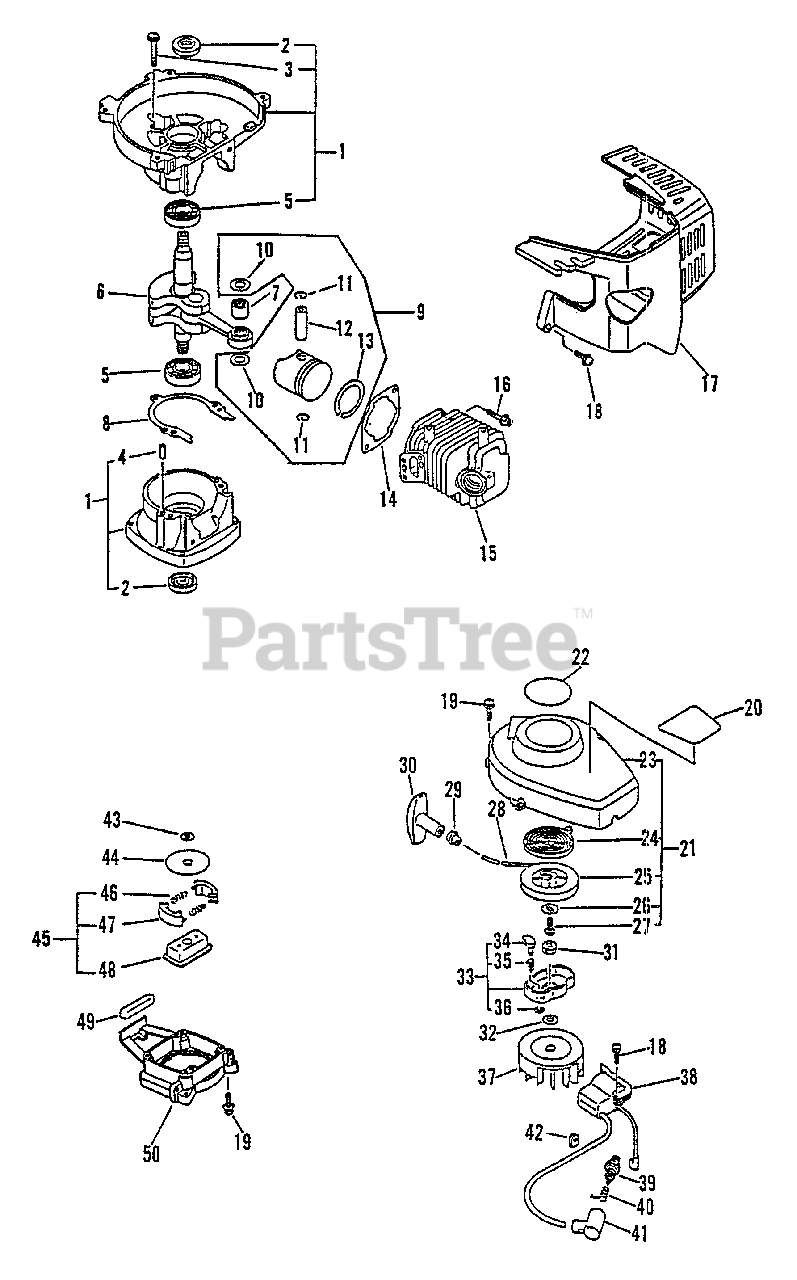

Engine, Crankcase, Cover, Starter, Ignition, Clutch Parts Diagram

  • Title

1

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes Items 2 - 5 & 8

$157.99

$

Usually ships in 2-4 days

0

2

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

3

Echo 90023805028

SCREW 5×28

$0.99

$

Usually ships in 2-4 days

0

4

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

5

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

6

Echo 10010005961

CRANKSHAFT ASSY
(Superseded to 10010005962)

Note: Includes ITEM 7

$

$

Not available

7

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

8

GASKET, CRANKCASE

Note: Use Gasket Kit 88900008460

$

$

Not available

9

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes ITEMS 10-13

$78.99

$

Usually ships in 2-4 days

0

10

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

11

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

12

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

13

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

14

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Use Gasket Kit 88900008460

$4.99

$

In Stock, Qty 7

0

15

Echo 101011-45230

CYLINDER

$153.99

$

Usually ships in 2-4 days

0

16

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

17

Echo 10151405960

COVER, ENGINE
(Superseded to 10151408960)

$

$

Not available

18

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

19

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

20

Echo 89011208860

LABEL, LHS-3000
(Superseded to Discontinued)

$

$

Not available

21

Echo 17720008862

STARTER ASSY
(Superseded to Discontinued)

Note: Includes Items 22 - 30

$

$

Not available

22

Echo 89011507960

LABEL

$

$

Not available

23

Echo 17723208861

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

24

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

25

Echo 17721505960

REEL, ROPE

$15.99

$

In Stock, only 2 left!

0

26

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

Usually ships in 2-4 days

0

27

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

------------------

ROPE, STARTER 3.0×890

Note: RePower BULK OPTION: 99944440000

$

$

Not available

29

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

30

Echo 17722805530

GRIP, STARTER
(Superseded to 17722806530)

$5.99

$

In Stock, Qty 5

0

31

Echo 90051200008

NUT 8

$1.49

$

Usually ships in 2-4 days

0

32

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

33

Echo 17720207360

STARTER PAWL ASSY
(Superseded to 17720207361)

Note: Includes Items 34 - 36

$16.99

$

In Stock, only 2 left!

0

34

Echo 17721842030

PAWL, STARTER

$4.49

$

Usually ships in 2-4 days

0

35

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

36

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

37

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

38

Echo 15660106960

COIL, IGNITION
(Superseded to 15660144730)

$

$

Not available

39

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

40

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

41

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

42

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

43

Echo 17501405360

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

44

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

45

Echo 17500002961

CLUTCH ASSY
(Superseded to 17500002962)

Note: Includes Items 46 - 48

$75.99

$

In Stock, only 2 left!

0

46

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

47

Echo 17500905131

SHOE, CLUTCH

$25.99

$

In Stock, only 2 left!

0

48

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

49

Echo 13192028230

CUSHION, FUEL TANK

$1.49

$

In Stock, only 1 left!

0

50

Echo 61022305960

CASE, CLUTCH

$58.99

$

Usually ships in 2-4 days

0

Echo SB1004

SHORT BLOCK - SB1004
(Superseded to SB1022)

$

$

Not available

Echo 88900008460

GASKET KIT

$22.99

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0
