LHS-3000 - Lesco Hedge Trimmer (SN: 002502 - 999999) Gear Case Assy, Blades, Tools Parts Diagram

Hedge Trimmer

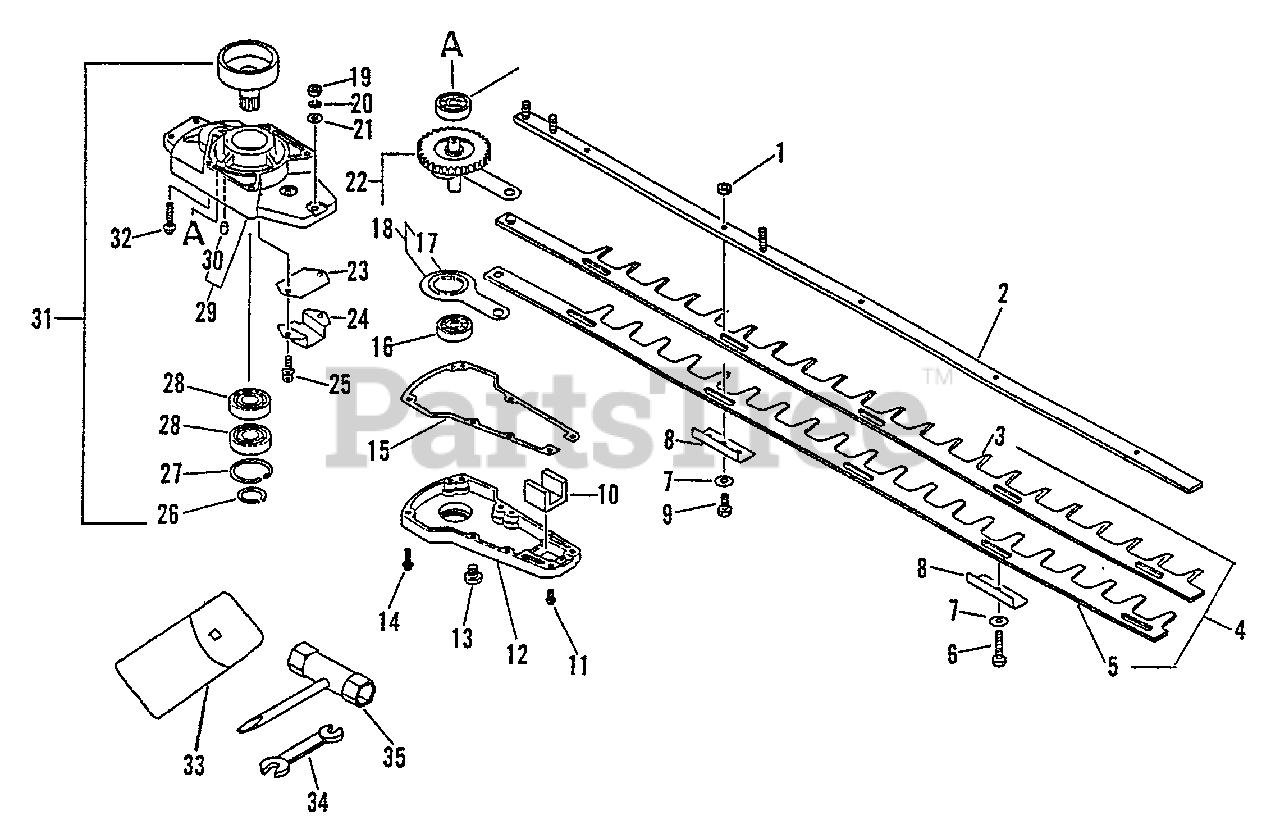

Gear Case Assy, Blades, Tools Parts Diagram

  • Title

1

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 20+

0

2

Echo 69910502061

BAR, FRAME
(Superseded to X425000100)

$45.99

$

Usually ships in 2-4 days

0

3

Echo 69701002060

BLADE - UPPER
(Superseded to 69701002960)

$71.99

$

Usually ships in 2-4 days

0

4

Echo 69700002060

TRIMMER BLADE SET

Note: Includes Items 3 & 5

$133.99

$

Usually ships in 2-4 days

0

5

Echo 69701102060

BLADE - LOWER
(Superseded to 69701102960)

$74.99

$

Usually ships in 2-4 days

0

6

Echo 35102702060

BOLT 6×40

$7.99

$

Usually ships in 2-4 days

0

7

Echo 69911801261

WASHER

$0.99

$

Usually ships in 2-4 days

0

8

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

$5.99

$

In Stock, only 2 left!

0

9

Echo 69911502062

BOLT 6×22

$5.99

$

Usually ships in 2-4 days

0

10

Echo 61042601260

SEAL

$3.49

$

In Stock, only 1 left!

0

11

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

12

Echo 61041105960

LID, GEAR CASE
(Superseded to 61041105961)

$52.99

$

Usually ships in 2-4 days

0

13

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

14

Echo 90024204022

SCREW 4×22

$0.99

$

In Stock, Qty 8

0

15

Echo 61041401260

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 11

0

16

Echo 90081006200

BEARING, BALL 6200

$12.99

$

In Stock, only 1 left!

0

17

Echo 61032701260

BEARING, NEEDLE
(Superseded to 61032701261)

$23.99

$

In Stock, Qty 9

0

18

Echo 61030701260

CONNECTING ROD ASSY
(Superseded to 61030701261)

$

$

Not available

19

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 14

0

21

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

22

Echo 61030201260

GEAR ASSY
(Superseded to 61030201261)

Note: Includes ITEMS 17-18

$

$

Not available

23

Echo 61044001260

GUIDE
(Superseded to Discontinued)

$

$

Not available

24

Echo 61044102060

GUIDE
(Superseded to Discontinued)

$

$

Not available

25

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

26

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

27

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

28

Echo 90080206003

BEARING, BALL 6003

$20.99

$

Usually ships in 2-4 days

0

29

Echo 61041005960

CASE, GEAR

Note: Includes Item 30

$85.99

$

Usually ships in 2-4 days

0

30

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

31

Echo 17500301261

DRUM, CLUTCH

Note: Includes ITEM 26

$98.99

$

Usually ships in 2-4 days

0

32

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

33

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, only 3 left!

0

34

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

35

Echo 89541000431

WRENCH 14×19 W/S.DRIVER
(Superseded to 89541006961)

$4.49

$

In Stock, only 2 left!

0
