Lesco LHS-3000 - Lesco Hedge Trimmer (SN: 002502 - 999999) Handles, Ignition Switch, Throttle Parts Lookup with Diagrams

1

Echo 16340105960

IGNITION SWITCH ASSY

(Superseded to Discontinued) 

$

Not available 

2

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

3

Echo 17801246930

LOCKOUT, TRIGGER

(Superseded to Discontinued) 

$

Not available 

4

Echo 17801046930

TRIGGER, THROTTLE

$5.49

$

Usually ships in 2-4 days

5

Echo 35120002060

BRACKET ASSY

Note: Includes ITEM 8

$65.99

$

Usually ships in 2-4 days

6

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 20+

7

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

8

Echo 35101201260

GRIP

$8.99

$

Usually ships in 2-4 days

9

Echo 351102-47530

CONTROL HANDLE KIT

Note: Includes ITEMS 10-12

$41.99

$

In Stock, only 2 left!

10

Echo 900246-03025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

11

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

12

Echo 900500-00005

NUT M5

(Superseded to 90050000005) 

$0.99

$

In Stock, Qty 20+

13

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

14

Echo 35124301260

BRACKET

$3.49

$

Usually ships in 2-4 days

15

Echo 35122801260

CUSHION

$4.99

$

Usually ships in 2-4 days

16

Echo 35124101260

SPACER

(Superseded to 35124101261) 

$3.49

$

In Stock, Qty 16

17

Echo 35121705960

BRACKET, HANDLE

$10.99

$

Usually ships in 2-4 days

18

Echo 35124201261

PLATE

$3.49

$

Usually ships in 2-4 days

19

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, only 3 left!

20

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

21

Echo 61043801260

PLATE

$5.99

$

Usually ships in 2-4 days

22

Echo 35120508961

HANDLE, REAR

$52.99

$

Usually ships in 2-4 days

23

Echo 90023805010

SCREW 5×10

$0.99

$

In Stock, Qty 13

24

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

25

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

26

Echo 17800105960

CABLE, THROTTLE

$23.99

$

Usually ships in 2-4 days

27

Echo 17812705960

PIPE

$2.99

$

Usually ships in 2-4 days

28

Echo 17812110050

TIE, CABLE

$0.99

$

In Stock, Qty 6

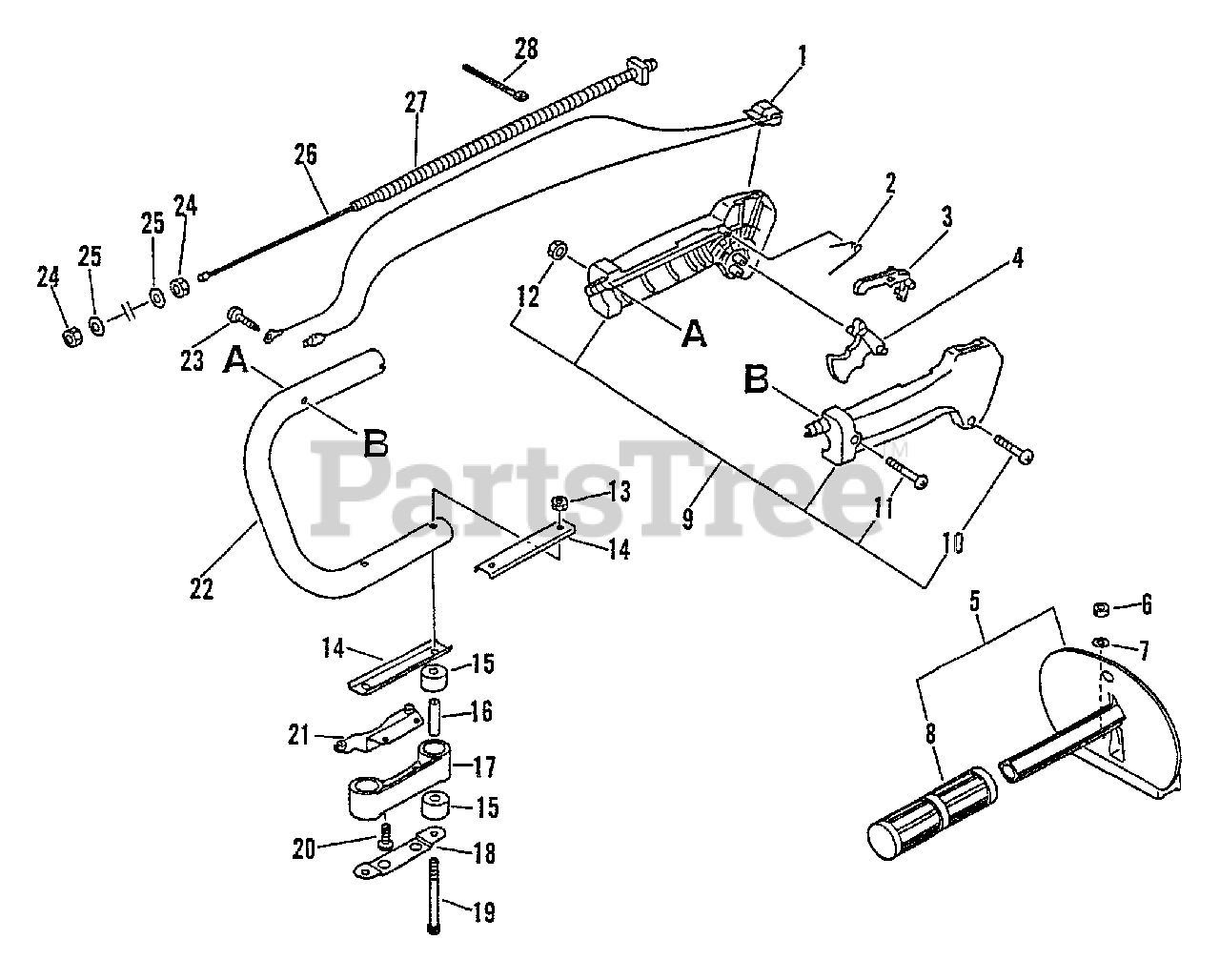

LHS-3000 - Lesco Hedge Trimmer (SN: 002502 - 999999) Handles, Ignition Switch, Throttle Parts Diagram

Handles, Ignition Switch, Throttle Parts Diagram

Echo 16340105960

Echo 178013-35631

Echo 17801246930

Echo 17801046930

Echo 35120002060

Echo 90056000006

Echo 90060300006

Echo 35101201260

Echo 351102-47530

Echo 900246-03025

Echo 900220-05030

Echo 900500-00005

Echo 90056000005

Echo 35124301260

Echo 35122801260

Echo 35124101260

Echo 35121705960

Echo 35124201261

Echo 90010505060

Echo 900242-05016

Echo 61043801260

Echo 35120508961

Echo 90023805010

Echo 900502-00006

Echo 90060000006

Echo 17800105960

Echo 17812705960

Echo 17812110050
