LHS-3000 - Lesco Hedge Trimmer (SN: 002502 - 999999) Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

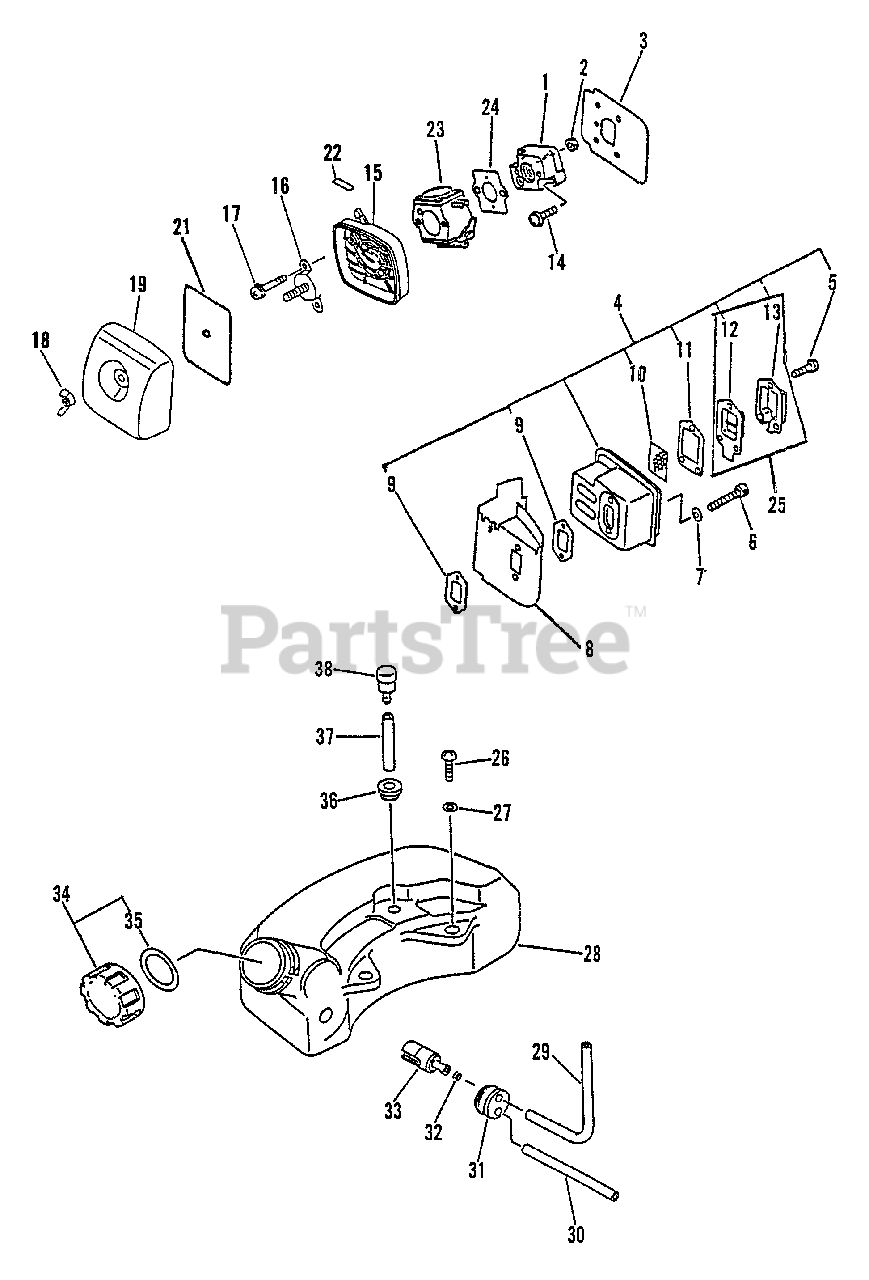

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

4

Echo 14580005960

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes Items 5, 9-13

$55.99

$

In Stock, only 1 left!

0

5

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

6

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

9

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

10

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

11

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

12

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

13

Echo 14586306960

GUIDE, EXHAUST - INNER
(Superseded to 14586311520)

$5.49

$

Usually ships in 2-4 days

0

14

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

15

Echo 13030706761

CASE ASSY, AIR FILTER
(Superseded to 13030706960)

Note: When Replacing Original Air Cleaner Case On Units S/N 002502 Thru 004000 With 13030706761, Also Order (2) 90024205065 Screw For Proper Retention.

$23.99

$

In Stock, only 2 left!

0

16

Echo 12901105060

PLATE, PREVENT

$6.99

$

In Stock, Qty 7

0

17

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

18

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

19

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

21

Echo 13031006560

FILTER, AIR

$4.99

$

In Stock, Qty 11

0

22

Echo 89012105360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

23

Echo 12520006960

CARBURETOR - C1U-K18
(Superseded to 12520006962)

$95.99

$

In Stock, only 2 left!

0

24

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

25

Echo 145809-42030

GUIDE, EXHAUST - INNER

Note: Includes ITEMS 12-13

$8.99

$

Usually ships in 2-4 days

0

26

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

27

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

28

Echo 13100208960

TANK, FUEL
(Superseded to 13100208961)

$

$

Not available

29

Echo 13201002160

PIPE, FUEL

$6.99

$

In Stock, only 2 left!

0

30

Echo 13201006460

PIPE, FUEL RETURN 3×6×110

Note: RePower BULK OPTION: 90017

$3.99

$

In Stock, Qty 12

0

31

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

32

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

33

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

34

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 35

$

$

Not available

35

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

36

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

37

Echo 13201021160

PIPE, FUEL
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

38

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7
