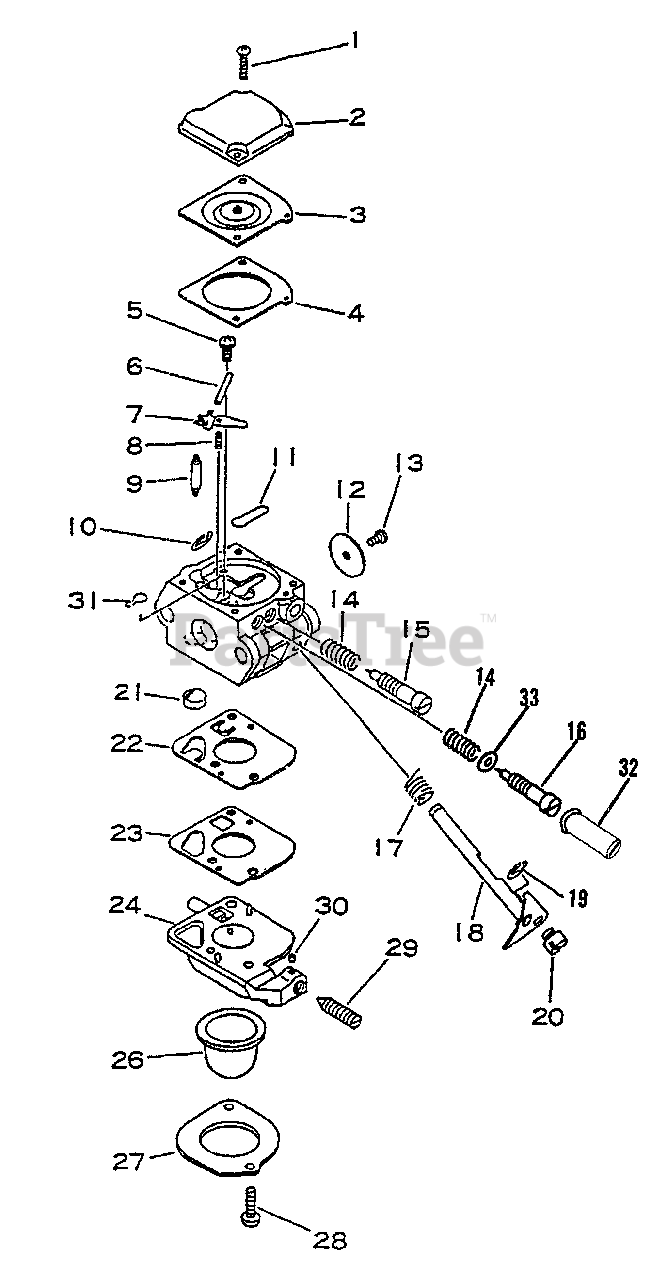

  • Title

Echo 12520008962

CARBURETOR - C1U-K31A
(Superseded to 12520008963)

Note: Includes ITEMS 1-33

$

$

Not available

1

Echo 125344-52130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 12534252130

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Use Gasket/Diaphragm Kit, P/N 12530311520 & Rebuild Kit, P/N 12530008960

$

$

Not available

4

GASKET, DIAPHRAGM

Note: Use Gasket/Diaphragm Kit, P/N 12530311520 & Rebuild Kit, P/N 12530008960

$

$

Not available

5

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

6

PIN, METERING LEVER

Note: Use Rebuild Kit, P/N 12530008960

$

$

Not available

7

LEVER, METERING

Note: Use Rebuild Kit, P/N 12530008960

$

$

Not available

8

SPRING

Note: Use Rebuild Kit, P/N 12530008960

$

$

Not available

9

VALVE, NEEDLE

Note: Use Rebuild Kit, P/N 12530008960

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

PLUG, WELCH

Note: Use Rebuild Kit, P/N 12530008960

$

$

Not available

12

Echo 12531607260

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

13

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12531808960

NEEDLE, IDLE

$3.99

$

Usually ships in 2-4 days

0

16

Echo 12532007760

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

17

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

18

Echo 12531711820

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

19

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

20

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

21

STRAINER

Note: Use Rebuild Kit, P/N 12530008960

$

$

Not available

22

DIAPHRAGM, PUMP

Note: Use Gasket/Diaphragm Kit, P/N 12530311520 & Rebuild Kit, P/N 12530008960

$

$

Not available

23

GASKET, PUMP

Note: Use Gasket/Diaphragm Kit, P/N 12530311520 & Rebuild Kit, P/N 12530008960

$

$

Not available

24

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

26

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

27

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

28

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

PLUG, WELCH

Note: Use Rebuild Kit, P/N 12530008960

$

$

Not available

32

Echo 12532908960

CAP, LIMITER

$1.99

$

Usually ships in 2-4 days

0

33

Echo 12535307760

WASHER

$0.99

$

In Stock, only 1 left!

0

Echo 12530311520

DIAPHRAGM/GASKET KIT
(Superseded to 12530351030)

$22.99

$

In Stock, only 3 left!

0

Echo 12530008960

REPAIR KIT
(Superseded to 12530051030)

$34.99

$

In Stock, only 2 left!

0
