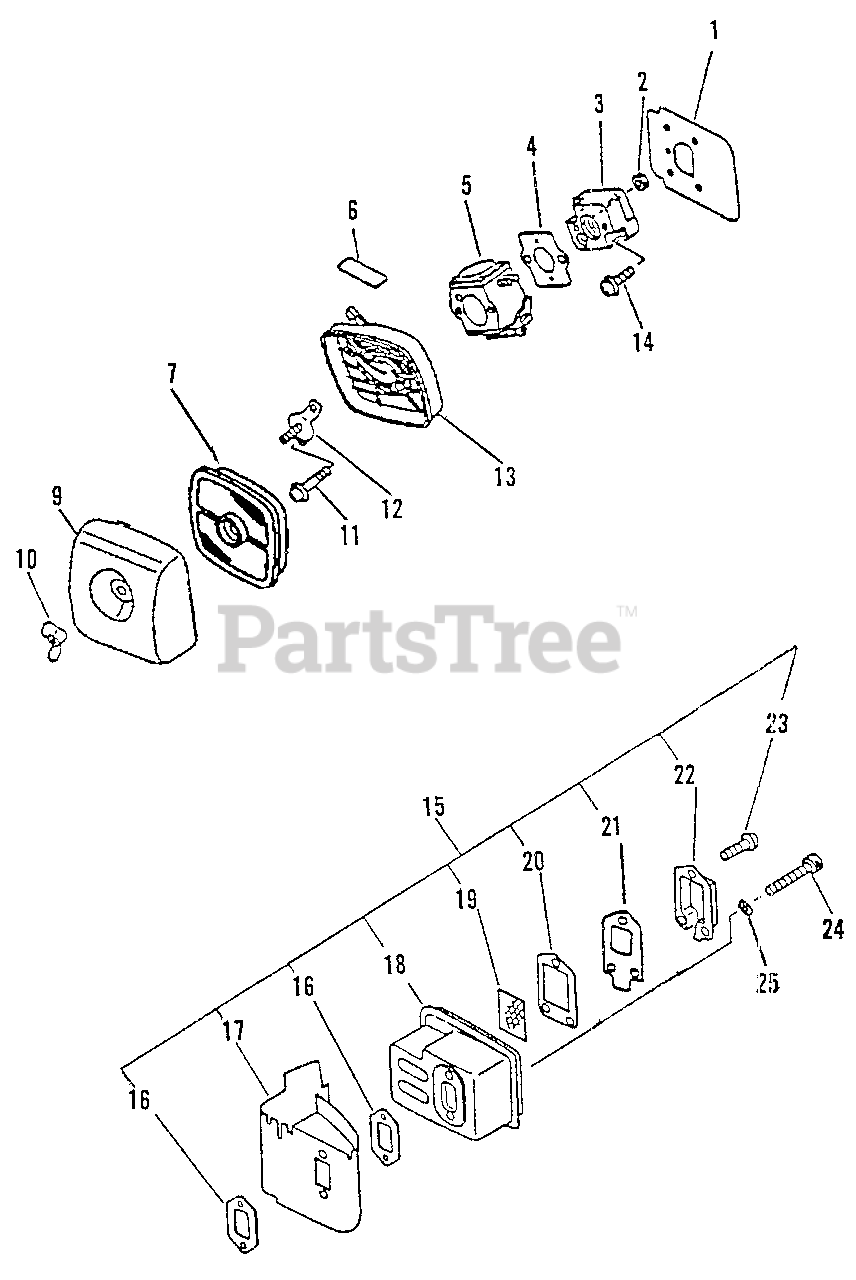

LHS-4050 - Lesco Hedge Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 10

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

4

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

5

Echo 12520008962

CARBURETOR - C1U-K31A
(Superseded to 12520008963)

$

$

Not available

6

Echo 89012105360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

7

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

9

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

10

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

11

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

12

Echo 12901112620

PLATE, PREVENT

$8.99

$

Usually ships in 2-4 days

0

13

Echo 13030706761

CASE ASSY, AIR FILTER
(Superseded to 13030706960)

$23.99

$

In Stock, only 2 left!

0

14

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

15

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes ITEMS 16-23

$55.99

$

In Stock, only 1 left!

0

16

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

17

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$5.99

$

In Stock, only 2 left!

0

18

Echo 145806-42030

MUFFLER

$55.99

$

In Stock, only 1 left!

0

19

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

20

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

21

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

22

Echo 14586306960

GUIDE, EXHAUST - INNER
(Superseded to 14586311520)

$5.49

$

Usually ships in 2-4 days

0

23

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

24

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

25

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0
