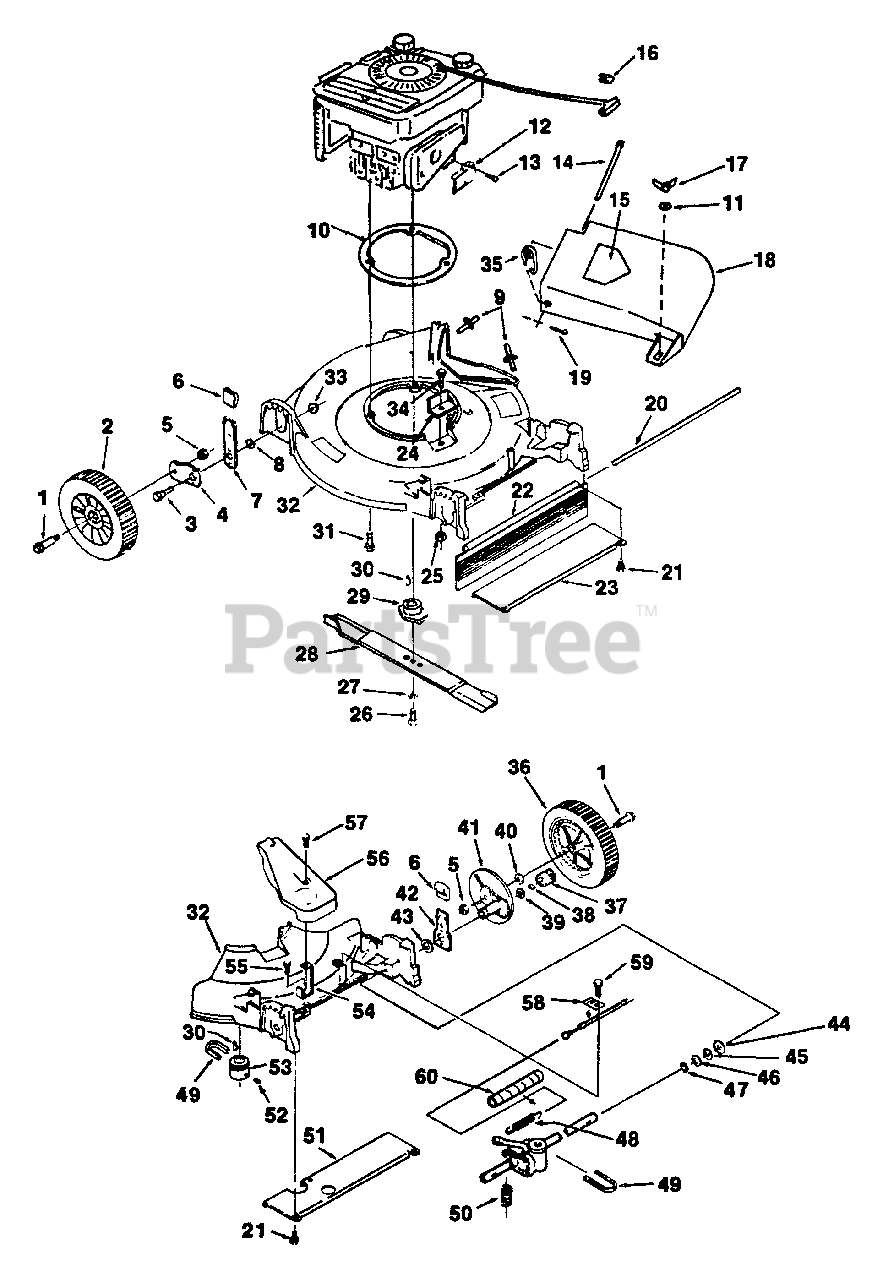

LM-204 P - Echo Walk-Behind Lawn Mower Deck, Wheels, Front, Discharge Chute, Blade, Drv Sys, Wheels, Rear Parts Diagram

Walk-Behind Lawn Mower

Deck, Wheels, Front, Discharge Chute, Blade, Drv Sys, Wheels, Rear Parts Diagram

  • Title

1

Echo 700992138

AXLE ASSY
(Superseded to Discontinued)

Note: Includes ITEM 5

$

$

Not available

2

Echo 700993958

WHEEL ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 700359180

BOLT - 5/16 X 18
(Superseded to Discontinued)

$

$

Not available

4

Echo 700991287

ARM - WHEEL ADJUSTING

$18.99

$

Usually ships in 2-4 days

0

5

Echo 700444850

NUT - 3/8-24
(Superseded to Discontinued)

$

$

Not available

6

Echo 700336623

KNOB
(Superseded to Discontinued)

$

$

Not available

7

Echo 700990087

INDEXING ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 700358362

SPACER
(Superseded to Discontinued)

$

$

Not available

9

Echo 700992964

STUD
(Superseded to Discontinued)

$

$

Not available

10

Echo 700994311

RING - Engine
(Superseded to Discontinued)

$

$

Not available

11

Echo 700453023

WASHER - 1/4"
(Superseded to Discontinued)

$

$

Not available

12

Echo 700359256

DEFLECTOR
(Superseded to Discontinued)

$

$

Not available

13

Echo 700408880

SCREW - 8-32 X 3/8"
(Superseded to Discontinued)

$

$

Not available

14

Echo 700992958

PIN - HINGE
(Superseded to Discontinued)

$

$

Not available

15

Echo 700339460

LABEL - WARNING
(Superseded to Discontinued)

$

$

Not available

16

Echo 700990567

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

17

Echo 700992974

WINGNUT
(Superseded to Discontinued)

$

$

Not available

18

Echo 700992998

DISCHARGE COVER
(Superseded to Discontinued)

Note: Includes ITEM 15

$

$

Not available

19

Echo 700460014

PIN, SPLIT
(Superseded to Discontinued)

$

$

Not available

20

Echo 700375391

ROD
(Superseded to Discontinued)

$

$

Not available

21

Echo 700408878

SCREW - 1/4-20 X 3/4"
(Superseded to Discontinued)

$

$

Not available

22

Echo 700339238

FLAP - Drag

$13.99

$

Usually ships in 2-4 days

0

23

Echo 700994308

COVER - REAR
(Superseded to Discontinued)

Note: NOT USED ON THIS MODEL

$

$

Not available

24

Echo 700991286

COVER, BELT
(Superseded to Discontinued)

Note: NOT USED ON THIS MODEL

$

$

Not available

25

Echo 700444708

LOCKNUT - 1/4-20
(Superseded to Discontinued)

Note: NOT USED ON THIS MODEL

$

$

Not available

26

Echo 700403753

SCREW - .375 X 1.2" -- HEX CAP
(Superseded to Discontinued)

$

$

Not available

27

Echo 700446142

LOCKWASHER - 3/8"
(Superseded to Discontinued)

$

$

Not available

28

Echo 700392422

BLADE, MOWER

$

$

Currently unavailable

29

Echo 700991821

ADAPTOR

$16.99

$

Usually ships in 2-4 days

0

30

Echo 700463029

KEY
(Superseded to Discontinued)

$

$

Not available

31

Echo 700408876

SCREW - 3/8-16 X 1 1/2"
(Superseded to Discontinued)

$

$

Not available

32

Echo 700994315

DECK
(Superseded to Discontinued)

Note: Includes ITEMS 9, 58, 59

$

$

Not available

33

Echo 700445775

NUT - 5/16-18 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

34

Echo 700400104

SCREW - 1/4-20 x 1/2"
(Superseded to Discontinued)

Note: NOT USED ON THIS MODEL

$

$

Not available

35

Echo 700375276

SPRING
(Superseded to Discontinued)

$

$

Not available

36

Echo 700993975

WHEEL ASSY
(Superseded to Discontinued)

$

$

Not available

37

Echo 700204244

PINION - RIGHT HAND
(Superseded to Discontinued)

$

$

Not available

38

Echo 700313659

PAWL
(Superseded to Discontinued)

$

$

Not available

39

Echo 700351077

WASHER
(Superseded to Discontinued)

$

$

Not available

40

Echo 700359500

WASHER

$1.49

$

Usually ships in 2-4 days

0

41

Echo 700990074

DRIVE WHEEL SUPPORT ASSY
(Superseded to Discontinued)

$

$

Not available

42

Echo 700991288

INDEXING ASSY
(Superseded to Discontinued)

$

$

Not available

43

Echo 700359141

SPACER
(Superseded to Discontinued)

$

$

Not available

44

Echo 700454037

WASHER
(Superseded to Discontinued)

$

$

Not available

45

Echo 700353406

WASHER
(Superseded to Discontinued)

$

$

Not available

46

Echo 700328147

WASHER
(Superseded to Discontinued)

$

$

Not available

47

Echo 700458451

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

48

Echo 700375748

SPRING
(Superseded to Discontinued)

$

$

Not available

49

Echo 700390165

BELT, DRIVE
(Superseded to Discontinued)

$

$

Not available

50

Echo 700359266

SPRING
(Superseded to Discontinued)

$

$

Not available

51

Echo 700994309

COVER - REAR
(Superseded to Discontinued)

$

$

Not available

52

Echo 700422505

SCREW - 1/4-20 X 3/8"
(Superseded to Discontinued)

$

$

Not available

53

Echo 700993007

PULLEY - Drive
(Superseded to Discontinued)

$

$

Not available

54

Echo 700375400

BRACKET
(Superseded to Discontinued)

$

$

Not available

55

Echo 700408865

SCREW - 1/4-20 X 9/16"
(Superseded to Discontinued)

$

$

Not available

56

Echo 700994312

COVER - DRIVE
(Superseded to Discontinued)

$

$

Not available

57

Echo 700408879

SCREW - 1/4-20 X 3/4"
(Superseded to Discontinued)

$

$

Not available

58

Echo 700991065

CLAMP
(Superseded to Discontinued)

$

$

Not available

59

Echo 700409908

SCREW - 1/4-20 X 5/8"
(Superseded to Discontinued)

$

$

Not available

60

Echo 700990641

COVER - Spring
(Superseded to Discontinued)

$

$

Not available

------------------

ENGINE

Note: For replacement of engine model 100708, Type 3111-01, see your local Briggs & Stratton dealer

$

$

Not available
